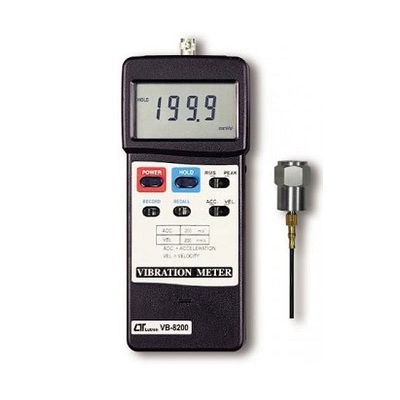

Vibration Meter LUTRON VB8200

Ada Stock

Jual Vibration Meter LUTRON VB8200 barang asli, harga termurah hanya di alatproyek.com

Untuk harga terbaik dan ketersediaan stock hubungi sales@alatproyek.com atau 021-29986622, 081808090252

Rp 5.800.000,00

Fitur Vibration Meter LUTRON VB8200:

  • Separate professional vibration sensor.
  • Velocity : 200 mm/s.
  • Acceleration : 200 m/s2.
  • RMS, Peak, RS232, Hold, Record ( Max., Min.).
Spesifikasi Detail Vibration Meter LUTRON VB8200
Country of OriginTaiwan
DimensionMeter : 180 x 72 x 32 mm ( 7.1 x 2.8 x1.3 inch ).
Vibration sensor probe: Round 19 mm Dia. x 21 mm.
Display61 mm x 34 mm supper large LCD display. 15 mm ( 0.6" ) digit size.
MeasurementVelocity, Acceleration RMS value, Peak value Data hold, Max. & Min. value.
RangeVelocity : 200 mm/s : 0.5 to 199,9 mm/s.
Acceleration : 200 m/S^2 : 0.5 to 199.9 m/s^2.
Frequency range10 Hz to 1 KHz.
Accuracy± ( 5 % + 2 d ) reading
Calibration pointVelocity : 50 mm/s ( 160 Hz )
Acceleration : 50 m/s^2( 160 Hz )
CircuitExclusive microcomputer circuit.
Data holdFreeze the desired reading.
Peak holdTo measure the peak value.
MemoryMaximum & Minimum value.
Power offAuto shut off, saves battery life, or manual off by push button.
Sampling timeApprox. 1 second.
Data outputRS 232 serial output, isolate.
Operating temperature0C to 50C ( 32F to 122F ).
Operating humidityLess than 80% RH.
Power supplyAlkaline or heavy duty type DC 9V battery, 006P, MN1604 (PP3) or equivalent.
Power consump.Approx. DC 6 mA.
WeightMeter : 230 g/0.50 LB.
Probe : 38 g/0.09 LB.
Accessories includedInstruction manual........... 1 PC.
Vibration sensor................1 PC.
Magnetic base...................1 PC.
Carrying Case.................. 1 PC.
Optional accessories* Software ( Windows version, data record & data acquisition )......SW-U801-WIN
* RS232 cable......UPCB-01
* USB cable.........USB-01
