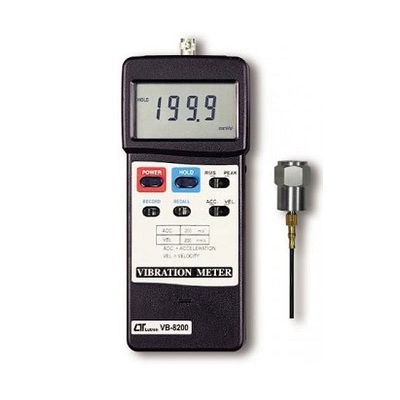

Vibration Meter Lutron VB8200

Description

Deskripsi Produk Vibration Meter Lutron VB8200

Vibration Meter Lutron VB8200

Spesifikasi :

• Measurement Velocity, Acceleration
• RMS value, Peak value Data hold, Max. & Min. value. Operating humidity Less than 80% RH.
• Range
• Velocity : 200 mm/s : 0.5 to 199,9 mm/s.
• Acceleration : 200 m/S^2 : 0.5 to 199.9 m/s^2.
• Power supply DC 9V battery, 006P,
• Frequency range 10 Hz to 1 KHz.
• * Sensitivity relativive during the
• Probe 38 g/0.09 LB
• the frequency range meet ISO 2954.
• Dimension Meter : 180 x 72 x 32 mm
• Accuracy ( 5 % + 2 d ) reading ,
• @ 160 Hz, 80 Hz. @ 23 5
• Vibration sensor probe: Round 19 mm Dia. x 21 mm.
• Calibration point Velocity : 50 mm/s ( 160 Hz ) Acceleration : 50 m/s^2( 160 Hz )
