Description
Deskripsi Produk Thickness Gage Advance 1.2-225mm Krisbow KW0600410

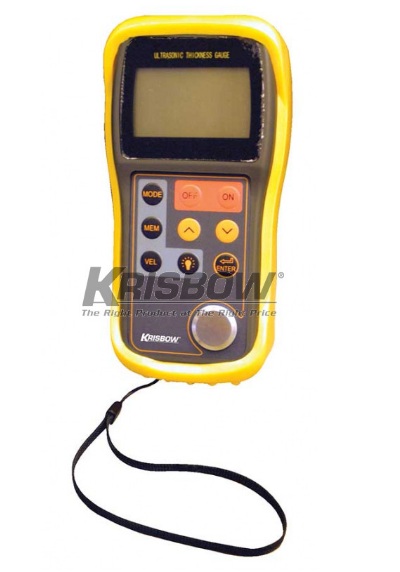

Thickness Gage Advance 1.2-225mm Krisbow KW0600410
Fitur :
- Advanced handheld ultrasonic thickness gauge.
- Suitable for most metallic and non-metallic materials ultrasonic can go through. Auto-calibration of zero point, correction of system error.
- Display current thickness of minimum thickness (menu selectable). Upper-lower limits setting and sound alarm.
- Memory of 500 readings.
- Two points calibration for high accuracy.
- D is play resolution 0.1mm/0.01mm selectable.
- Display in mm or in ch.
- Large LCD display with adjustable backlight.
- Low battery indicator.
- Equipped with RS232 interface for c onnecting with printer and PC with optional software, 5Pdia. 10 transducer for normal puprose and optional transducer for casting iron.
|
Spesifikasi :
- KW0600410
- Digital Utrasonic Thickness gauge
- Measuring Ra ng e : 0.75 ~ 300.0 mm / 0.03 ~ 11.8 IN (can be changed depends on Pro be & Material)
- Lower limit for Steel Pipes (mm) : 5Mhz probe (dia. 20x3mm/dia. 8×0.12IN) ; 10 Mhz probe (dia. 15mmx3mm/dia. 0.6×0.08IN)
- Display Resolution 0.1/0.01
- Calibration (mm) 4. 0mm steel base integrated
- Measurement Accuracy (mm) ±1%H + 0 .1 (H means the thickness of tested piece)
- Measuring Units mm/inch
- S ound Velocity Range : 1000 ~ 9999 m/s ; 0.039 ~ 0.394 IN/ms
- Disp lay 4-Digital LCD with backlight
- Memory Sto rage 0f 10 thicknes s readings
- Surface Temperature ( deg. C) -10 to 60
- Ba ttery Indicator Low battery voltage indicat or
- Power Supply (V ) 2 pcs. AA batteries 1.5
- Batter y Life (h) 100 without backlight
- Dimension (mm) 152x74x35
- Weight (g) 370
|
Thickness Gage Advance 1.2-225mm Krisbow KW0600410
