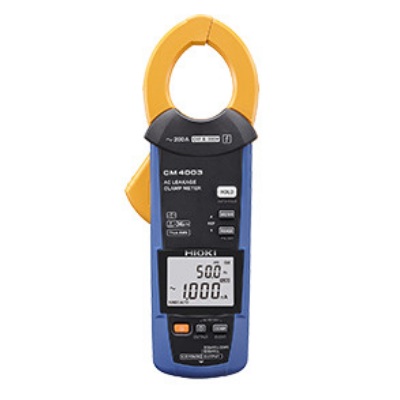

Tang Ampere AC Leakage Clamp Meter Hioki CM4003
Rp 9.501.492,00
In stock
SKU
CM4003
Spesifikasi Produk Tang Ampere AC Leakage Clamp Meter Hioki CM4003
SKU : CM4003
Tang Ampere AC Leakage Clamp Meter Hioki CM4003
Dapatkan Produk Hioki dengan harga terbaik hanya di alatproyek.com / hubungi 021-29986622 s/d 24, 081808090252
Deskripsi Produk Tang Ampere AC Leakage Clamp Meter Hioki CM4003
Tang Ampere AC Leakage Clamp Meter Hioki CM4003
Fitur :
- Wireless support. Transfers measurements to your smartphone or tablet. (Optional Wireless Adapter Z3210 is necessary)
- Detect minuscule leakage currents with a newly designed sensor. (Core jaw diameter up to φ 40 mm)
- Broad measurement range extending from leakage currents to load currents
- Complies with the performance standard set forth in IEC/EN 61557-13, an international standard on leak clamp meters
- Solve GFCI and RCD problems quickly
- Speed up pass/fail judgments with the built-in comparator function
- Output function (waveform/RMS): use with a recorder to record waveforms and fluctuations
- External power supply: use an optional AC adapter for continuous, long-term measurement
Spesifikasi :
- AC Current range 6.000 mA, 60.00 mA, 600.0 mA, 6.000 A, 60.00 A, 200.0 A, 6 ranges, True RMS
- Basic accuracy 45 Hz - 400 Hz: ±1.0% rdg ±5 dgt (6.000 mA to 6.000 A), ±1.5% rdg ±5 dgt (60.00 A, 200.0 A)
- Basic accuracy 15 Hz - 45 Hz, 400 Hz - 2 kHz: ±2.0% rdg ±5 dgt
- Defined accuracy range: 0.060 mA to 200.0 A
- AC Voltage range N/A
- Frequency range 15.0 Hz to 2000 Hz
- Crest factor 3 (other than 200.0 A range), 1.5 (200.0 A range)
Tang Ampere AC Leakage Clamp Meter Hioki CM4003
