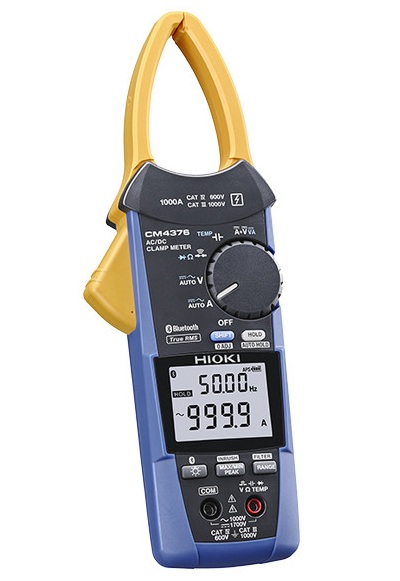

Tang Ampere AC DC Clamp Meter With Bluetooth Hioki CM4376

Deskripsi Produk Tang Ampere AC DC Clamp Meter With Bluetooth Hioki CM4376

Tang Ampere AC DC Clamp Meter With Bluetooth Hioki CM4376

Fitur :

• Easily get into tight spaces between cables thanks to thin sensor structure
• Measure up to 1000 A
• Automatic AC/DC function helps boost work efficiency
• Measure DC voltages of up to 1700 V (*1)
• Simultaneously measure inrush current in RMS and crest values
• Expanded -25 °C to 65 °C operating temperature range
• Send measured values to a smartphone or tablet using Bluetooth® wireless technology (CM4376)

Spesifikasi :

CAT IV 600 V | CAT III 1000 V

DC Current range 1000 A, (Max. display 999.9 A) , Basic accuracy: ±1.3% rdg. ±0.3 A (at 30.1 A - 999.9 A)
AC Current range 1000 A (Max. display 999.9 A, 10 Hz to 1 kHz, True RMS), Basic accuracy 45-66 Hz: ±1.3% rdg. ±0.3 A (at 30.1 A - 900.0 A)
Crest factor 1.5
DC+AC Current range 1000 A (DC, 10 Hz to 1 kHz, True RMS), Basic accuracy DC, 45-66 Hz: ±1.3% rdg. ±1.3 A (at 30.1 A - 900.0 A)
DC Power range 0.0 VA to 1700 kVA (Automatically switched based on voltage range), Basic accuracy: ±2.0% rdg. ±20 dgt.
DC Voltage range 600.0 mV to 1500 V (*1), 5 ranges, Basic accuracy: ±0.5% rdg. ±0.5 mV (at 600 mV)
AC Voltage range 6.000 V to 1000 V, 5 ranges (15 Hz to 1 kHz, True RMS), Basic accuracy 45 - 66 Hz: ±0.9% rdg. ±0.013 V (at 6 V)
DC+AC Voltage range 6.000 V to 1000 V, 5 ranges, Basic accuracy DC, 45-66 Hz: ±1.0% rdg. ±0.023 V (at 6 V)

Other functions Automatic AC/ DC detection, DC current and DC voltage polarity detection function, MAX/ MIN/ AVG/ PEAK MAX/ PEAK MIN value display, Low-pass filter function, Display value hold, Auto hold, Backlight, Auto power save, Buzzer sound, Zero-adjustment
Dustproof, waterproof IP54 (Storage or measurement of current of an insulated conductor)
