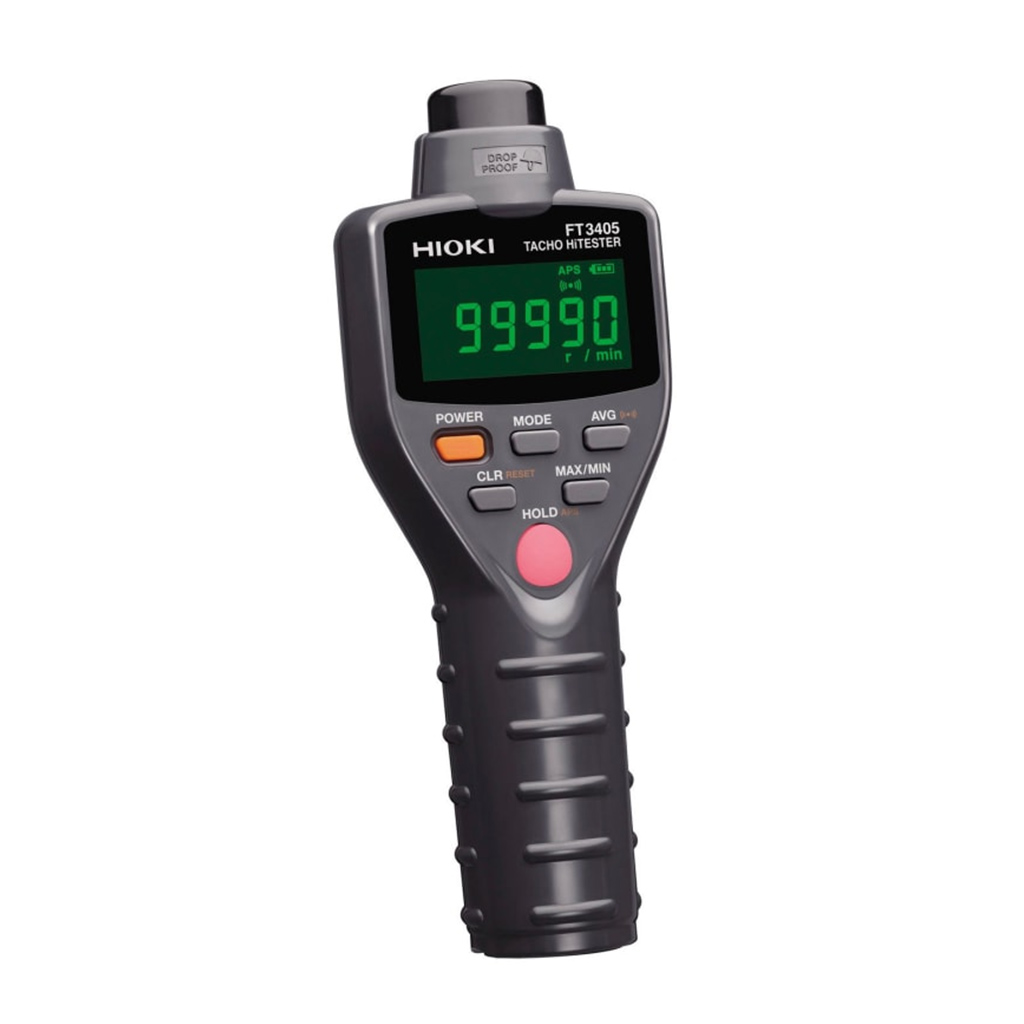

Tachometer HiTester Hioki FT3405
Spesifikasi Produk : Tachometer HiTester Hioki FT3405
SKU : FT3405
Size : 71W × 186H × 38D mm
Tachometer HiTester Hioki FT3405
Dapatkan Produk Hioki dengan harga terbaik hanya di Alatproyek.com / hubungi 021-29986622 s/d 24, 081808090252
Deskripsi Produk : Tachometer HiTester Hioki FT3405
Tachometer HiTester Hioki FT3405
Spesifikasi :
Measurement method Non-contact: Using red visible-spectrum light and reflective tape
Contact: Using optional Contact Adapter
Measurement ranges Non-contact, AVG=ON Rotation (r/min) : (30.00 to 199.99) to (20000 to 99990), Rotation (r/s) : (0.5000 to 1.9999) to (200.0 to 1600.0), Period (ms) : (0.6000 to 1.9999) to (200.0 to 1999.9), Count : 0 to 999999
Measurement ranges Contact, AVG=ON Rotation (r/min) : (15.00 to 199.99) to (2000 to 19999), Rotation (r/s) : (0.2500 to 1.9999) to (200.0 to 333.00), Period (ms) : (3.000 to 19.999) to (200.0 to 3999.9), Count : 0 to 999999
Measurement ranges Contact, AVG=ON Straight-line speed (meter/min) : (1.500 to 19.999) to (200.0 to 1999.9)
Straight-line speed (meter/s) : (0.0250 to 1.9999) to (20.00 to 33.30)
*Using with the Peripheral ring 9212 (option)
Accuracy Up to 9999 counts: 1 dgt. (AVG=ON), 10 dgt. (AVG=OFF)
10000 counts or more: 2 dgt. (AVG=ON), 20 dgt. (AVG=OFF)
20000 counts or more (r/min mode only) : 20 dgt. (AVG=ON), 100 dgt. (AVG=OFF)
Straight-line speed measurement only: 0.5 % rdg. add to above-mentioned accuracy
Non-contact measuring detection range 50 mm (1.97 inch) to 500 mm (19.7 inch)
Display refresh rate Approx. 0.5 to 10 times/s
Functions (FT3406 only) N/A [Analog output] 0 to 1 V f.s., Accuracy: 2 % f.s., Output resistance: 1 k
[Pulse output] 0 to 3.3 V, Output resistance: 1 k
Can use with the AC adapter for power supply
Dust and water proof IP50 (EN60529) IP50 (EN60529)
Common functions MAX/MIN display, Display hold, Average, Auto power save, Buzzer sound, Drop-proof (1 m distance onto concrete surface)
Power supply LR6 (AA) alkaline battery 2, Max. rated consumption 0.5 VA
Operating time Continuous use 30 hr Continuous use 25 hr
AC power supply N/A AC adapter Z1004
Dimensions and mass 71 mm (2.80 in)W 186 mm (7.32 in)H 38 mm (1.50 in)D, 230 g (8.1 oz) (including batteries)
Accessories Instruction manual 1, Reflective tape 9211 1 sheet (30 pieces/ 12 mm (0.47 in) 12 mm (0.47 in) per piece), Carrying case C0202 1, LR6 (AA) alkaline battery 2 Instruction manual 1, Reflective tape 9211 1 sheet (30 pieces/ 12 mm (0.47 in) 12 mm (0.47 in) per piece), Carrying case C0202 1, LR6 (AA) alkaline battery 2, *FT3406 only: Output cord L9094 1
Tachometer HiTester Hioki FT3405
