Deskripsi Produk SUPER INDEXING SPACER KRISBOW D210MM KW0400328- :

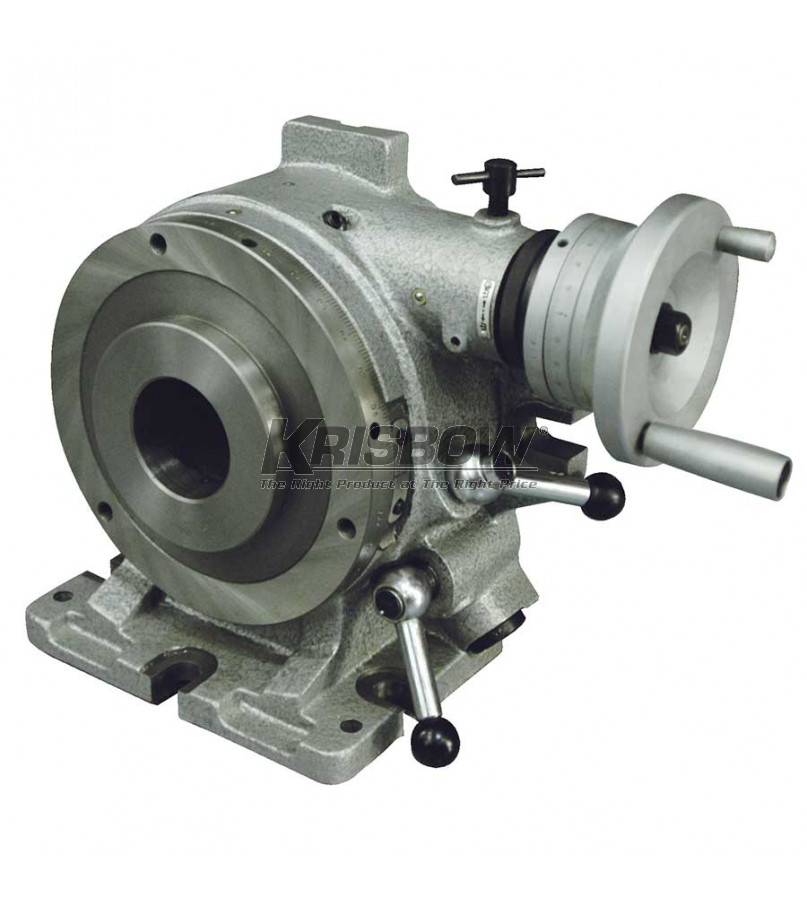

SUPER INDEXING SPACER KRISBOW D210MM KW0400328-
Deskripsi :
| SUPER INDEXING SPACER D=210MM |
|
Spesifikasi :
| Name |
SUPER INDEXING SPACER KRISBOW D210MM KW0400328- |
| Brand |
KRISBOW |
| Netto Weight |
94.00 KG |
| Manufacturing Number |
KW0400328 |
| Dimension Unit |
|
| Type |
Indexing Spacer |
| Benefit |
– |
| Features |
- Designed for using and indexing both horizontal and vertical position
- It is most optimum in use for milling, drilling , and planner machine
|
| Specification |
-
| Simple Indexing Spacer 210mm Jaw : Center Hight (mm) : 150 Center Diameter of the Spindle) (mm) : Ø 119.774 Diameter of Spindle Shoude r (mm) : Ø 210 Divisions : 2, 3, 4, 6, 8, 12, 24 Graduated Disc of Spindle (°) : 360 Modules of Worm and Worm Gear : 1,5 Transmissi on Ratio of Worm and Worm Gear : 1:90 Showed Degree of Worktable p er Revolution of Worm (°) : 4 Minimum Value of Vernier (Inch) : 1 0 Width of Locating Key (mm) : 16 Matched Chuck : K31210A 24 Divis ion Individual Error (Inch) : 25 Worm Gear Dividing Error (In ch) : ± 60 Weight (kg) : 62 Dimension (L x W x H) (mm) : 490 x 4 25 x 380 |
|
|
| Standard Certificate |
– |
| Lead Time |
1 |
| Flute |
– |
| Application |
– |
| Length |
– |
| Material |
– |
| Diameter |
– |
| Finish Coating |
– |
| Shape |
– |
SUPER INDEXING SPACER KRISBOW D210MM KW0400328-
