Description
Deskripsi Produk : Phase Detector Hioki PD3129

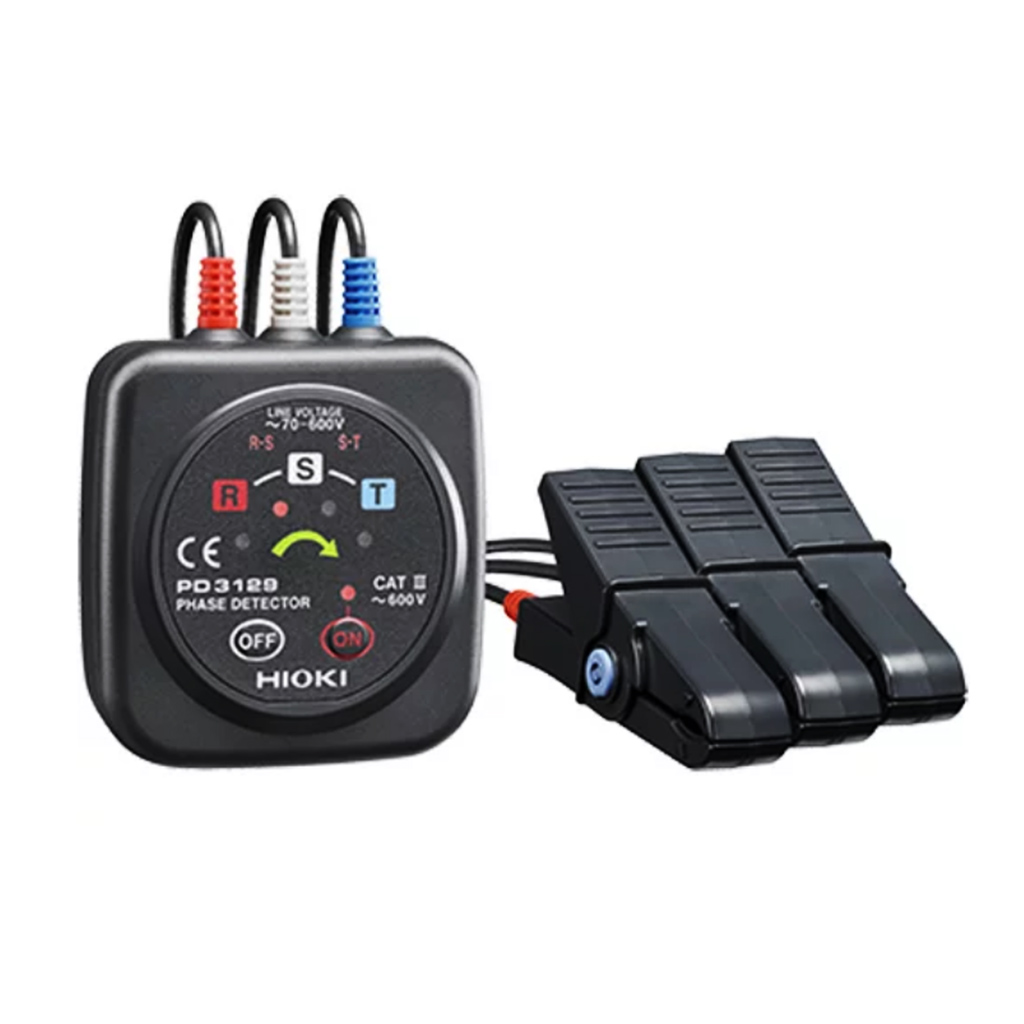

Phase Detector Hioki PD3129
Spesifikasi :
Fitur :
Panah LED hijau jelas menunjukkan arah fasa cocok untuk laporan visual
Indikator LED berputar menunjukkan urutan fase untuk catu daya 3 fasa sekilas
Sinyal sinyal bip intermiten positif sinyal terus menerus menandakan fase balik
Basis magnetik memungkinkan instrumen diamankan pada panel distribusi
Spesifikasi :
Phase detection (positive and negative)
Voltage detection method Static induction
Voltage range 70 to 1000 V AC (50/60 Hz) (sine wave, continuous input)
Frequency range 45 Hz to 66 Hz
Object to be connected 7 mm (0.28 in) to 40 mm (1.57 in) of insulated wiring
Display Phase detection : Positive ; 4 LEDs lit in clockwise order and the buzzer sounds intermittently, green arrow lights up
Negative ; 4 LEDs lit in counterclockwise order and the buzzer sounds continuously
Battery check function Power ON lamp: lights up (Power ON), blinks (Battery LOW)
Auto power off Auto shut off if no activity is detected after power is turned ON for 15 minutes
Power supply R6P (AA) manganese battery 2, Continuous use: 70 hr
Dimensions and mass 70 mm (2.76 in)W 75 mm (2.95 in)H 30 mm (1.18 in)D, 240 g (8.5 oz), Cord length : 0.7 m (2.30 ft)
Accessories Carrying case 1, Strap 1, Spiral tube 1, Instruction manual 1, R6P (AA) manganese battery 2
Phase Detector Hioki PD3129
