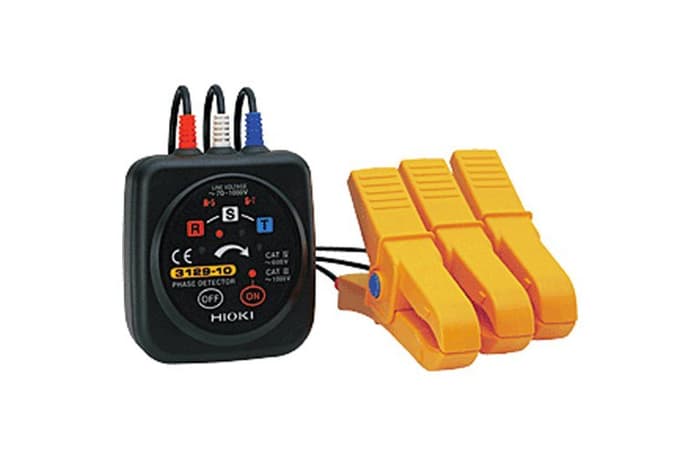

Phase Detector Hioki PD3129-10

Deskripsi Produk : Phase Detector Hioki PD3129-10

Phase Detector Hioki PD3129-10

Spesifikasi :
Fitur :

Adaptor magnetik, bisa diperbaiki ke papan distribusi
CATIV 600V / CATIII 1000V Aman
Klip lebar yang kompatibel dengan kabel tebal berdiameter 7mm (0.28in) sampai 40mm (1,57in)

Spesifikasi :
Functions Phase detection (positive and negative)
Voltage detection method Static induction
Voltage range 70 to 1000 V AC (50/60 Hz) (sine wave, continuous input)
Frequency range 45 Hz to 66 Hz
Object to be connected 7 mm (0.28 in) to 40 mm (1.57 in) of insulated wiring
Display Phase detection : Positive ; 4 LEDs lit in clockwise order and the buzzer sounds intermittently, green arrow lights up
Negative ; 4 LEDs lit in counterclockwise order and the buzzer sounds continuously
Battery check function Power ON lamp: lights up (Power ON), blinks (Battery LOW)
Auto power off Auto shut off if no activity is detected after power is turned ON for 15 minutes
Power supply R6P (AA) manganese battery 2, Continuous use: 70 hr
Accessories Carrying case 1, Strap 1, Spiral tube 1, Instruction manual 1, R6P (AA) manganese battery 2
Phase Detector HIOKI 3129-10

Phase Detector Hioki PD3129-10
