Description
Deskripsi Produk Multimeter Low Cost DMM Auto Range Constant DMM800 :

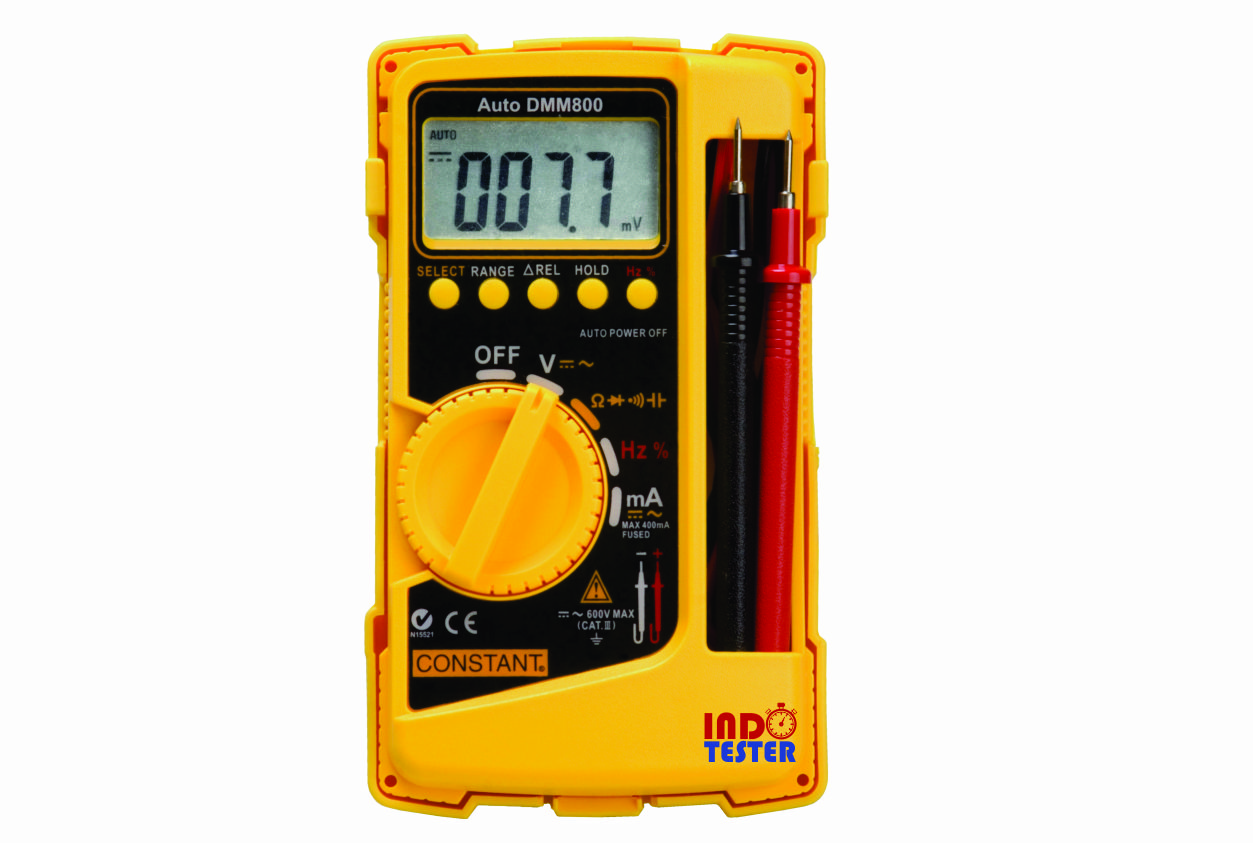

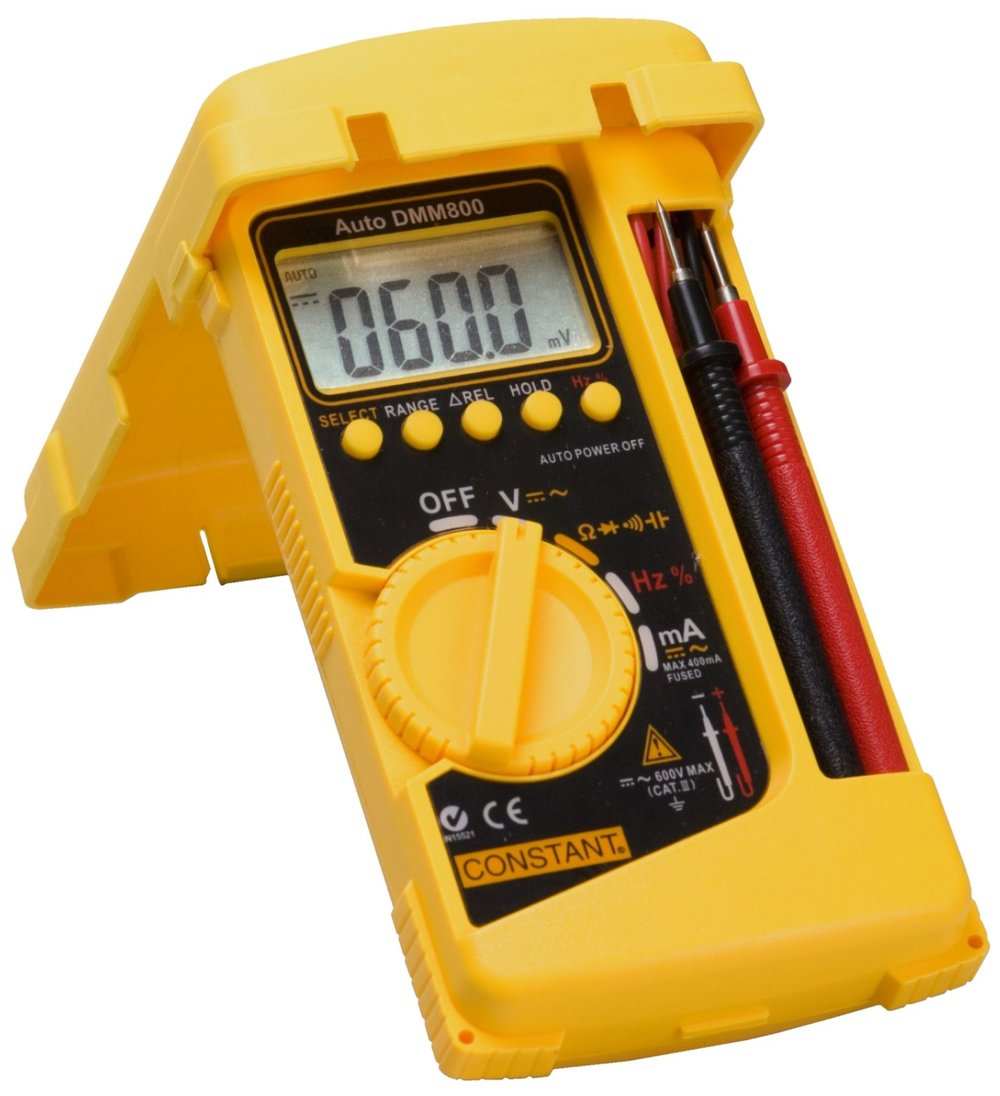

Multimeter Low Cost DMM Auto Range Constant DMM800
| SPESIFIKASI | ||
| Function | Range | Accuracy |
| AC mA Current | 40/400mA | ±(2.8% rdg ± 5 dgt) |
| AC Voltage | 4V | ±(1.6% rdg + 9 dgt) |
| 40/400/600V | ±(1.6% rdg + 5 dgt) | |
| DC mA Current | 40/400mA | ±(2.2% rdg + 5 dgt) |
| DC Voltage |
400mV | ±(0.8% rdg ± 3 dgt) |
| 4/40/400/600V | ±(1.1% rdg + 3 dgt) | |
| Input Impedance | >5MΩ (ACV) and >10MΩ (DCV) | |
|
Resistance |
400Ω | ±(1.5% rdg + 5 dgt) |
| 4k/40k/400kΩ | ±(1.2% rdg + 5 dgt) | |
| 4MΩ | ±(2.0% rdg + 3 dgt) | |
| 40MΩ | ±(4.0% rdg + 3 dgt) | |
| Capacitance | 50n/500n/5µ/50µ/100µF | ±(5.0% rdg +10 dgt) |
| Frequency | 5/50/500/5k/50k/100kHz | ±(3.0% rdg + 5 dgt) |
| Duty Cycle | 10 ~ 90% | ±(3.0% rdg + 5 dgt) |
| Diode Test | Display forward voltage drop of the diode | |
| Continuity | If continuity exists (≤ 70Ω), built in buzzer will sound | |
| Display | 3¾ digits, 4000 count | |
| Sampling Rate | ±2times/sec | |
| Indication | Low battery, over range, negative polarity | |
| Battery | 2 x 1.5V (AA battery) | |
| Weight | ±340g | |
| Size | 176 x 104 x 46mm | |
| Standard Accessories | Batteries, instruction manual | |
Multimeter Low Cost DMM Auto Range Constant DMM800
