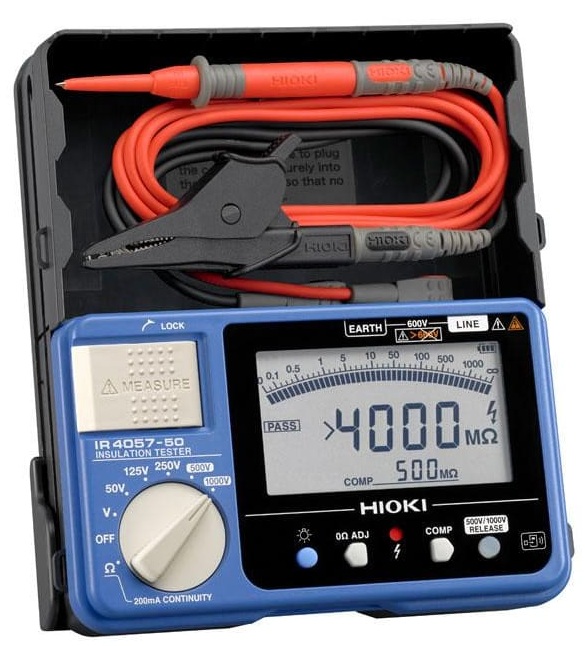

Insulation Tester Hioki IR4057-50

Rp 5.370.000,00
In stock
SKU
IR4057-50

Spesifikasi Produk Insulation Tester Hioki IR4057-50

SKU : IR4057-50

Insulation Tester Hioki IR4057-50

Dapatkan Produk Hioki dengan harga terbaik hanya di alatproyek.com / hubungi 021-29986622 s/d 24, 081808090252

Deskripsi Produk Insulation Tester Hioki IR4057-50

Insulation Tester Hioki IR4057-50

Fitur :

  • Type IR4057-50 harus beli Z3210 wireless adapter
Spesifikasi :
  • Rated output voltage 50 V DC 125 V DC 250 V DC 500 V DC 1000 V DC
  • Effective maximum indicated value 100 MΩ 250 MΩ 500 MΩ 2000 MΩ 4000 MΩ
  • Accuracy 1st effective measuring range MΩ ±2 % rdg. ±2 dgt.
  • 0.200 - 10.00 ±2 % rdg. ±2 dgt.
  • 0.200 - 25.0 ±2 % rdg. ±2 dgt.
  • 0.200 - 50.0 ±2 % rdg. ±2 dgt.
  • 0.200 - 500 ±2 % rdg. ±2 dgt.
  • 0.200 - 1000
  • Lower limit resistance 0.05 MΩ 0.125 MΩ 0.25 MΩ 0.5 MΩ 1 MΩ
  • Overload protection 600 V AC (10s) 660 V AC (10s)
  • DC voltage range 4.2 V (0.001 V resolution) to 600 V (1 V resolution), 4 ranges,
  • Accuracy: ±1.3% rdg. ±4 dgt., Input resistance: 100 kΩ or higher
  • AC voltage range 420 V (0.1 V resolution) / 600 V (1 V resolution), 2 ranges, 50/60 Hz,
  • Accuracy: ±2.3% rdg. ±8 dgt., Input resistance: 100 kΩ or higher, Average rectifier
  • Low resistance range For checking the continuity of ground wiring, 10 Ω (0.01 Ω resolution) to 1000 Ω (1 Ω resolution), 3 ranges, Basic accuracy: ±3 % rdg. ±2 dgt., testing current 200 mA or more (at 6 Ω or less)
