Deskripsi Produk Infrared Thermometer WINTACT WT550

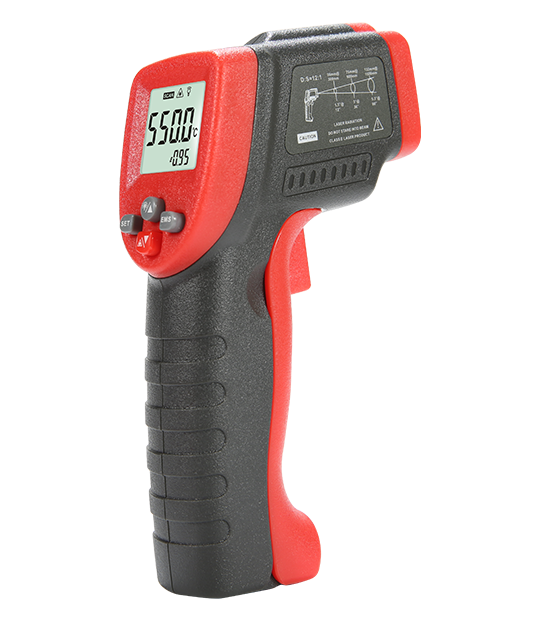

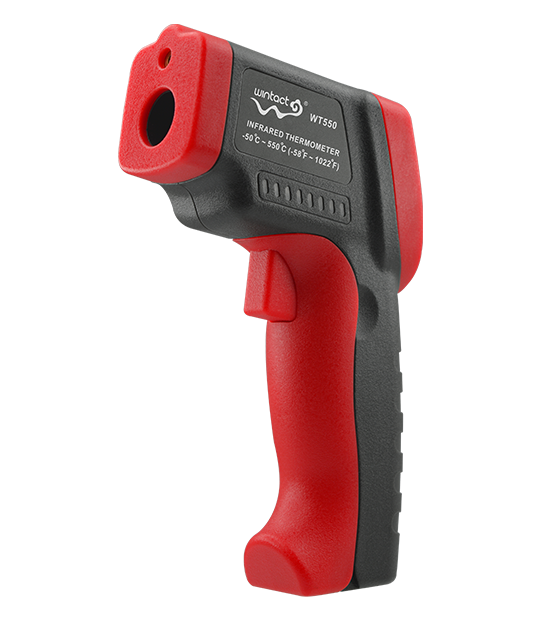

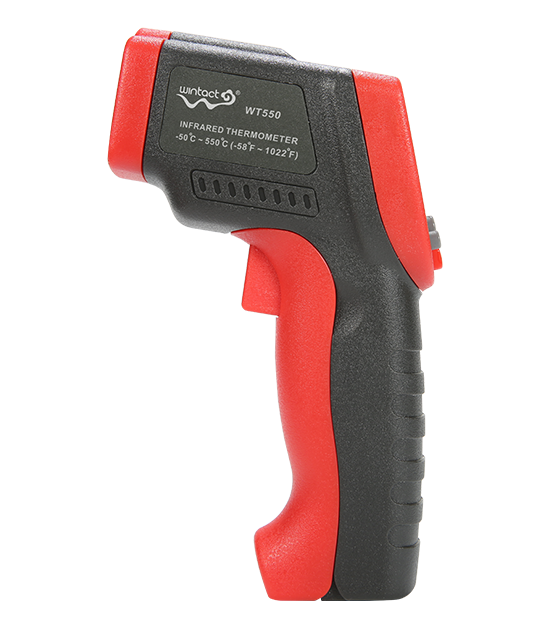

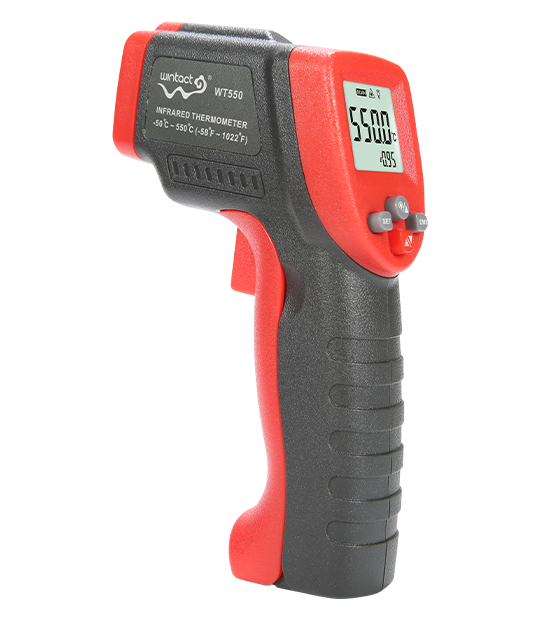

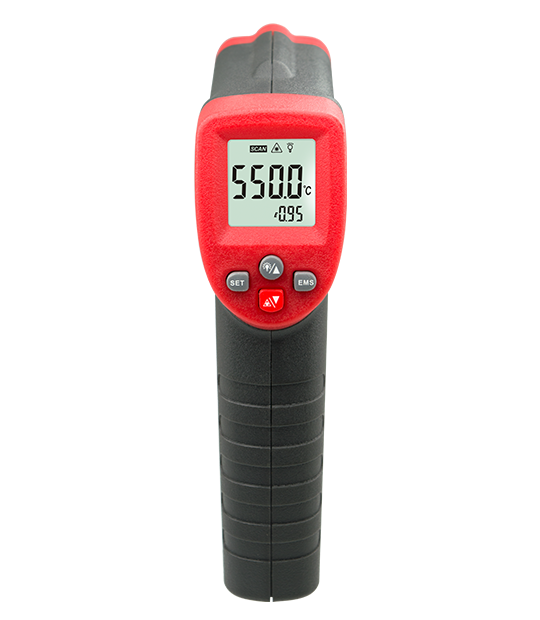

Infrared Thermometer WINTACT WT550
This infrared thermometer is used for measuring the temperature of the object’s surface, which is applicable for various hot, hazardous or hard-toreach objects without contact safely and quickly.This unit consist of Optics, Temperature Sensor Signal amplifier, Processing circuit and LCD Display. The Optics
collected the infrared energy emitted by object and focus onto the Sensor. Then the sensor translates the energy into an electricity signal. This signal will be turned out to be digital shown on the LCD after the signal amplifier and processing circuit.
Infrared thermometer possesses the following features:
- ℃/℉ temperature unit conversion
- High and low temperature alarm
- Data retention
- Battery level reminder
- Screen backlight
| Temperature range | -50~550℃ (-58~1022℉) |
| Accuracy |
0~550℃(32~1022℉) :±1.5℃(±2.7℉) |
| Resolution | 0.1℃ or 0.1℉ |
| Repeatability | 1% of reading or 1℃ |
| Response time | 500 mSec, 95% response |
| Spectral response | 5-14 um |
| Emissivity | 0.10~1.00 Adjustable (0.95 Preset) |
| Distance to Spot size | 12:1 |
| Operating Temperature | 0 ~40℃ (32 ~ 104℉) |
| Operating Humidity |
10~95%RH non-condensing， |
| Storage Temperature | -20 ~ 60℃ (-4~140℉) |
| Power | 3V (1.5V AAA batteryX2) |
| Typical battery life (Alkaline) |
Non-laser mode: 22 hrs; |
Infrared Thermometer WINTACT WT550
