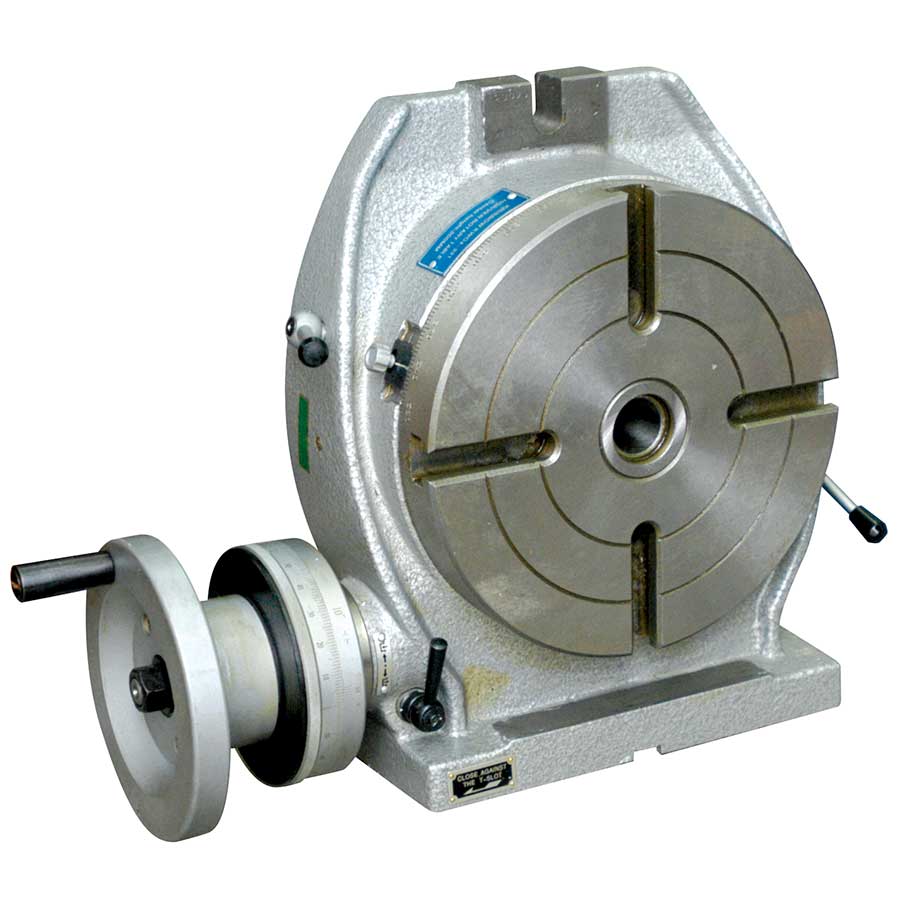

Horizontal / Vertical Rotary Table D=200MM Krisbow KW0400331

Rp4.156.000

Spesifikasi Produk Horizontal / Vertical Rotary Table D=200MM Krisbow KW0400331

SKU : KW0400331

Size : D = 200 MM

Horizontal / Vertical Rotary Table D=200MM Krisbow KW0400331

Dapatkan Produk Krisbow dengan harga terbaik hanya di alatproyek.com / hubungi 081808090252

In stock

Compare
SKU: KW0400331 Categories: , , Brand:

Description

Deskripsi Produk Horizontal / Vertical Rotary Table D=200MM Krisbow KW0400331

Horizontal / Vertical Rotary Table D=200MM Krisbow KW0400331

Fitur :

  • Designed for using and indexing both horizontal andvertical position
  • It is most optimum in use for milling, drilling,and planner machine

Spesifikasi :

  • Horizontal Vertical Rotary Table Without Accessories 200mm :
  • Diameterof Table (mm) : Ø 200
  • Morse Taper of the Center Hole : 3#
  • Diameter ofthe Center Hole (mm) : Ø 30 x 6
  • Height of Cent er for Vertical Mounting(mm) : 150
  • Width of the TSlot (mm) : 12
  • Adjacent Angle of TableTSlot (°) : 90
  • Width of the Loc ation Key (mm) : 14
  • Module of theworm gear : 1,75
  • Transmissi on Ratio of the
  • Worm Gear : 1 :90
  • Graduation of the Table (°) : 360
  • Readout of The Handwheel :1′
  • Minimum Reading of The
  • Vernier (inch) : 10
  • Index Accuracy (Inch) :60
  • Max. Bearing with Table Hor (kg) : 150
  • Max. Bearing with Table (kg ) : 75
  • Dimension (L x W x H) (mm) : 450 x 440 x 235

Horizontal / Vertical Rotary Table D=200MM Krisbow KW0400331

Additional information

Weight 45 kg
Dimensions 45 × 44 × 23,5 cm
