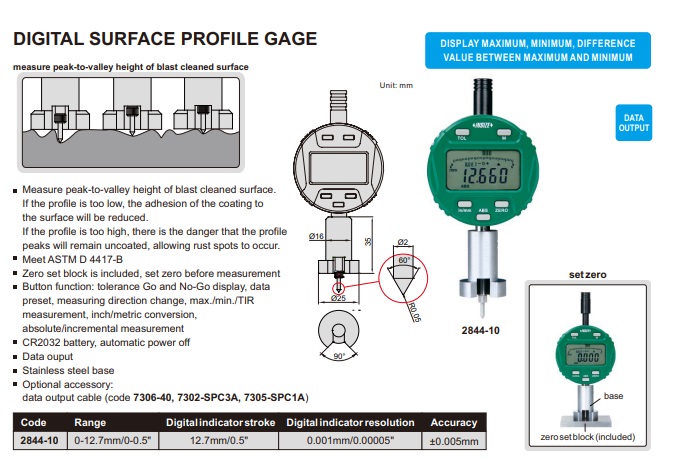

Digital Surface Profile Gage 0-12.7mm/0-0.5″ Insize 2844-10

Description

Deskripsi Produk Digital Surface Profile Gage 0-12.7mm/0-0.5″ Insize 2844-10 :

Digital Surface Profile Gage 0-12.7mm/0-0.5″ Insize 2844-10

Fitur Produk :

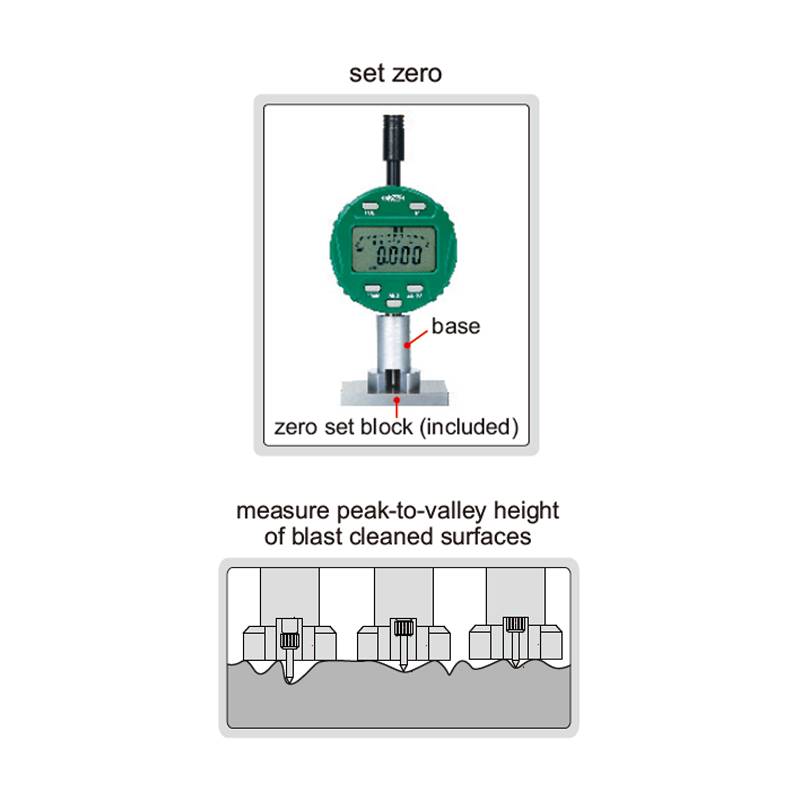

• Measure peak-to-valley height of blast cleaned surface.
• If the profile is too low, the adhesion of the coating to the surface will be reduced.
• If the profile is too high, there is the danger that the profile peaks will remain uncoated, allowing rust spots to occur.
• Meets ASTM D 4417-B
• Zero set block is included, set zero before measurement
• Button function: tolerance Go and No-Go display, data preset, measuring direction change, max./min./TIR measurement, inch/metric conversion, absolute/incremental measurement
• CR2032 battery, automatic power off
• Data ouput
• Stainless steel base
• Optional accessory: data output cable (code 7306-40, 7302-SPC3A, 7305-SPC1A)

Spesifikasi Produk :

• Range : 0-12.7mm/0-0.5″
• Digital Indicator Stroke : 12.7mm/0.5″
• Digital Indicator Resolution : 0.001mm/0.00005″
• Reading : 0.001mm/0.00005″
• Accuracy : ±0.005mm

Digital Surface Profile Gage 0-12.7mm/0-0.5″ Insize 2844-10
