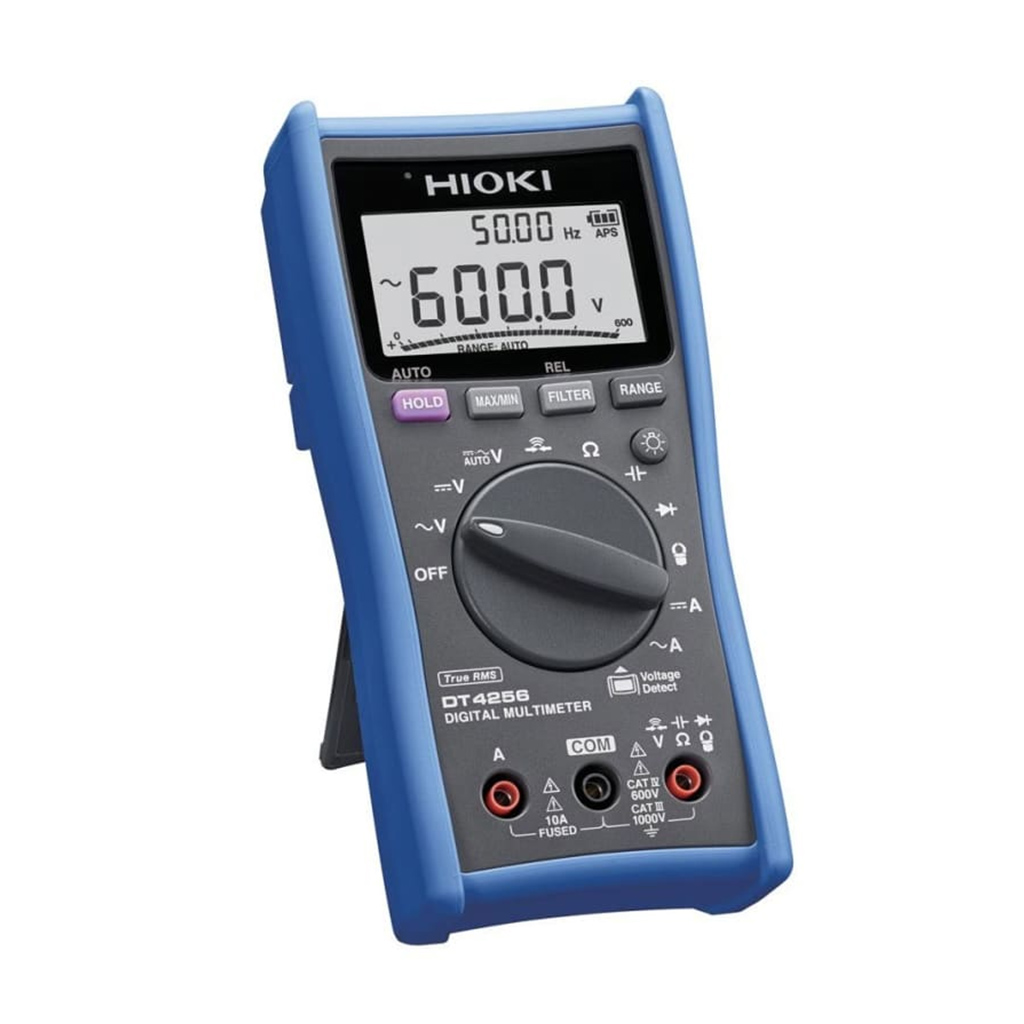

Digital Multimeter Hioki DT4256
Spesifikasi Produk : Digital Multimeter Hioki DT4256
SKU : DT4256
Size : 2.5H x 8.5L x 5.0W IN
Digital Multimeter Hioki DT4256
Dapatkan Produk Hioki dengan harga terbaik hanya di Alatproyek.com / hubungi 021-29986624, 081808090252
Whatsapp only (klik di nomornya): 0877-8877-5492
Deskripsi Produk : Digital Multimeter Hioki DT4256
Digital Multimeter Hioki DT4256
Spesifikasi :
DC Voltage 600.0 mV to 1000 V, 5 ranges
Basic accuracy: 0.3 % rdg. 3 dgt.
AC Voltage 6.000 V to 1000 V, 4 ranges, Frequency characteristics: 40 Hz to 1 kHz
Basic accuracy 40 - 500 Hz : 0.9 % rdg. 3 dgt. (True RMS, crest factor 3)
AUTO AC/DCV Yes
Resistance 600.0 to 60.00 M, 6 ranges, Basic accuracy: 0.7 % rdg. 3 dgt.
DC Current 60.00 mA to 10.00 A, 4 ranges,
Basic accuracy: 0.9 % rdg. 3 dgt.
AC Current 600.0 mA to 10.00 A, 3 ranges,
Basic accuracy 40 - 500 Hz : 1.4 % rdg. 3 dgt.
(True RMS, crest factor 3, 40 Hz to 1 kHz)
AC Current (use with Clamp on probes) 10.00 A to 1000 A, 7 ranges, Add the Clamp on probe accuracy to basic accuracy 40 - 1 kHz : 0.9 % rdg. 3 dgt. (True RMS, crest factor 3)
Voltage detection (50/60 Hz) Hi: AC40 V to 600 V, Lo: AC80 V to 600 V
C (capacitance) 1.000 F to 10.00 mF, 5 ranges, Basic accuracy: 1.9 % rdg. 5 dgt.
Frequency 99.99 Hz (5 Hz or more) to 99.99 kHz, 4 ranges (limited by the minimum detectable voltage and current),
Basic accuracy: 0.1 % rdg. 1 dgt.
Continuity check Continuity threshold [ON]: 25 or less (Indicate buzzer sound, red LED),
[OFF]: 245 or more, Response time: 0.5 ms or more
Diode test Open terminal voltage: 5.0 V or less, Testing current 0.5 mA or less,
Threshold of forward voltage: 0.15 V to 1.5 V
Other functions Filter function, Display value hold, Auto hold, Max/Min/Average value display, Relative display, Auto-power save, USB communication (option)
Display Main and Sub displays: 4-digits LCD, max. 6000 digits, bar graph
Display refresh rates 5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 time/s, Temperature: 1 time/s )
Power supply LR03 alkaline batteries 4, Continuous use: 130 hours (backlight OFF)
Dimensions and mass 84 mm (3.31 in)W 174 mm (6.85 in)H 52 mm (2.05 in)D,
390 g (13.8 oz) (including batteries and holster)
Accessories Test lead L9207-10 1, Holster 1, Instruction manual 1, LR03 alkaline battery 4
Digital Multimeter Hioki DT4256
