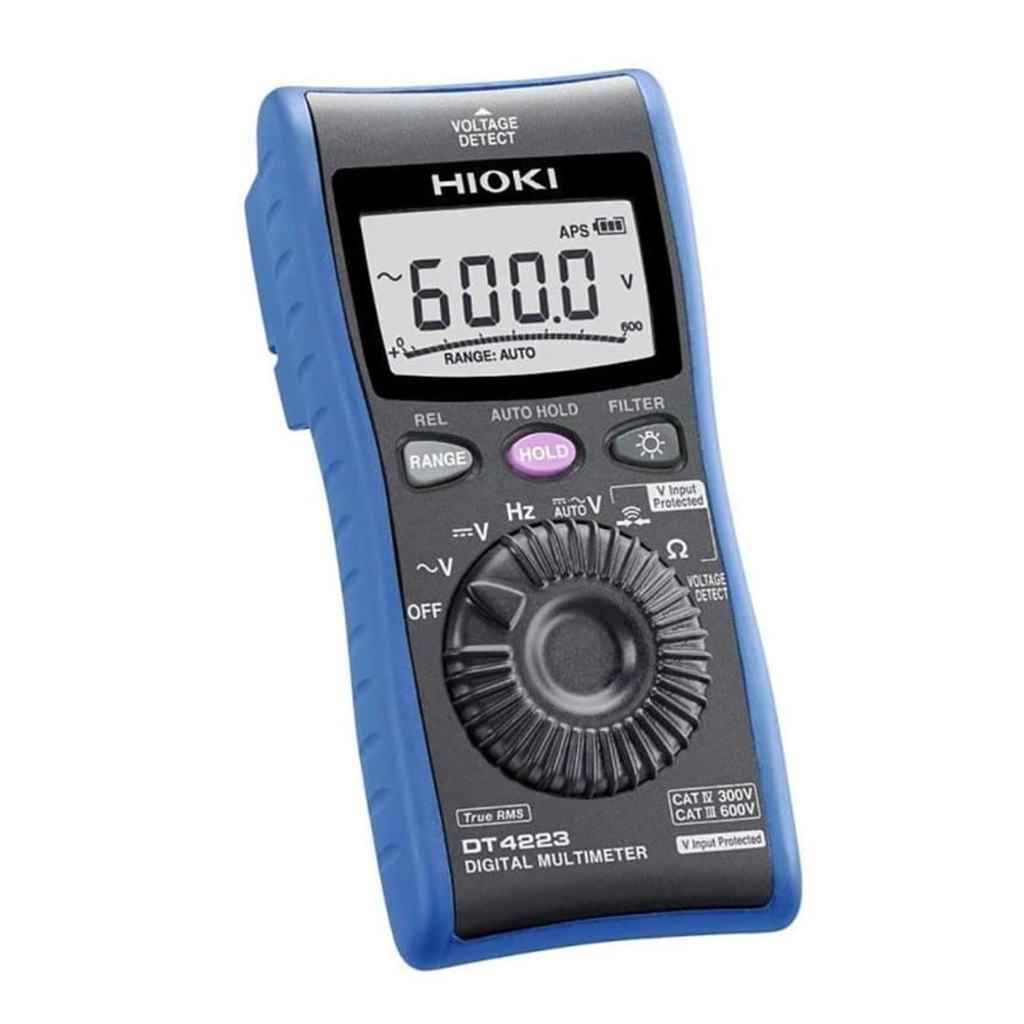

Digital Multimeter Hioki DT4223

Deskripsi Produk : Digital Multimeter Hioki DT4223

Digital Multimeter Hioki DT4223

Spesifikasi :
DC Voltage 600.0 mV to 600.0 V, 4 ranges, Basic accuracy: 0.5 % rdg. 5 dgt.
AC Voltage 6.000 V to 600.0 V, 3 ranges, Frequency characteristics: 40 Hz - 1 kHz
Basic accuracy 40 - 500 Hz : 1.0 % rdg. 3 dgt. (True RMS, crest factor 3)
Resistance 600.0 to 60.00 M, 6 ranges
Basic accuracy: 0.9 % rdg. 5 dgt.
C (capacitance) N/A
Frequency AC V measurement: 99.99 Hz (5 Hz or more) to 9.999 kHz, 3 ranges
Basic accuracy: 0.1 % rdg. 2 dgt.
Continuity check Continuity threshold [ON]: 25 or less (buzzer sound), [OFF]: 245 or more Response time: 0.5 ms or more
Diode test N/A
Voltage detection 80 V to 600 V AC
Other functions Circuit breaker false trip prevention function, Filter function, Display value hold, Relative display, Auto-power save
Display Main and Sub displays: 4-digits LCD, max. 6000 digits, bar graph
Display refresh rates 5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 time/s )
Power supply LR03 alkaline batteries 4, Continuous use: 35 hours (backlight OFF)
Dimensions and mass 72 mm (2.83 in)W 149 mm (5.87 in)H 38 mm (1.50 in)D,190 g (6.7 oz) (including batteries and holster)
Accessories Test lead DT4911 1, Holster 1, Instruction manual 1, LR03 alkaline battery 1

Digital Multimeter Hioki DT4223
