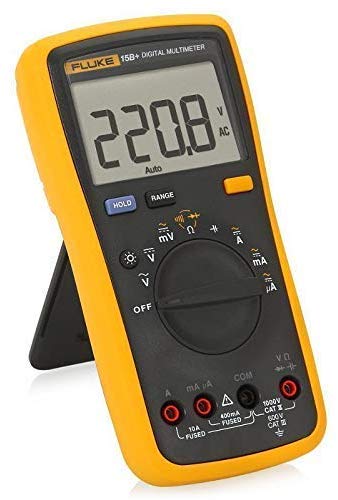

Digital Multimeter Fluke 15B+

Description

Deskripsi Produk Digital Multimeter Fluke 15B+

Digital Multimeter Fluke 15B+

Fitur :

• 600 V Cat III safety rating
• 50% bigger display with bright white backlight
• Voltage, resistance, continuity, capacitance
• Input terminal for ac and dc current measurements to 10 A current
• Diode test, data hold

• Maximum voltage between any terminal and earth ground 1000 V
• Display (LCD) 4000 counts, updates 3/sec
• Battery type 2 AA, NEDA 15A, IEC LR6
• Battery life 500 hours minimum (50 hours in LED Test mode without load. The hours with load depends on the type of LED under test.)
• Temperature
• Operating 0 °C to 40 °C
• Storage -30 °C to 60 °C
• Relative humidity
• Operating humidity Non-condensing (<10°C)
• ≤90% RH at 10 °C to 30 °C;
• ≤75% RH at 30 °C to 40 °C
• 40 MΩ range
• ≤80% RH at 10 °C to 30 °C;
• ≤70% RH at 30 °C to 40 °C
• Altitude
• Operating 2000 m
• Storage 12,000 m
• Temperature coefficient 0.1 X (specified accuracy) /°C (<18 °C or >28 °C)
• Fuse protection for current inputs 440 mA, 1000 V Fast Fuse, Fluke specified part only.
• 11A, 1000V Fast Fuse, Fluke specified part only.
• Size (H x W x L) 183 x 91 x 49.5 mm
• IP rating IP 40
• Safety IEC 61010-1, IEC61010-2-030 CAT III 600 V, CAT II 1000 V, Pollution Degree 2
• Electromagnetic environment IEC 61326-1: Portable
