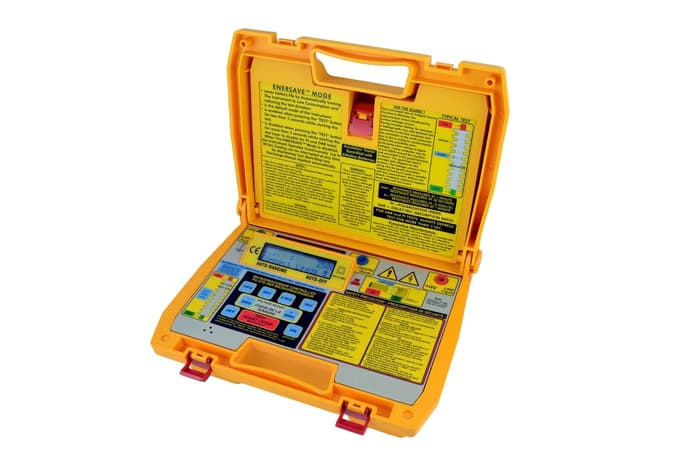

Digital Insulation Tester SEW 6213AIN

Deskripsi Produk Digital Insulation Tester SEW 6213AIN

Digital Insulation Tester SEW 6213AIN

Fitur :

• Microprocessor-controlled.
• 2 16 characters; large intelligent LCD module.
• 20 Insulation test voltages 500V, 1kV, 1.5kV, 2kV, 2.5kV, 3kV,
• 3.5kV, 4kV, 4.5kV, 5kV, 5.5kV, 6kV, 6.5kV, 7kV, 7.5kV, 8kV, 8.5kV,
• 9kV, 9.5kV, 10kV.
• Ener-Save feature to extend battery life.
• Bar-graph indicates test voltage; rise and decay can be observed.
• Visual and audible warning if external voltage is present (>500Vac or Vdc.)
• Insulation resistance; auto-ranging on all ranges.
• Overload protection.
• Low battery indicator (read time battery voltage measurement).
• Measures insulation time duration of the test.
• Low battery consumption.
• Better than 10% accuracy on all ranges.
• Auto-off.
• Calculates Dielectric Absorption Ratio (DAR) automatically.
• Calculates Polarization Index (PI) automatically.

Spesifikasi :

• Test voltage From 500Vdc to 10kVdc
• Adjustable in 500V steps
• Preset buttons 1kV / 2.5kV / 5kV / 10kV
• Measuring ranges 800k-500G (auto-ranging)
• Accuracy 5% 2 digits
• Output power limit 1W
• Voltage regulation Selected voltage +20%-5% of
• nominal value unless current limited.
• Meaning that if output current is
• too high, the voltage will be lowered
• automatically.
• Dimensions 330(L) 260(W) 160(D)mm
• Power source 1.5V C 8 Alkaline batteries
• Safety standard EN 61010-1 CAT III 300V
• EN 61326-1
