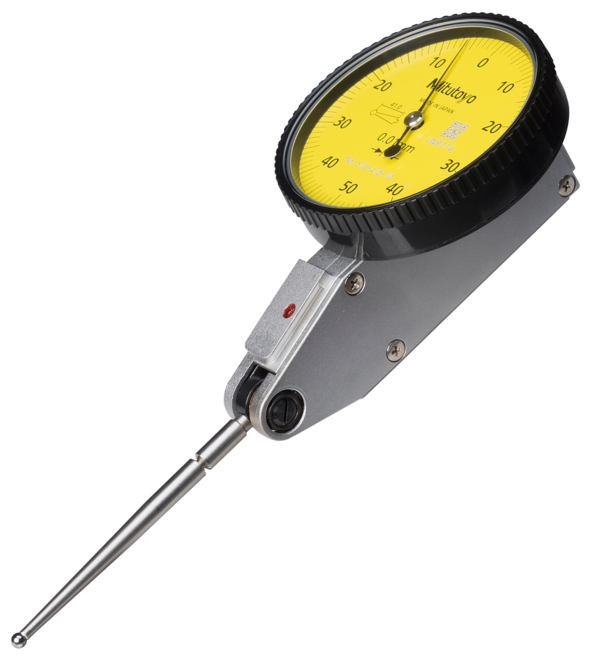

DIALTEST INDICATOR 1/0.01MM MITUTOYO 513-415-10E
Spesifikasi Detail DIALTEST INDICATOR 1/0.01MM MITUTOYO 513-415-10E:

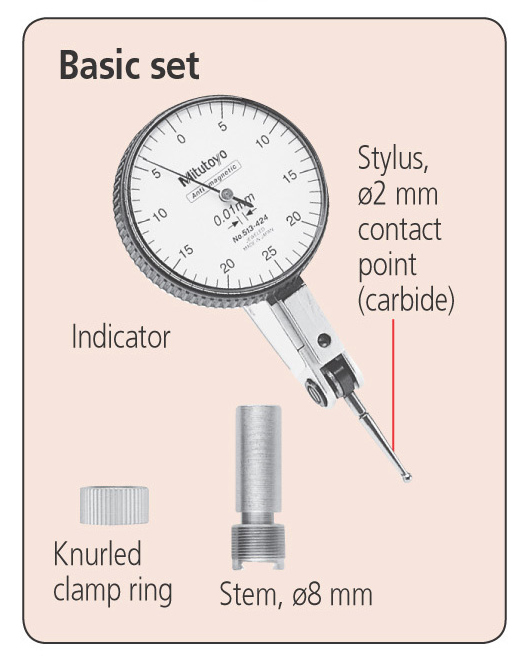

- Type: Basic set
- Digital/Analog: Analog
- Inch-Metric: Metric
- Graduation: 0.01
- Scale: 0-50-0
- MPE any 10 scale divisions: 5
- MPE any 1/2 revolution: 8
- MPE measuring range: 1
- H MPE (Hysteresis): 4
- R MPE (Repeatability): 3
- Carbide stylus tip ø2 mm No.: 136013
- Measuring force: 0.01-0.2
- Contact point: Thread M 1.7 x 0.35
Performs Easy and accurate measurement of Narrow or recessed areas, Plus inside and Outside diameters that Dial indicators cannot access.- no-Clutch structure for Automatic reversal of measuring direction.- One-Piece bezel and crystal design. A Mitutoyo versatile long stylus, anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a basic set of mounting accessories.
