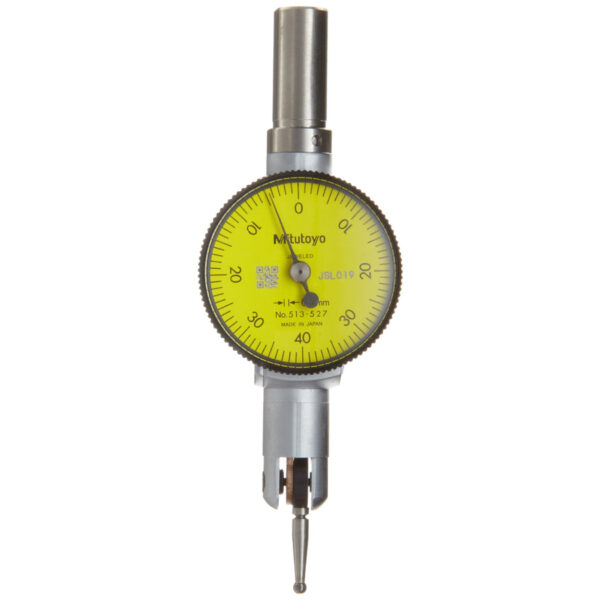

DIALTEST INDICATOR 0.8/0.01MM 513-527E MITUTOYO MT0002874

Description

Deskripsi Produk DIALTEST INDICATOR 0.8/0.01MM 513-527E MITUTOYO MT0002874

DIALTEST INDICATOR 0.8/0.01MM 513-527E MITUTOYO MT0002874

DIAL TEST INDICATOR 0.8/0.01MM 513-527E adalah alat ukur dengan pengukuran yang sangat kecil seperti pengukuran kerataa n bidang datar, kertaan permukaan dan kebulatan poros, atau kerataan per mukaan dinding cylinder. Alat ini menggunakan alat bantu magnetic base untuk memegang dial gauge yang berfungsi mengatur posisi ketinggian dia l gauge pada tempat atau permukaan benda yang diukur. Dial indicator mitutoyo ini mempunyai besar pengukuran sebesar 0-0.8 MM. Dial indicator mitutoyo sering digunakan di industri, pabrik, atau bengke l.

Benefit
* Jeweled bearings assure higher sensitivity and accuracy. Indicator can be mounted by clamping the stem or the body (except for 513-517 WE and 513-517 WT).
* Reversible measuring direction (Clutch type).
* Two holding bars are supplied. (Full sets only.)
* Fully adjustable bezel/dial face.
* Stylus is adjustable within 220 deg.
* Bezel is sealed with on O-ring to keep out water and oil.

Features
* Jeweled bearings assure higher sensitivity and accuracy.
* Reversible measuring direction.
* Two holding bars are supplied.(Full sets only.)
* Fully adjustable bezel/dial face.
* Contact point is adjustable within 220 deg.
*

Bezel is sealed with on O-ring to keep out water / oil.

Deskripsi :
* Type : Pocket
* Part Number : 513-527E
* Graduation : 0.01 MM
* Range : 0.8 MM
* Measurement Accuracy : 8 Micrometer
* Display : 0-40-0
* Length (MM) : 14.7
* Measuring force : 0. 3 N or less
* System of Measurement : Metric
* Color : Yellow Dial
* Material Type : Steel
* Stem : 8 MM
* Manufacturer Series Number : Dial Test Indicator
