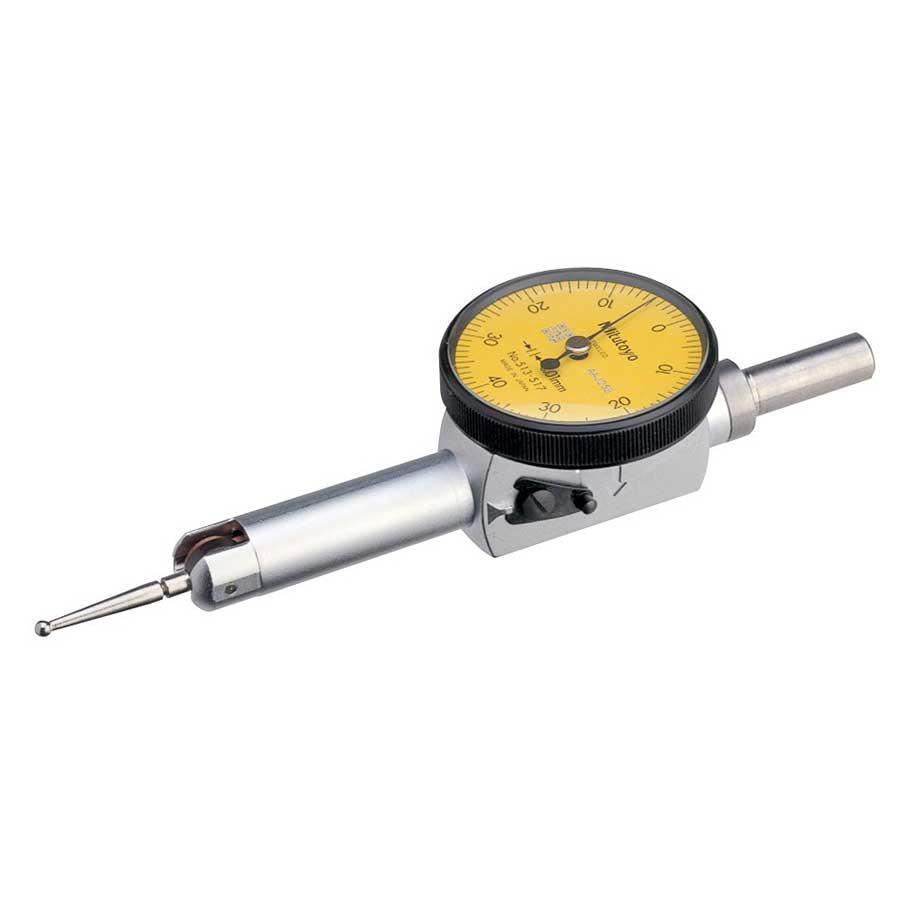

DIALTEST INDICATOR 0.8/0.01MM 513-517WE MITUTOYO MT0005914

Description

DESKRIPSI PRODUK DIALTEST INDICATOR 0.8/0.01MM 513-517WE MITUTOYO MT0005914

DIALTEST INDICATOR 0.8/0.01MM 513-517WE MITUTOYO MT0005914

Benefit
* Jeweled bearings assure higher sensitivity and accuracy. Indicator can be mounted by clamping the stem or the body (except for 513-517 WE and 513-517 WT).
* Reversible measuring direction (Clutch type).
* Two holding bars are supplied. (Full sets only).
* Fully adjustable bezel/dial face.
* Stylus is adjustable within 220 deg..

Features
* Jeweled bearings assure higher sensitivity and accuracy.
* Reversible measuring direction.
* Two holding bars are supplied.(Full sets only.)
*Fully adjustable bezel/dial face.
* Contact point is adjustable within 220 deg.
*

Bezel is sealed with on O-ring to keep out water / oil.

DESKRIPSI :
* Type : Pocket
* Part Number : 513-517WE
* Graduation : 0.01 MM
* Range : 0.8 MM
* Measurement Accuracy : 8 Micrometer
* Display : 0-40-0
* Measuring force : 0.3 N or less
* Length (MM) : 20.9
* Brand Name : Mitutoyo
* System of Measurement : Metric
* Color : Yellow Dial
* Material Type : Steel Stem : 8 MM
* Manufacturer Series Number : Dial Test Indicator

Carbide Point Contact Stylus : 2 MM
* Knurled Clamp Ring
* Type Pocket
* Dimension_unit : 135 X 85 X 35 MM
