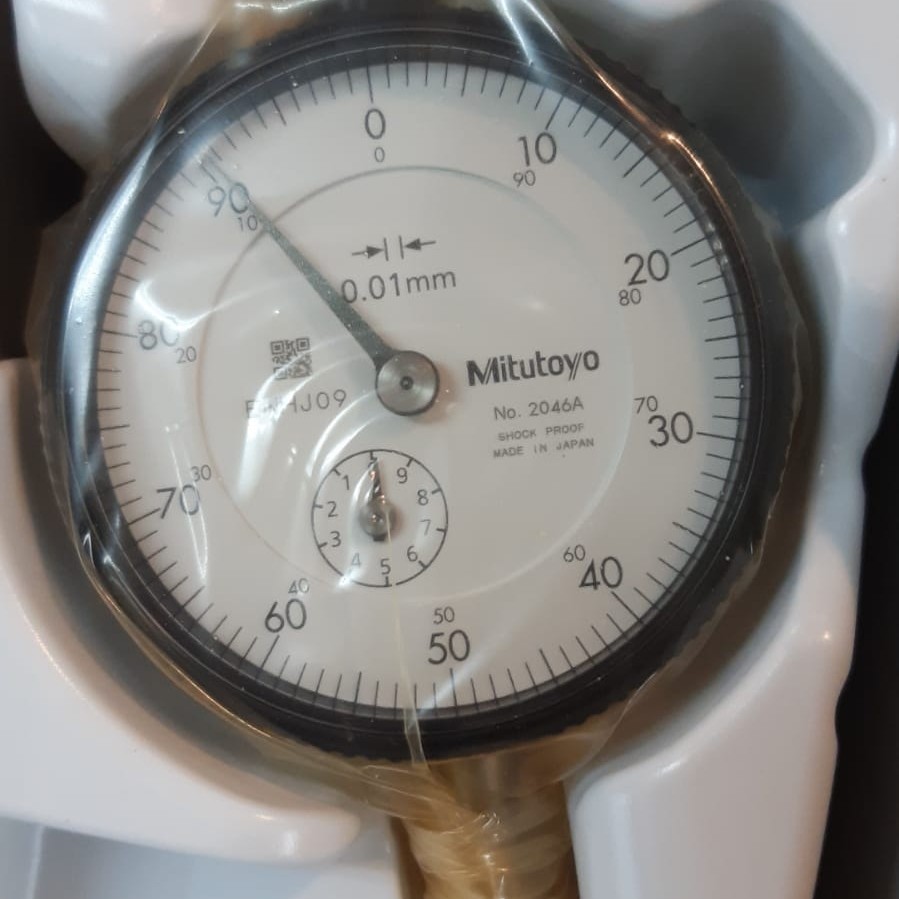

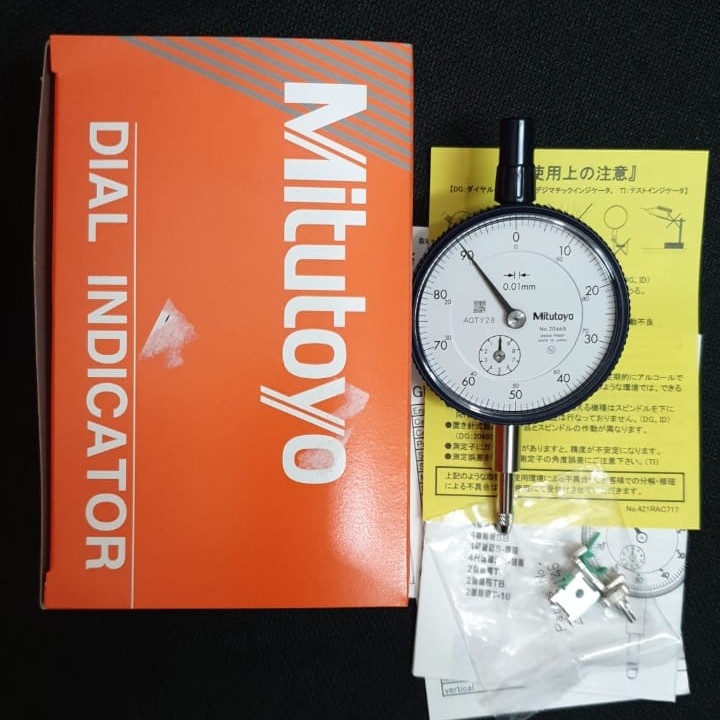

Dial Indicators Mitutoyo Metric Standard Type 2046A 10/0.01mm

Rp559.000

Spesifikasi Detail Dial Indicators Mitutoyo Metric Standard Type 2046A 10/0.01mm:

Model Number: 2046A
Dial Reading: ±0-100
Graduation (mm): 01
Range (range/rev) (mm): 10 (1mm)
Specification Range (mm): 10
Accuracy 1 Rev (μm): ±10
Accuracy 1/10 Rev (μm): ±8
Accuracy Overall (μm): ±13
Accuracy Retrace (μm): ±5
Repeatability (μm): ±5
Measuring Force (N): 1.4

In stock

SKU: 10447724Categories: Alat Ukur, Default Category, Lainnya Brand: Mitutoyo

Description

Spesifikasi Detail Dial Indicators Mitutoyo Metric Standard Type 2046A 10/0.01mm:

Model Number: 2046A
Dial Reading: ±0-100
Graduation (mm): 01
Range (range/rev) (mm): 10 (1mm)
Specification Range (mm): 10
Accuracy 1 Rev (μm): ±10
Accuracy 1/10 Rev (μm): ±8
Accuracy Overall (μm): ±13
Accuracy Retrace (μm): ±5
Repeatability (μm): ±5
Measuring Force (N): 1.4

Additional information

Weight	1 kg
