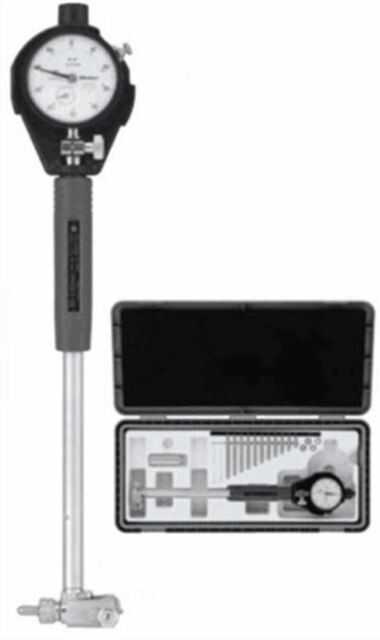

DIAL BORE GAUGE 35-60/0.01MM MITUTOYO 511-712

Ada Stock

Spesifikasi Detail DIAL BORE GAUGE 35-60/0.01MM MITUTOYO 511-712:

  • Range: 35 - 60
  • Graduation: 0.01 mm
  • Stroke of contact point: 1.2 mm
  • Accuracy: 2 µm
  • Accuracy: 2 µm
  • Repeatability: 0,5 µm
  • Number of anvils: 6
  • Measuring depth: 150 mm
  • No. Dial Indicator: 2046AB
  • Digital/Analog: Analog
  • Inch-Metric: Metric
Rp 3.425.000,00

This is a short range application Bore Gauge Set that automatically self-centres via a centring bridge and offers you the following benefits:
It reduces the influence of heat from the operator's hand by 50% by making the grip hollow structured, thereby retaining high accuracy measurement.
Interchangeable washers (0,5 mm thick) are supplied as standard accessories, so you can enable setting in small steps.
Contact points are carbide (>18 mm range), giving you high durability and wear resistance.

Spesifikasi Detail DIAL BORE GAUGE 35-60/0.01MM MITUTOYO 511-712:

  • Range: 35 - 60
  • Graduation: 0.01 mm
  • Stroke of contact point: 1.2 mm
  • Accuracy: 2 µm
  • Accuracy: 2 µm
  • Repeatability: 0,5 µm
  • Number of anvils: 6
  • Measuring depth: 150 mm
  • No. Dial Indicator: 2046AB
  • Digital/Analog: Analog
  • Inch-Metric: Metric
