Description

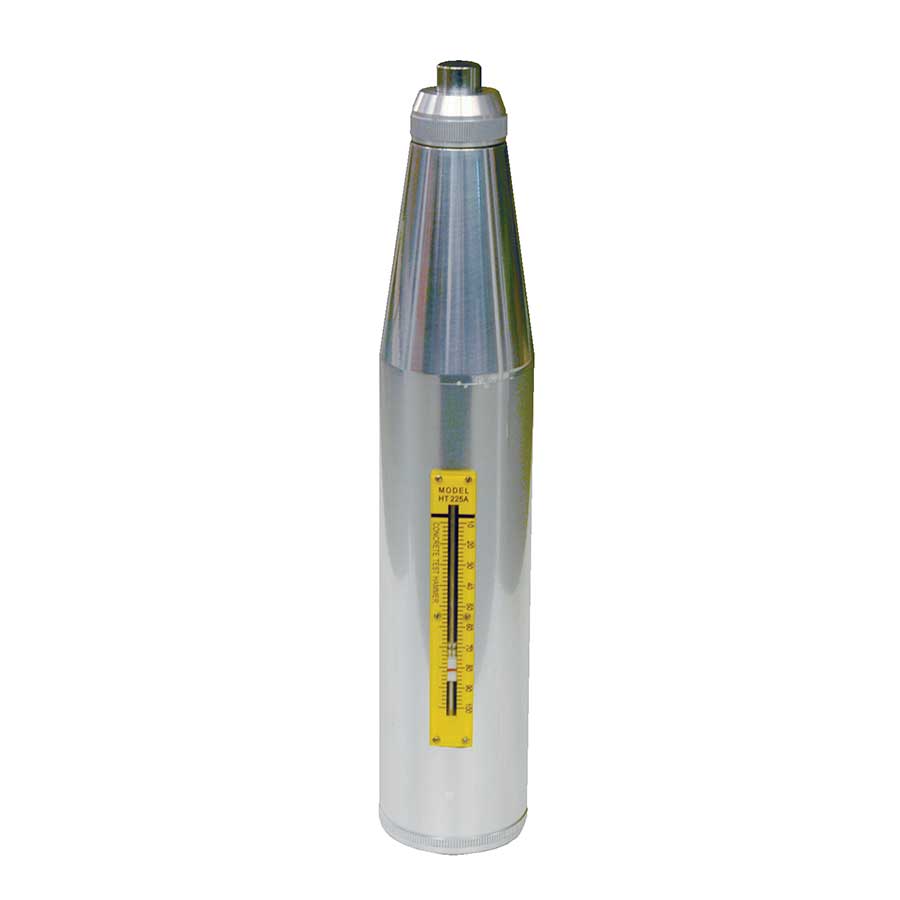

Spesifikasi Detail CONCRETE TESTER KRISBOW HAMMER KW0600454:
| Dimension Unit |
280 X 60 X 60 MM |
| Type |
Concrete Test Hammer |
| Benefit |
– |
| Features |
- The greater the resistance of the concrete, the greater the rebound impact.
- By comparing the values as indicated in the diagram labeled on the Test Hammer, the compressive strength can be found in kg/cm².
- Instruction manual and Abrasive Grinding Wheel are available with the Test Hammer, and Anvil Block (17kgs) for calibrating Hammer is optional.
|
| Specification |
- Concrete Test Hammer
- Measuring Range: 100 to 570 kg/cm2
- Rebound Value Range: 10 to 100 MPA
- Rated Rebound Average on Anvil: 80 +/-2
- Impact Kinetic Energy: 2,207 J
- Spring Rigidity: 7.85 N
- Impact Stroke: 75 mm
- Hardness of the impact Surface between Impact Hammer and Impact Rod: HRC59-63
- Max. Static Friction of the Pointer System: 0.5 to 0.8 N
|
| Item |
Test Hammer |
| Testing Range |
100 to 570 kg/cm2 |
| Interface |
N/A |
| Testing Method |
Our reliable mechanical Concrete Test Hammer is used for non-destructively measuring the resistance |
| Resolution |
N/A |
| Range |
N/A |
| Interface (Usb) |
N/A |
| Impact Energy |
No |
| Accuracy |
+/-2 MPA |
