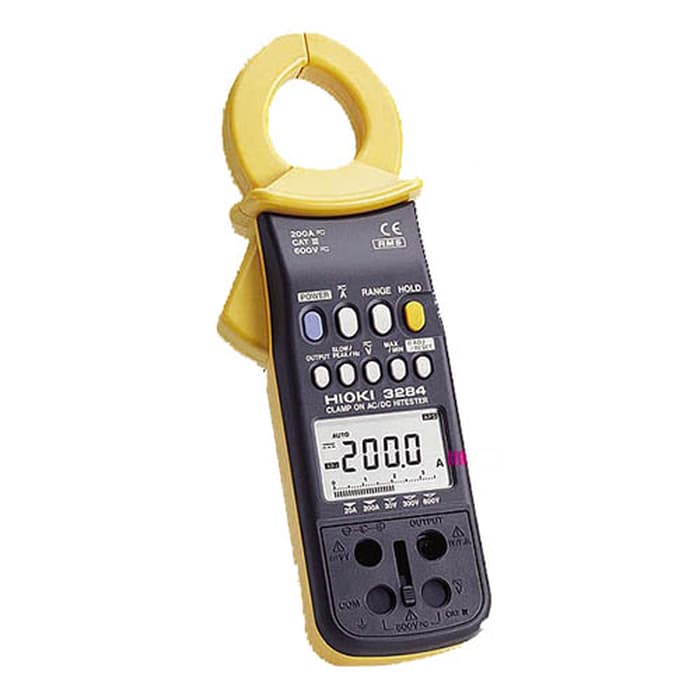

Clamp On Hi Tester AC/DC Hioki 3284

Description

Deskripsi Produk Clamp On Hi Tester AC/DC Hioki 3284

Clamp On Hi Tester AC/DC Hioki 3284

Spesifikasi :

• DC current 20.00/ 200.0 A, Basic accuracy: ±1.3 % rdg. ±3 dgt.
• AC current 20.00/ 200.0 A (10 Hz to 2 kHz, True RMS),
• Basic accuracy 45-66 Hz: ±1.3 % rdg. ±3 dgt.
• DC voltage 30.00 V to 600 V, 3 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt.
• AC voltage 30.00 V to 600 V, 3 ranges (10 to 1 kHz, True RMS),
• Basic accuracy 45-66 Hz: ±1.0 % rdg. ±3 dgt.
• Crest factor 2.5 or less (1.5 at 200 A, 1.7 at 600 V)
• Monitor, Analog output DC, or AC 1 V/ f.s., Level output, Waveform output: DC to 20 kHz bandwidth (±3dB)
• Resistance, Continuity check N/A
• Frequency 1.00 Hz to 1000 Hz, Basic accuracy: ±0.3 % rdg. ±1 dgt.
• Other functions AC+DC mode, Maximum/ Minimum/ Average value record function, Data hold, Peak hold, Auto power off, Auto zero
• Display Display refresh rate: 4 times/s (FAST), 1 time/3s (SLOW), 4 times/s (bar graph)
• Power supply 6F22 (Stacked manganese battery) ×1, Continuous use: 25 hours, or AC adapter 9445-02/-03
• Core jaw dia. φ 33 mm (1.30 in)
• Dimensions and mass 62 mm (2.44 in) W × 230 mm (9.06 in) H × 39 mm (1.54 in) D
• Accessories Test Lead L9207-10 ×1, Carrying Case 9399 ×1, Hand strap ×1, 6F22 (Stacked manganese battery) ×1, Instruction manual ×1
