Deskripsi Produk Clamp On Earth Tester HIOKI FT6380

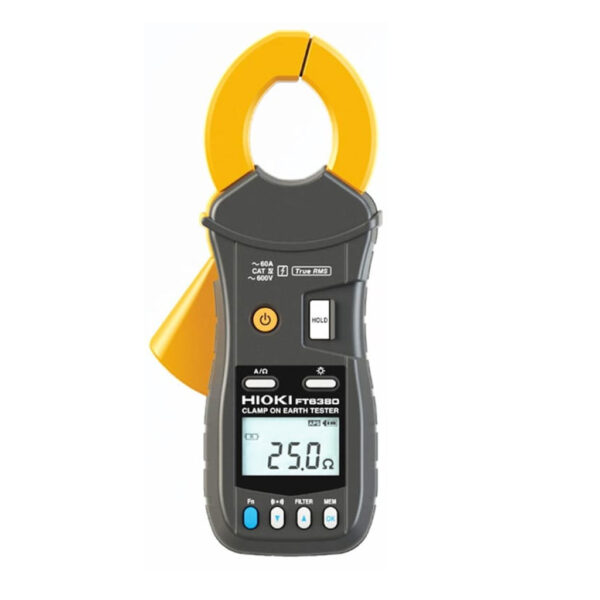

Clamp On Earth Tester HIOKI FT6380

Spesifikasi :

• Country of origin Japan
• Model FT6380
• Measurement Principle The instrument has two cores for voltage injection and current measurement. From the defined voltage and measured current, the total circuit loop resistance is calculated
• Note) For multi grounded systems only. In a multi-grounded system, the larger the number of grounding poles, the more accurate the measured value.
• Earthing resistance 0.20 ? (0.01 ? resolution) to 1600 ? (20 ? resolution), 10 ranges, Zero suppression: Less than 0.02 ?, Accuracy: ±1.5 % rdg. ±0.02 ?
• Max. allowable input AC 100 A continuous, AC 200 A for 2 minutes or shorter (at 50/60 Hz, requires derating at frequency)
• Max. rated voltage to earth AC 600 V CAT IV
• Memory function 2000 data
• Alarm function For resistance measurement and current measurement, Beeps when measured value is less than or greater than threshold
• Other functions Data hold, Back light, Filter, Auto power save
• Display Digital LCD, max. 2000 dgt., Display refresh rate: 500 msec (2 times/second)
• Waterproof and dustproof IP40 (EN60529: 1991+A1: 2000) with clamp sensor closed
• Communication interface Model FT6381 only: Bluetooth® v2.1+EDR, Compatibility for Smartphone / Tablet, Displays measured values on the screen of an Android™ handset via Bluetooth, Applicable OS: Android™ 2.1 or later
• Power supply LR6 (AA) alkaline batteries ×2, Max. rated power: 450 mVA, Continuous use : 35 hr (in-house testing conditions)

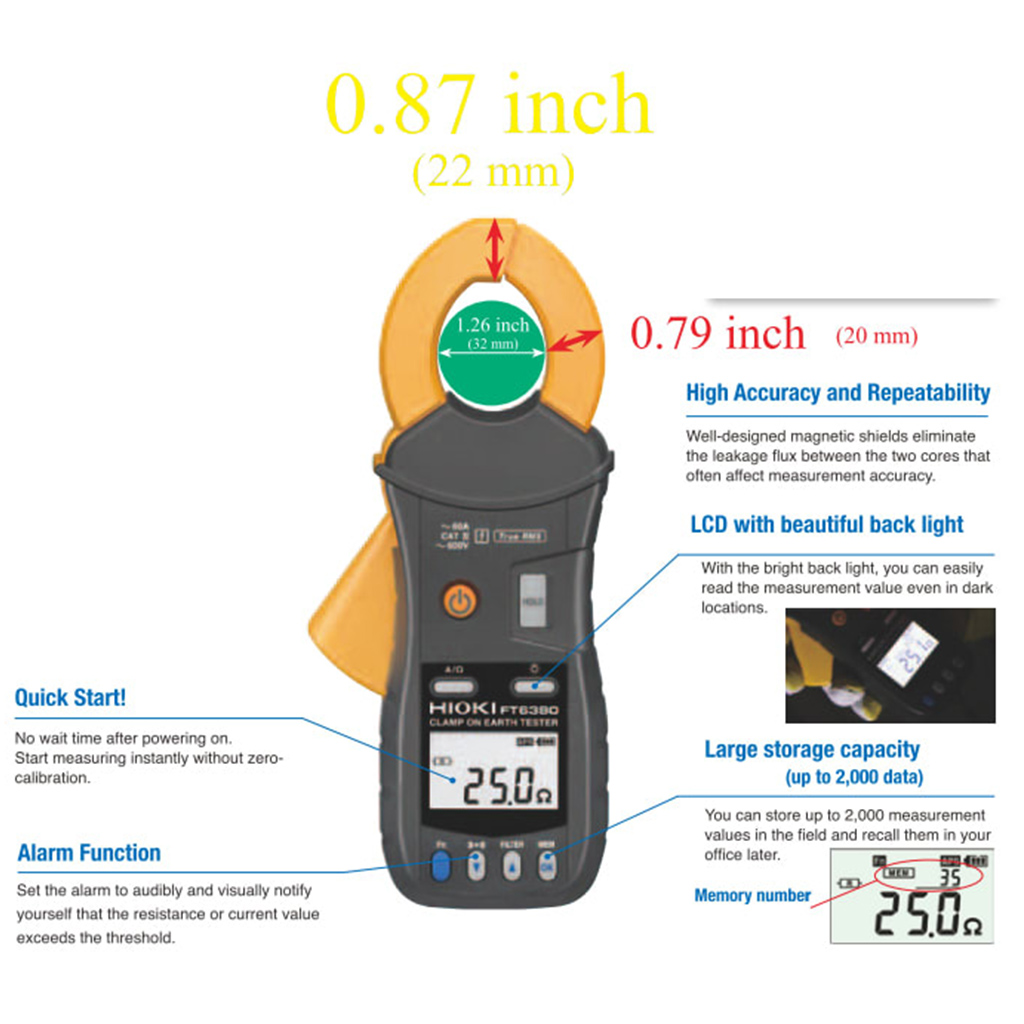

• Core jaw diameter ? 32 mm (1.26 in)
• Dimensions and mass 73 mm (2.87 in) W × 218 mm (8.58 in) H × 43 mm (1.69 in) D
• Accessories Carrying case ×1, Resistance check loop ×1, Strap ×1, LR06 alkaline battery ×2, Instruction manual ×1
