Description
Deskripsi Produk Clamp Meter Digital AC/ DC 1000A Constant ADC1000 :

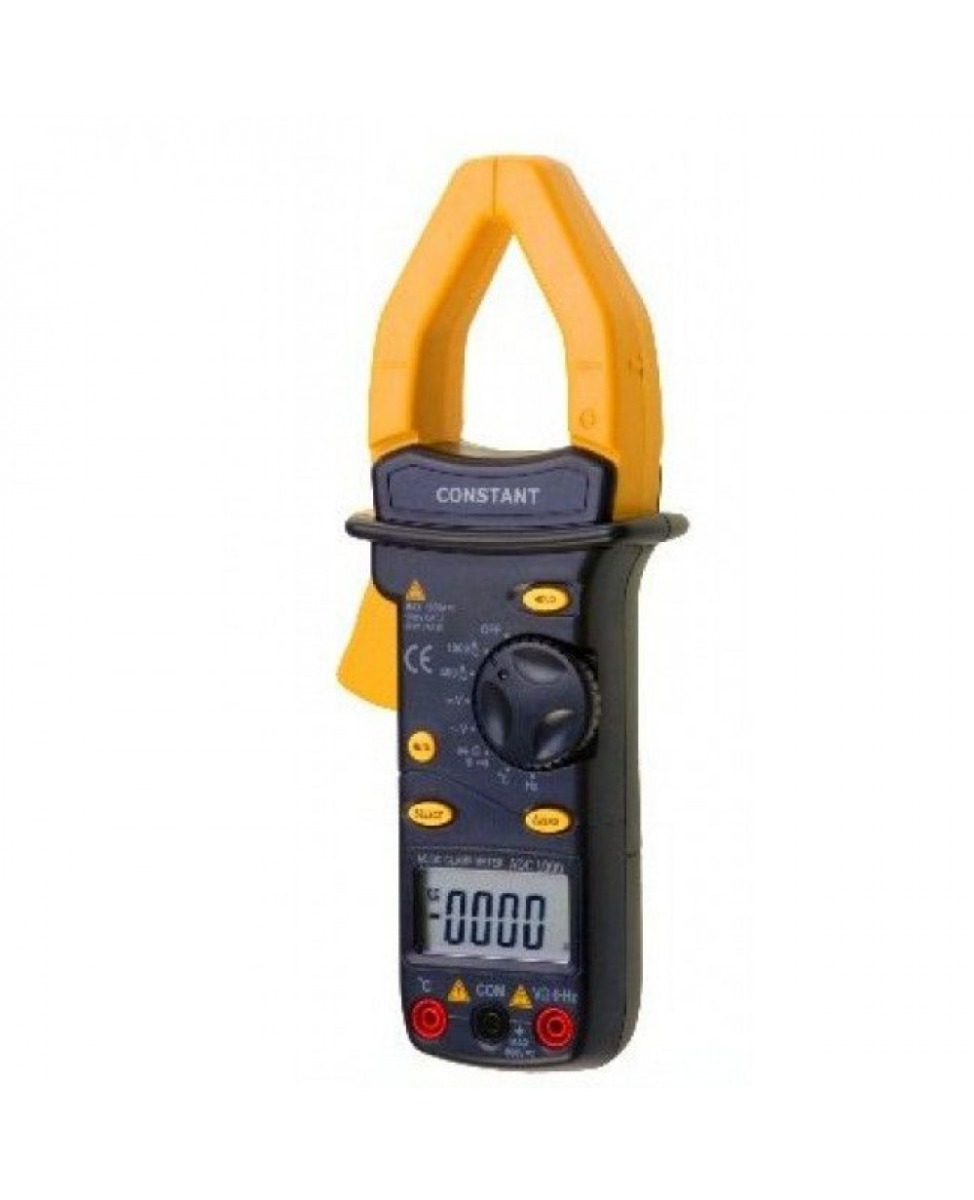

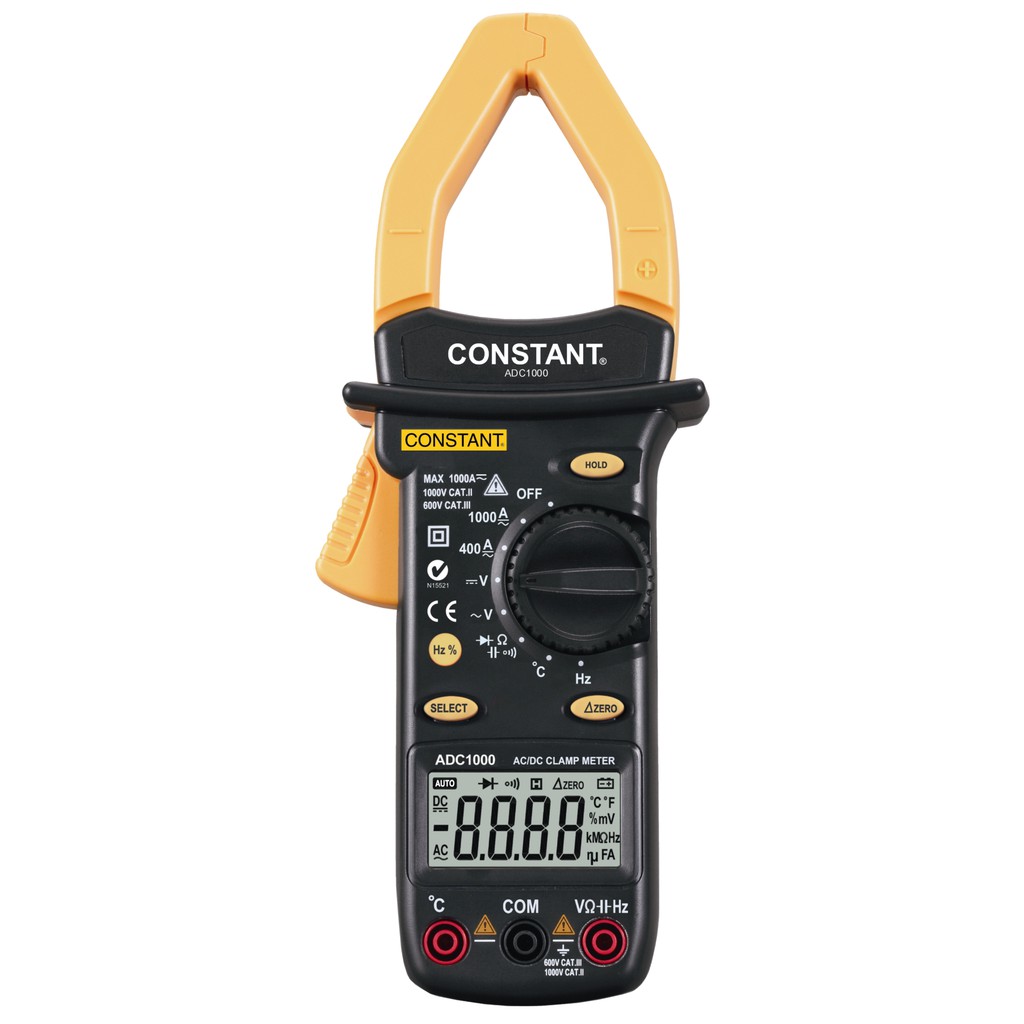

Clamp Meter Digital AC/ DC 1000A Constant ADC1000
| SPESIFIKASI | ||
| FUNGSI | RENTANG | AKURASI |
| Arus AC | 400/1000A | ±(3.0% rdg + 3 dgts) |
| Arus DC | 400/1000A | ±(3.0% rdg + 3 dgts) |
| Tegangan AC |
4/40/400A | ±(0.8% rdg + 5 dgts) |
| 700V | ±(1.0% rdg + 10 dgts) | |
| Tegangan DC |
0.4/4/40/400V | ±(0.7% rdg + 1 dgt) |
| 1000V | ±(0.8% rdg + 3 dgts) | |
| Input Impedansi | 10MΩ (AC and DC Voltage) | |
| Resistansi |
400/4k/40k/400k/4MΩ | ±(1.2% rdg ± 1 dgt) |
| 40MΩ | ±(2.0% rdg + 3 dgts) | |
| Kapasitansi | 4n/40n/400n/4µ/40µF | ±(4.0% rdg + 10 dgts) |
| Temperatur
|
-40°C ~ 0°C | ±(1.0% rdg + 6 dgts) |
| 0°C ~ 400°C | ±(1.0% rdg + 3 dgts) | |
| 400°C ~ 750°C | ±(1.0% rdg + 5 dgts) | |
| Frekuensi | 40/400/4k/40k/100kHz | ±(2.0% rdg + 1 dgt) |
| Siklus | 0.1% – 99.9% | |
| Diode | Read approximately forward voltage drop of the diode | |
| Kontiunitas | Jika kontinuitas hidup ≤ 30Ω, built-in pada buzzer akan berbunyi | |
| Tampilan | 3¾ digits, 3999 counts | |
| Baterai | 9V | |
| Dimensi / Berat | H250 x W99 x D43mm / Approx. 480g | |
Clamp Meter Digital AC/ DC 1000A Constant ADC1000
