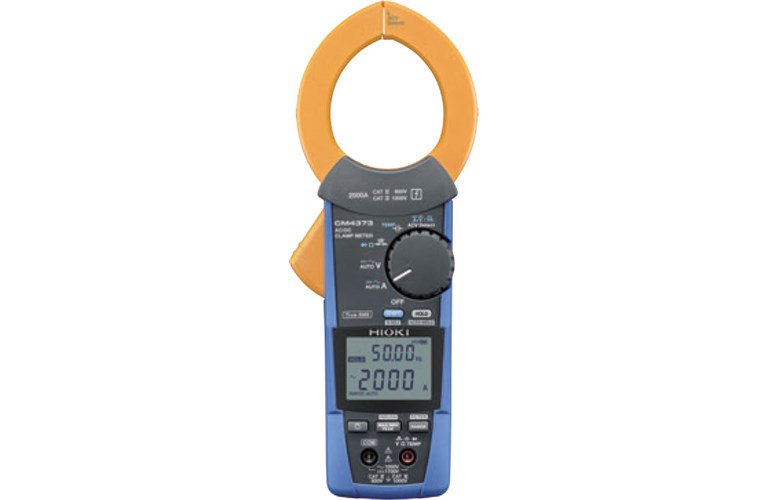

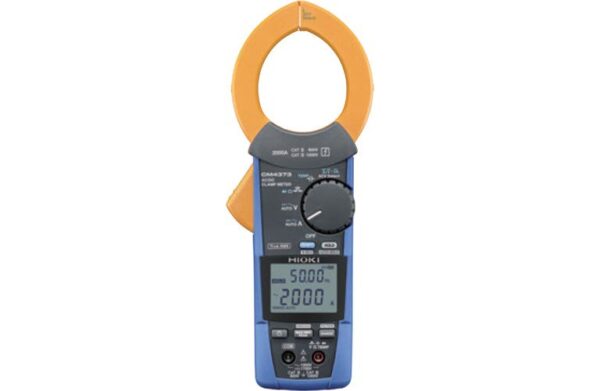

AC/DC Clamp Meter Hioki CM4373

Description

Deskripsi Produk : AC/DC Clamp Meter Hioki CM4373

AC/DC Clamp Meter Hioki CM4373

Spesifikasi :
DC Current 600.0 A/2000 A, Basic accuracy: 1.3% rdg. 0.3 A (600 A range)
AC Current 600.0 A/2000 A (10 Hz to 1 kHz, True RMS), Basic accuracy: 1.3% rdg. 0.3 A (at 600 A)
Crest factor 600.0 A range: 3 or less,
2000 A range: 2.84 or less
DC+AC Current 600.0 A/2000 A (10 Hz to 1 kHz, True RMS), Basic accuracy: 1.3% rdg. 1.3 A (at 600 A)
DC Voltage 600.0 mV to 1500 V, 5 ranges, Basic accuracy: 0.5% rdg. 3 dgt.
AC Voltage 6.000 V to 1000 V, 4 ranges (15 Hz to 1 kHz, True RMS), Basic accuracy: 0.9% rdg. 3 dgt.
DC+AC Voltage 6.000 V to 1000 V, 4 ranges, Basic accuracy: 1.0% rdg. 7 dgt.
Resistance 600.0 to 600.0 k, 4 ranges, Basic accuracy: 0.7% rdg. 5 dgt.
Electrostatic capacity 1.000 F to 1000 F, 4 ranges, Basic accuracy: 1.9% rdg. 5 dgt.
Frequency 9.999 Hz to 999.9 Hz, Basic accuracy: 0.1% rdg. 1 dgt.
Temperature (K) -40.0 to 400.0 C, add temperature probe accuracy to basic accuracy of 0.5% rdg. 3.0 C
Voltage detection Hi: 40 V to 600 V AC, Lo: 80 V to 600 V AC, 50/60 Hz
Other functions Automatic AC/DC detection, Plus/Minus judgement function of DC A, DC V, Max/Min/Average/PEAK MAX/ PEAK MIN value display, Filter function, Display value hold, Auto hold, Back light, Auto-power save, Buzzer sounds, Zero-adjustment
Dustproof, waterproof Grip: IP54 (when measuring an insulated conductor only), Jaw (the current sensor portion of the instrument)/ barrier: IP50 *Risk of electric shock from the conductor being measured increases when wet.
Power supply LR03 Alkaline battery 2, Continuous use 45 hr (Backlight OFF)
Core jaw diameter 92 mm (3.62 in) W18 mm (0.71 in) D, 55 mm (2.17 in)
Accessories TEST LEAD L9207-10, CARRYING CASE C0203, LR03 Alkaline battery 2, Instruction Manual1

AC/DC Clamp Meter Hioki CM4373
