Deskripsi Produk Clamp Meter 3 Phase Digital Power With Power Factor Constant 260W :

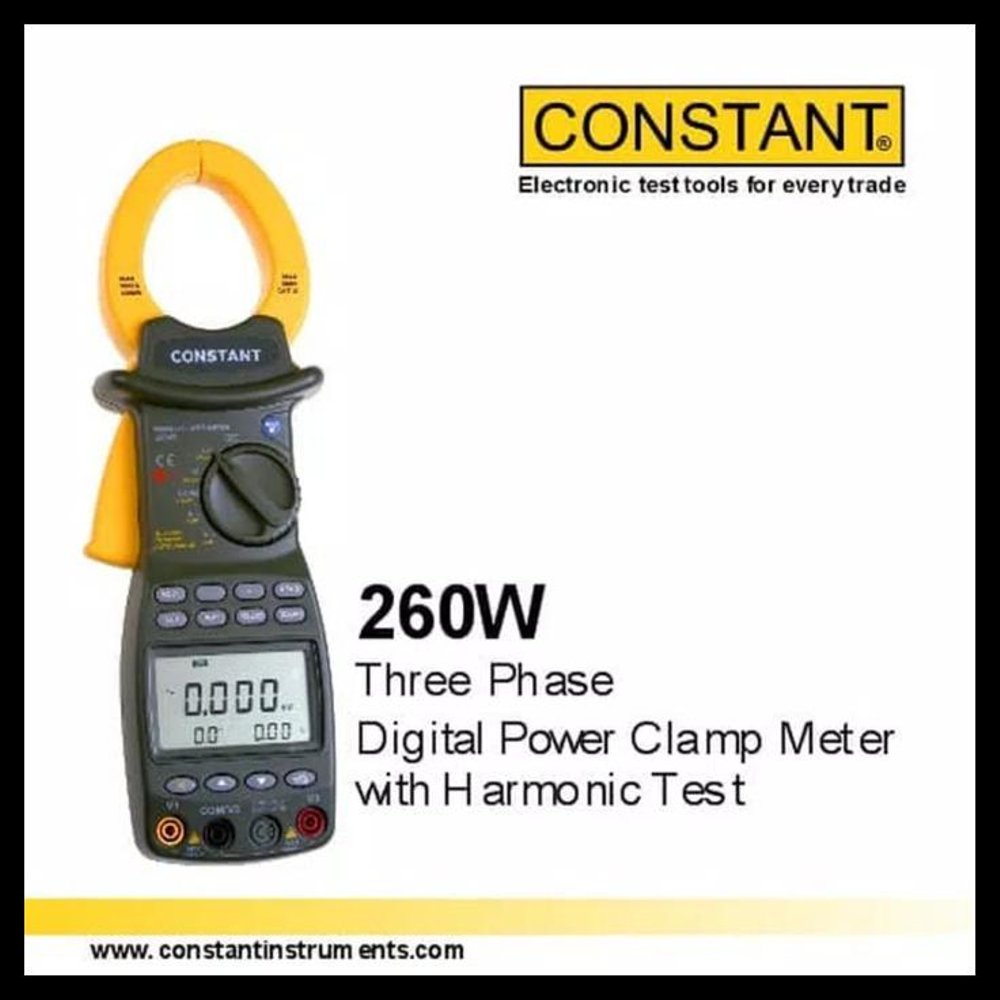

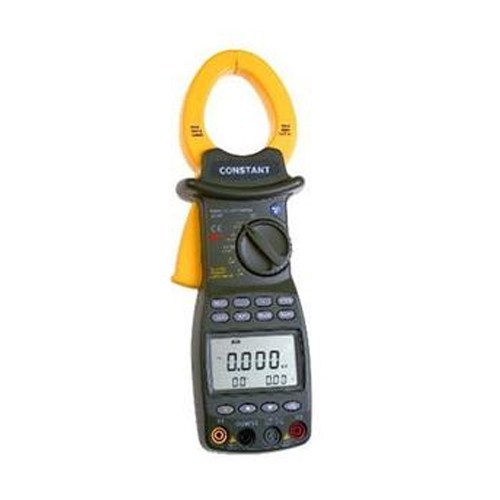

Clamp Meter 3 Phase Digital Power With Power Factor Constant 260W
Spesifikasi :
| Max. Common Mode Voltage | 600 VAC RMS | |
| Display | LCD | |
| Max. Reading | 6000 | |
| Range Selection | Automatic | |
| Frequency Detection | Automatic | |
| Over-range Display | “OL” | |
| Data Hold | “HOLD” | |
| Power Supply | 4 x 1.5V AA battery | |
| Power Consumption | 250mW | |
| Storage Temperature | -20 ~ 70°C | |
| Operating Temperature | 0 ~ 40°C | |
| Temperature Coeficient | 0.05x(specified accuracy) per °C | |
| Electromagnetic Compatibility | in an RF field of 3V/m, accuracy = specified accuracy. Otherwise accuracy is unspecifieced | |
| Operating Altitude | 2000m CAT III 600V; 3000m CAT II 600V | |
| Store Altitude | 12000m | |
| Dimensions | 300x103x51mm | |
| Weight | 500g (with batteries) | |
| Ambient Temperature | 18 ~ 28°C | |
| Humidity | 80% | |
| Current & Voltage Frequency | 45 ~ 65Hz | |
| FUNCTION | RANGE | ACCURACY |
| AC Voltage | 80/180/400/600V | ±(1%+5) |
| AC Current | 20/40/100/200/450/1000A | ±(2%+5) |
| Power Factor | 0.3 ~ 1 (capasitive/inductive) | ±(0.02%+2) |
| Single-Phase Active Power | 30/60/120/150/300/600kW | ±(3%+5) |
| Three-Phase Active Power | 3/12/30/120/150/600kVA | ±(3%+5) |
| Frequency | 30 ~ 1kHz | ±(0.5%+1) graduation |
| Passive Power | 3/12/30/120/150/600kVAr | ±(3%+5) |
| Harmonic Test |
1 | ±(3%+10) |
| 2~6 | ±(3.5%+10) | |
| 7~8 | ±(4.5%+10) | |
| 9~10 | ±(5%+10) | |
| 11~15 | ±(7%+10) | |
| 16~20 | ±(10%+10) | |
Clamp Meter 3 Phase Digital Power With Power Factor Constant 260W
