BORE GAGE 50-150/0.01MM Mitutoyo 511-713-20

Fitur BORE GAGE 50-150/0.01MM Mitutoyo 511-713-20:

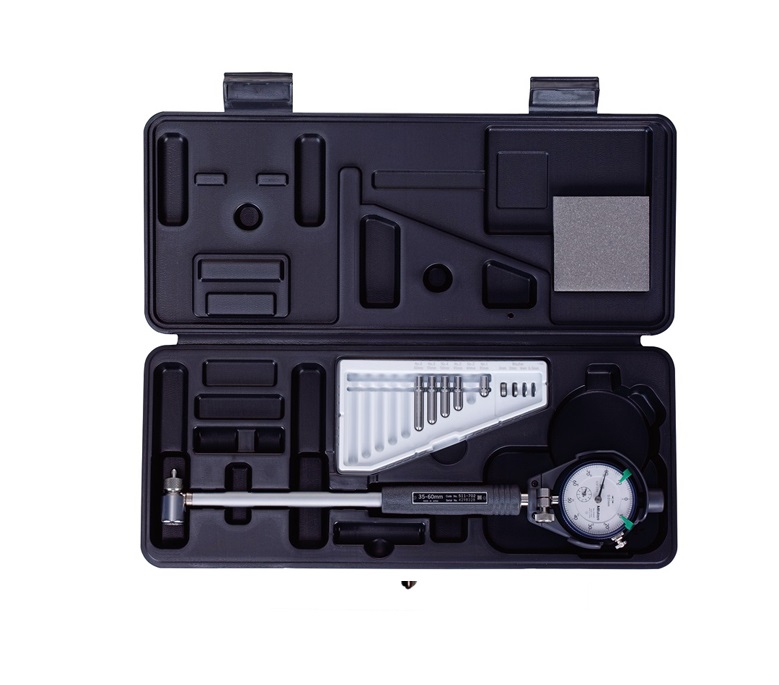

• Supplied boxed with interchangeable anvils and washers.
• Allows inside diameter measurement with high accuracy.
• Longer effective stroke (compared with the conventional product)
• Carbide contact points ensure high durability and wear resistance.
• Sponge-like structure on handle reduces heat transfer from the operators hand b y 50%.
• Interchangeable washers 0.5mm thick are supplied as standard accessories to enable setting in small steps.
• Optional extension rods can be attached for measuring deep holes.
• A Bore Gauge Checker and a range of Setting Rings are available to aid in accurately setting a gauge before making a measurement.

Specifications BORE GAGE 50-150/0.01MM Mitutoyo 511-713-20:

• Range : 50-150 mm
• Stroke of contact point : 1.6 mm
• Measuring force : 5N or less
• Guide force : 10N or less
• Graduation/Resolution : 0.01 mm
