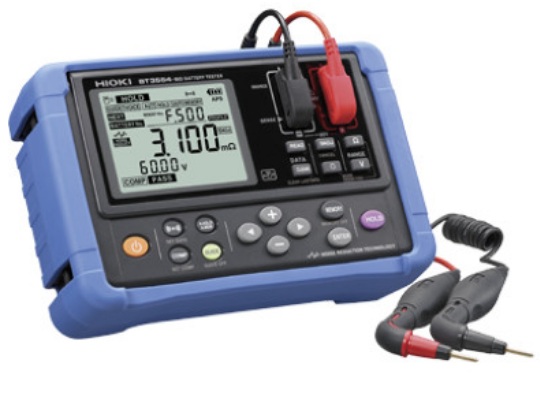

Battery Tester (Bundled with Pin Type Lead L2020) Hioki BT3554-52
Rp 41.500.000,00
In stock
SKU
BT3554-52
Spesifikasi Produk Battery Tester (Bundled with Pin Type Lead L2020) Hioki BT3554-52
SKU : BT3554-52
Battery Tester (Bundled with Pin Type Lead L2020) Hioki BT3554-52
Dapatkan Produk Hioki dengan harga terbaik hanya di alatproyek.com / hubungi 021-29986624, 081808090252
Deskripsi Produk Battery Tester (Bundled with Pin Type Lead L2020) Hioki BT3554-52
Battery Tester (Bundled with Pin Type Lead L2020) Hioki BT3554-52
Fitur :
- Battery measurement can be performed while the battery is connected to its host device, without taking it offline
- Measure and save data in as fast as 2 seconds, a 60% improvement from the legacy 3554
- Instantaneously diagnose battery degradation (PASS, WARNING, FAIL) by measuring internal resistance and voltage*1
- Noise reduction technology improves noise resistance
- Screen and audio*2 guidance simplifies measurement
- Measurement data is linked to site information and saved, reducing management man-hours
- A variety of measurement data can be centrally managed using Hioki’s GENNECT Cross app*3
- New protector delivers better ergonomic hold and durability in the field.
Spesifikasi :
- Resistance measurement range 3 mΩ (max. display 3.100 mΩ, resolution 1 μΩ) to 3 Ω (max. display 3.100 Ω, resolution 1 mΩ), 4 ranges
- Accuracy: ±0.8 % rdg ±6 dgt (3 mΩ range: ±1.0 % rdg ±8 dgt)
- Testing source frequency: 1 kHz ±30 Hz
- With function for avoiding noise frequency enabled: 1 kHz ±80 Hz
- Testing current: 160 mA (3m/30 mΩ range), 16 mA (300 mΩ range), 1.6 mA (3 Ω range)
- Open terminal Voltage: 5 V peak
- Voltage measurement range ± 6 V (max. display ±6.000 V, resolution: 1 mV) to ± 60 V (max. display ±60.00 V, resolution: 10 mV), 2 ranges, Accuracy: ±0.08 % rdg ±6 dgt
- Temperature measurement accuracy Measurement range: -10°C to 60°C (14°F to 140°F), Maximum display: 60.0°C (140.0°F), Resolution 0.1°C (0.1°F), Measurement accuracy*: ±1.0°C (±1.8°F)
- BT3554-50 standalone accuracy with simulated input: ±0.5°C (±0.9°F)
- Accessories Carrying Case C1014 ×1, Protector Z5041 ×1, Fuse Set Z5050 ×1, 0 Adj Board ×1, Neck strap ×1, USB cable ×1, Application software CD (GENNECT One) ×1, AA alkaline battery (LR6) ×8, User Manual ×1, With Pin Type Lead L2020
