Deskripsi Produk Alat Ukur Getaran Digital Vibration Meter WINTACT WT63B

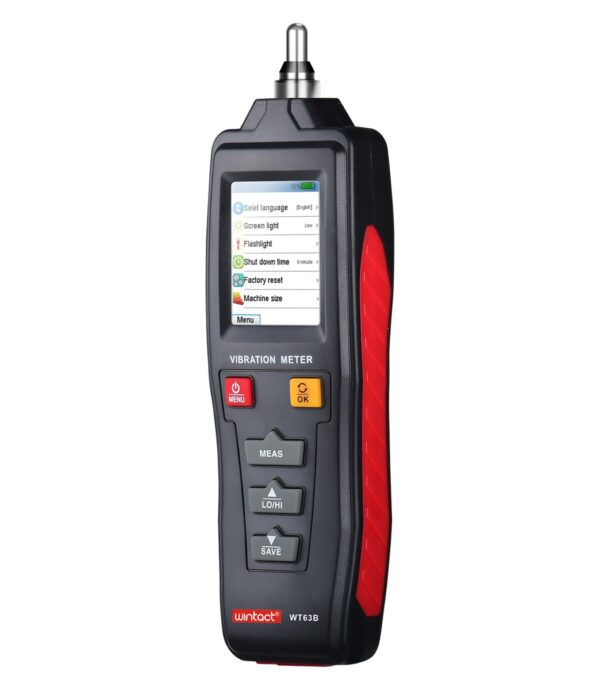

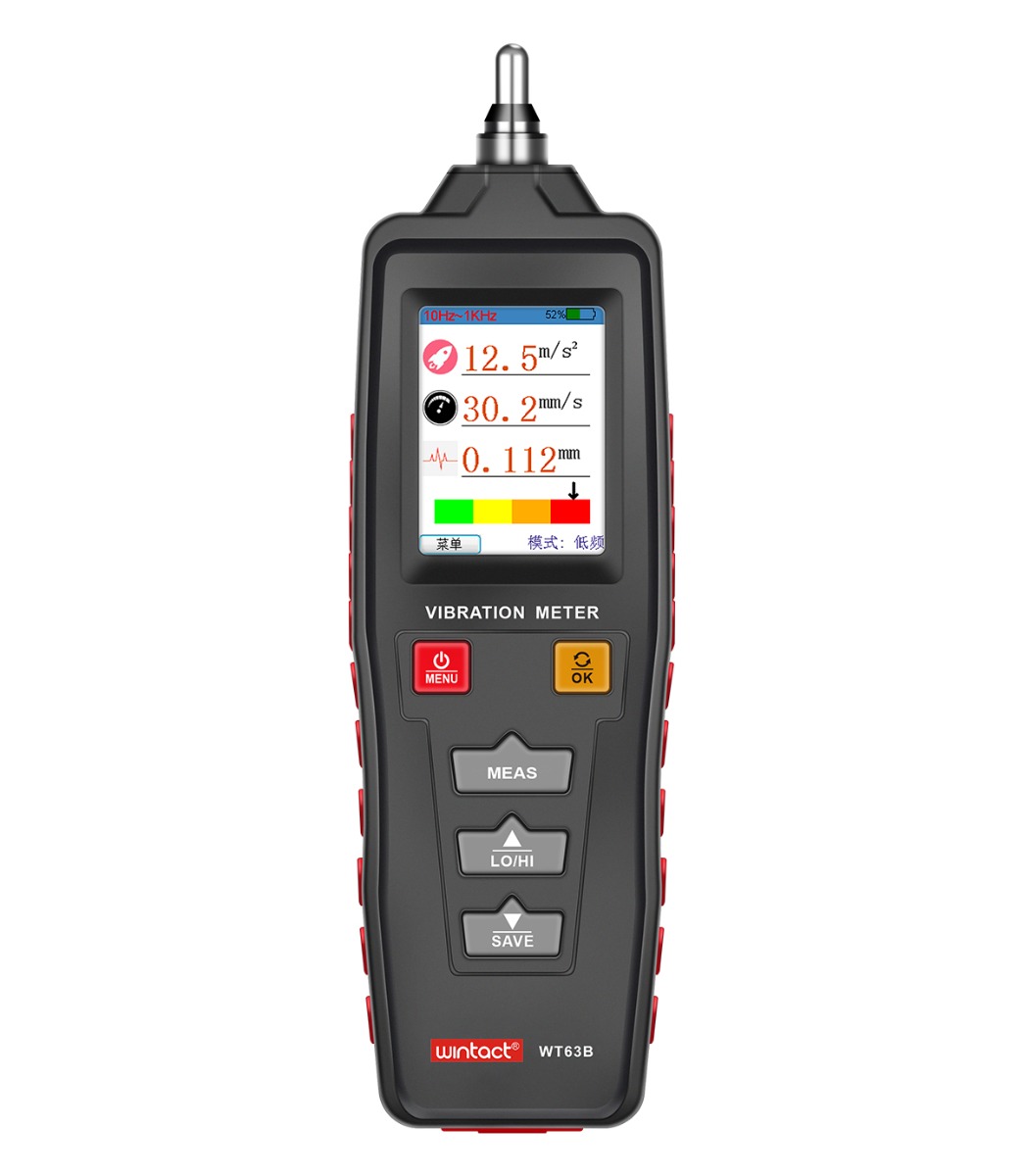

Alat Ukur Getaran Digital Vibration Meter WINTACT WT63B
This product is based on piezoelectric effect of artificially polarized ceramics. It is suitable for conventional vibration measurement of mechanical equipment, especially for rotating and reciprocating machinery. It can measure vibration displacement, velocity and acceleration, and is widely used in fields like machinery manufacturing, electric metallurgy and general aerospace.
This Vibration Meter possesses the following features:
1. Full display.
2. Screen flipping.
3. Switch acceleration measurement between high and low frequency: high frequency (1KHz~10KHz) /low frequency (20Hz~1KHz) Curve display.
5. Store and view files.
6. Power indicator.
7. Double measurement button.
8. Flashlight.
9. Screen brightness.
10. Select Chinese/English.
11. Shutdown time setting; Machinery grade.
Technical parameters | Technical indicators |
Vibration acquisition | Piezoelectric ceramic accelerometer (shear type) |
Measurement range | Acceleration:0.1~199.9m/s2 |
Velocity:0.1~199.9mm/s | |
Displacement:0.001~1.999mm | |
Measurement accuracy |
Vibration displacement:0.01~0.02mm, |
Vibration velocity:0~2.0mm/s, |
|
Vibration acceleration:0~2.0m/s2, |
|
Frequency range of acceleration measurement |
High frequency Low frequency :1KHz~15KHz (HI) |
Frequency range of speed measurement | 20Hz~1KHz (LO) |
Frequency range of displacement measurement | 20Hz~1KHz (LO) |
LCD display | color display |
Shuffle interval of data display | 1 second |
Maximum groups of data storage | 7 groups |
Power supply | 1.5V AAA battery*2 |
Temperature range for operation | 0~40℃ |
Humidity range for operation | 30~90%RH |
Size | 180x54x30mm |
Weight | 250G(with batteries) |
Alat Ukur Getaran Digital Vibration Meter WINTACT WT63B
