Deskripsi Produk Alat Ukur Digital Ultrasonic Thickness Gauge WINTACT WT130A

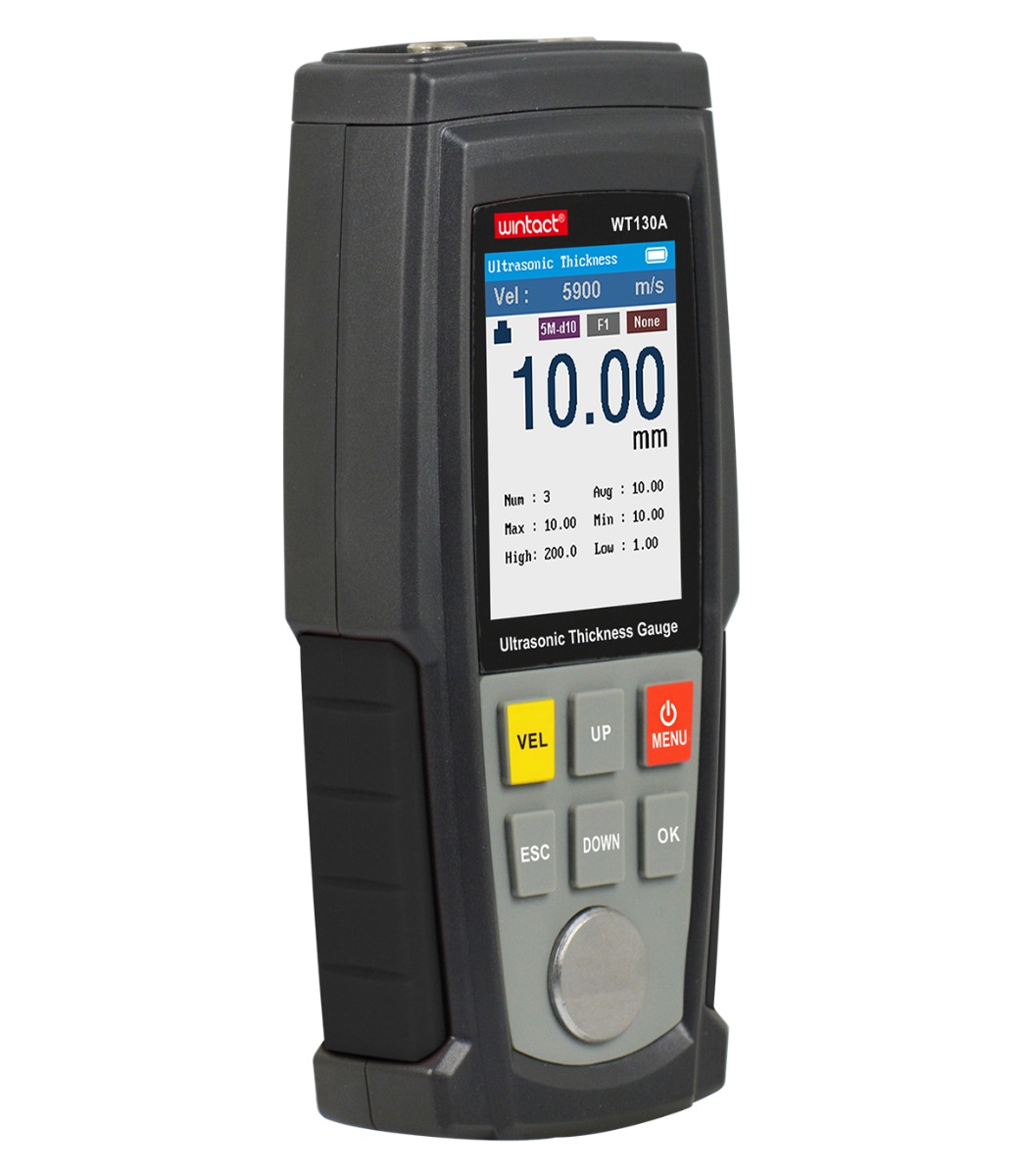

Alat Ukur Digital Ultrasonic Thickness Gauge WINTACT WT130A
The intelligent and hand-held ultrasonic thickness gauge is controlled by a microprocessor, which can measure thickness and sound speed of various materials quickly, accurately and without damage by ultrasonic measurement. This instrument is capable of accurate measurement for different materials or parts in industrial production, as well as monitoring pipelines and pressure vessels of production equipment, and corrosion degree of various parts in use. It can also be widely used in manufacturing, metal processing, commodity inspection and other testing areas. Any material that allows ultrasonic to transmit at a constant speed and that is distinguishable from waves reflected from the back side is applicable to this instrument.
Ultrasonic Thickness Gauge possesses the following features:
1.Menu operation
2.Color screen HD display
3.Storage function
4.Screen brightness selection
5.Automatic shutdown selection function
6.Probe optional
| Measuring range | 1.00～300.0mm |
| Data storage | 1500 |
| Probe selection | × |
| Operation frequency | 5MHz |
| Measurement error | ±(0.5%H+0.05)mm |
| Resolution |
0.01mm(1.00 to 99.99mm) |
| Lower limit of pipe measurement | Φ20x3mm (steel) |
| Adjustment range of sound speed | 1000～9999m/s |
| Temperature range of operation | 0～40℃ |
| Battery | 3 Ni-MH rechargeable batteries of 1.2V |
| USB charging | 5V 1A |
| Dimensions | 65x146x30mm |
| Weight | 130G |
| Probe | Measurement parameters |

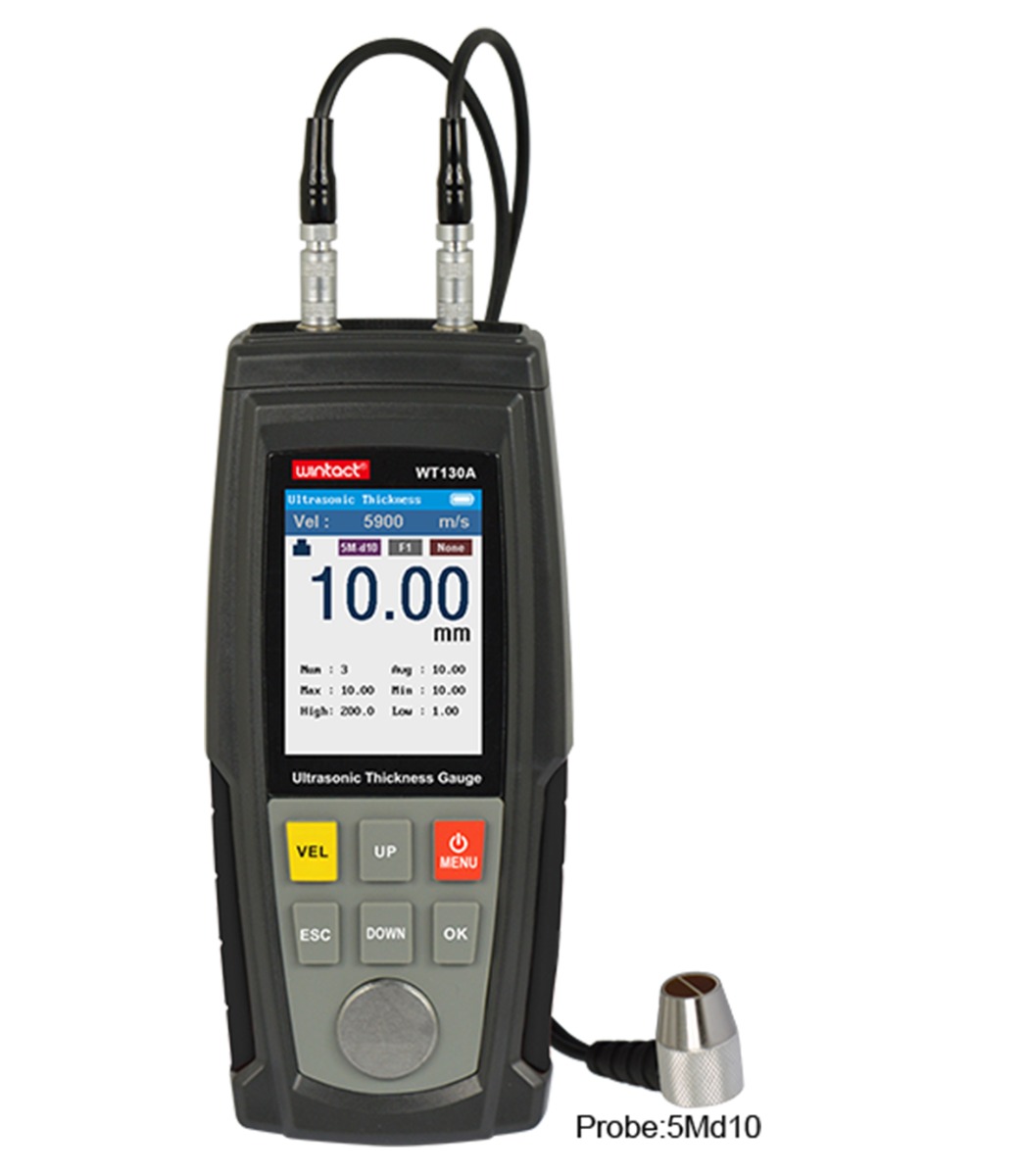

| 5Md10 | 1.0～300.0mm |
| 5Md6 | 1.0～50.0mm |
| 2.5M | 1.2～300.0mm |
| High temperature | 1.2～300.0mm |
Alat Ukur Digital Ultrasonic Thickness Gauge WINTACT WT130A
