Terminator Hioki 9690-04
Spesifikasi Produk : Terminator Hioki 9690-04
SKU : 9690-04
Size : 26W × 46H × 19D mm
Terminator Hioki 9690-04
Dapatkan Produk Hioki dengan harga terbaik hanya di Alatproyek.com / hubungi 021-29986622 s/d 24, 081808090252
Deskripsi Produk : Terminator Hioki 9690-04
Terminator Hioki 9690-04
Spesifikasi :

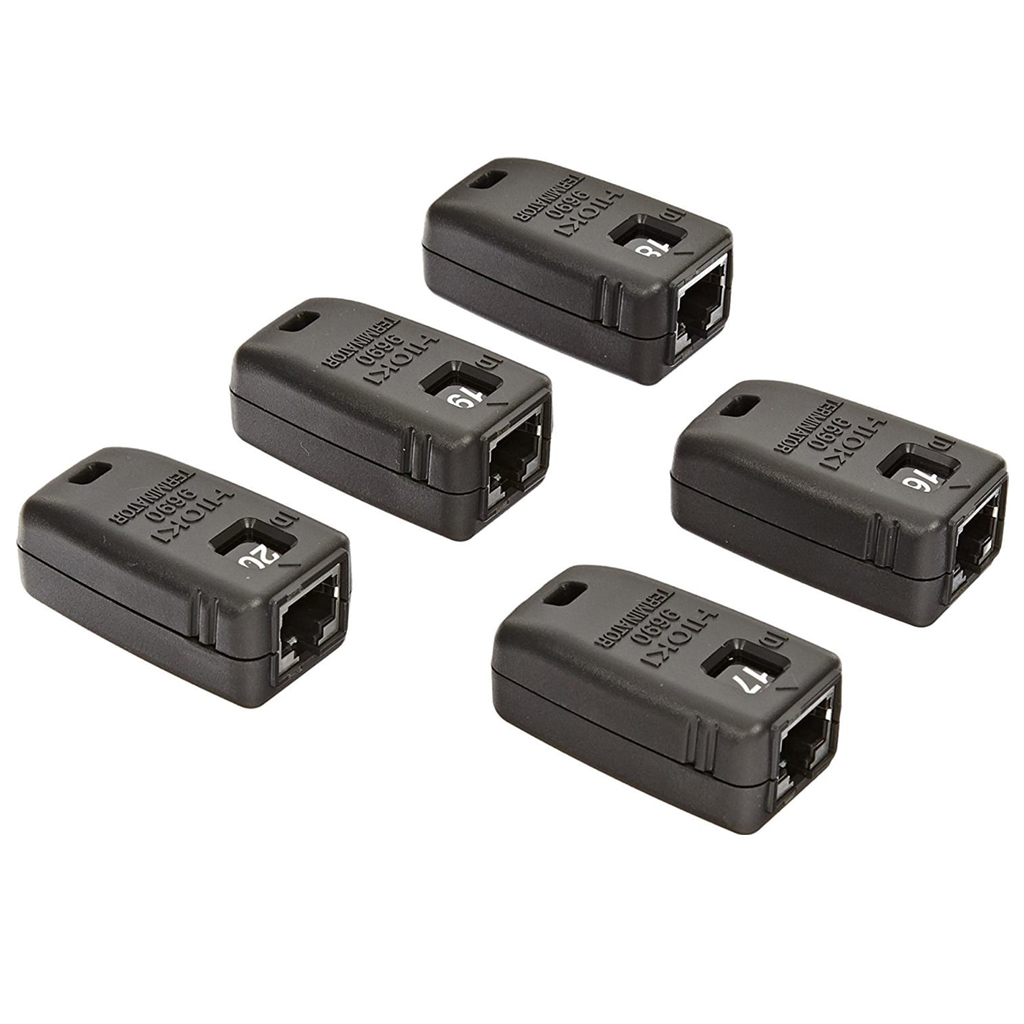

The TERMINATOR is used for testing cables with the 3665 LAN CABLE HiTESTER only
Circuit type: Resistance network
Measurable cable and connector types: Twisted-pair cables: 100 Ω characteristic impedance
shielded or unshielded: CAT3, CAT4, CAT5, CAT5e, CAT6 RJ-45 connector
ID number: 16 to 20: Model 9690-04 (sold in 5-piece sets)
Operating temperature and humidity: 0 to 40°C (32 to 104°F), 80%RH or less (non-condensating)
Storage temperature and humidity: -10 to 50°C (14 to 122°F), 80%RH or less (non-condensating)
Operating environment: Indoors, altitude up to 2000 m (6562-ft.)
Terminator Hioki 9690-04
