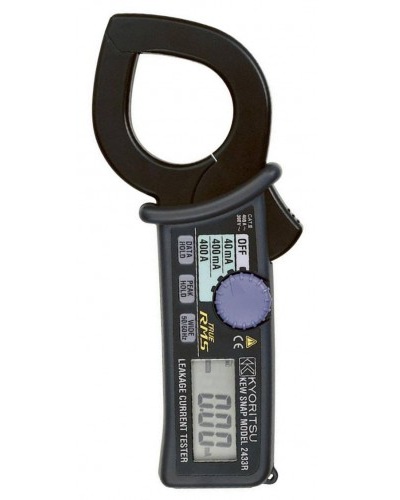

Tang Ampere CLAMP METER AC 400A TRUE RMS KYORITSU 2433R

Deskripsi Produk Tang Ampere CLAMP METER AC 400A TRUE RMS KYORITSU 2433R

Tang Ampere CLAMP METER AC 400A TRUE RMS KYORITSU 2433R

Spesifikasi :

• AC A
• (WIDE) 40/400mA/400A
• |1%rdg5dgt [50/60Hz],
• |2.5%rdg10dgt [20Hz~1kHz] (40/400mA)
• |1%rdg5dgt [50/60Hz],
• |2.5%rdg10dgt [40Hz~1kHz] (0~300A)
• |2%rdg [50/60Hz],
• |5%rdg [40Hz~1kHz] (300.1~399.9A)
• Frequency Response 20Hz~1kHz [40Hz~1kHz:400A]
• Maximum
• Circuit Voltage 600V AC/DC (between line/neutral)
• 300V AC/DC (against earth)
• Conductor Size 40mm max.
• Safety Standard IEC 61010-1 CAT.III 300V Pollution Degree 2
• IEC 61010-2-032
• Effect of External
• Stray Magnetic Field 10mA AC approx. in proximity to a 15mm-dia
• conductor carrying 100A AC
• Withstand Voltage 3700V AC for 1 minute
• Response Time Approx. 2 seconds
• Power Source Two R03 or equivalent (DC1.5V) batteries
• Dimensions 185(L) 81(W) 32(D)mm
• Accessories 9052 (Carrying Case) R03 (1.5V) 2
• Instruction Manual
• Optional 8008 (Multi-Tran)*

Tang Ampere CLAMP METER AC 400A TRUE RMS KYORITSU 2433R
