Pin Type Lead Hioki 9465-10
Spesifikasi Produk : Pin Type Lead Hioki 9465-10
SKU : 9465-10
Size : 2.5H x 8.0L x 6.25W IN
Pin Type Lead Hioki 9465-10
Dapatkan Produk Hioki dengan harga terbaik hanya di Alatproyek.com / hubungi 021-29986622 s/d 24, 081808090252
Deskripsi Produk : Pin Type Lead Hioki 9465-10
Pin Type Lead Hioki 9465-10
Spesifikasi :

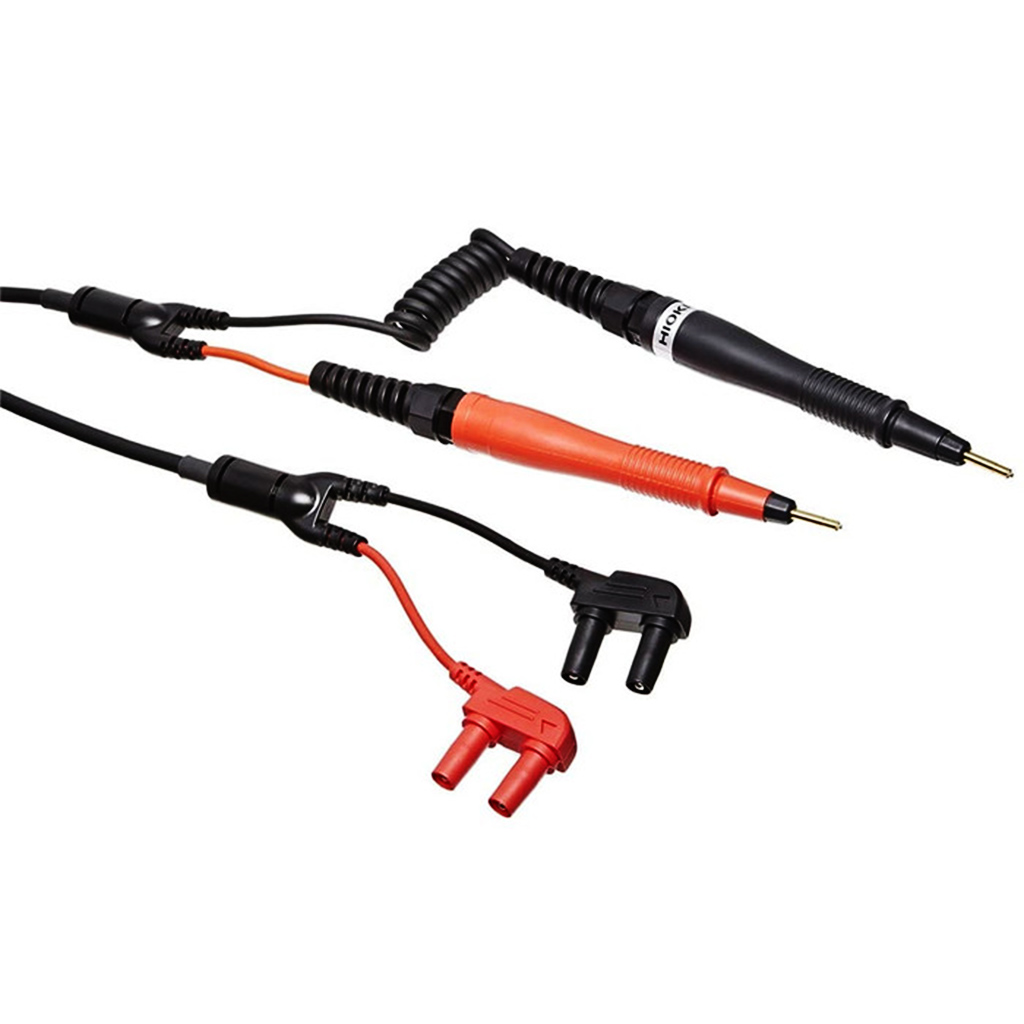

The HIOKI 9465-10 is a Measurement Probe for use with battery hi-tester 3554. The standard pin type leads probe with the single test pin on each lead has been fortified to withstand even the toughest use.
The 9465-10 PIN TYPE LEAD has a four-terminal structure that can be used in small spaces where there may be difficulty in contacting an object to be measured, such as during emergency battery maintenance.
Fitur :
Pin Type 4 Terminal Probe
for use with battery hi-tester 3554
Spesifikasi :
General Specifications
Maximum rated voltage to earth 33 Vrms or less, 46.7 Vp AC or less and 70 V DC or less
Maximum input current AC/DC 2 A continuous
Operating temperature and humidity 0°C to 40°C (32°F to 104°F), 80%RH or less (no condensation)
Storage temperature and humidity -10°C to 50°C (14°C to 122°C), 80%RH or less (no condensation)
Operating Environment Altitude up to 2000 m (6562 feet), Indoors
