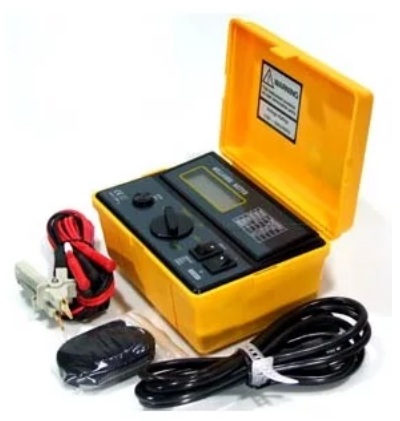

Milliohm Meter Lutron MO2001

Deskripsi Produk Milliohm Meter Lutron MO2001

Milliohm Meter Lutron MO2001

Spesifikasi :

Measuring :
Range 200 m ohm, 2,000 mohm,20 ohm,200 ohm, 2000 ohm.

Range : 200 m ohm Resolution 0.1 m ohm
Test Current 100 mA
Accuracy (0.75% + 4 d)
Open circuit voltage Approx. 3.8 V DC

Range : 2000 m ohm Resolution1 m ohm
Test Current 10 mA
Accuracy (0.75% + 2 d)
Open circuit voltage Approx. 3.4 V DC

Range : 20 ohm Resolution 10 m ohm
Test Current 10 mA
Accuracy (0.75% + 2 d)
Open circuit voltage Approx. 3.4 V DC

Range : 200 ohm Resolution 0.1 ohm
Test Current 1 mA
Accuracy (0.75% + 2 d)
Open circuit voltage Approx. 3.2 V DC

Range : 2000 ohm Resolution 1 ohm
Test Current 1 mA
Accuracy (0.75% + 2 d)
Open circuit voltage Approx. 3.2 V DC

Zero Adjustment External adjustment for zero value of the display.
Input Terminal 4 terminal input, accurate for low ohms measuring.
Over input Indication Indication of "1".
Sampling Time Approx. 0.4 sec.
Operating Temp. 0 to 50 ( 32 to 122 ).
Operating Humidity Less than 80 % R.H..
Power Supply AC 220V/240V 50/60 Hz.
Dimension 160 x 120 x 85 mm, with housing front cover.

Milliohm Meter Lutron MO2001
