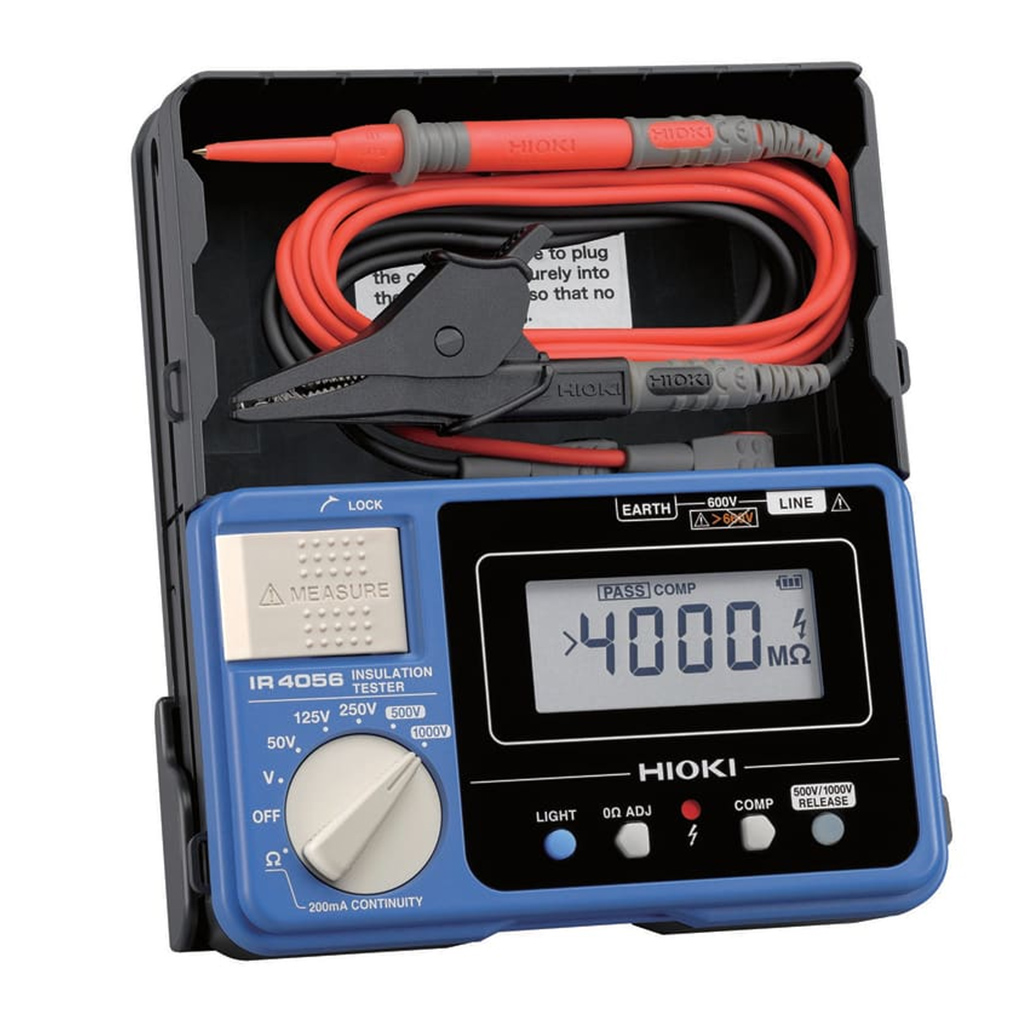

Insulation Tester Hioki IR4056-21

Ada Stock

Spesifikasi Produk Insulation Tester Hioki IR4056-21 :

SKU : IR4056-21

Size : 159 mm (6.26 in) W × 177 mm (6.97 in) H× 53 mm (2.09 in) D

Insulation Tester Hioki IR4056-21

Dapatkan produk Hioki dengan harga terbaik hanya di alatproyek.com / hubungi 021-29986622 s/d 24, 081808090252

Rp 3.407.000,00

Deskripsi Produk Insulation Tester Hioki IR4056-21 :

Insulation Tester Hioki IR4056-21

  • 5-range testing voltage of 50 V/100 MΩ to 1000 V/4000 MΩ
  • Stable & medium-speed digital readings, 0.8 second response time of PASS/ FAIL decisions
  • Drop proof onto concrete from 1m (3.28 feet)
  • Bright LED, luminous LCD, test lead with bright LED lamp to illuminate near hand (Also available in the IR4056-21)
  • Continuity check via 200 mA testing
  • Built in AC/DC voltage meter, useful for testing solar power generation systems and electric vehicles

Spesifikasi :

voltage 50 V DC 125 V DC 250 V DC 500 V DC 1000 V DC
Effective maximum indicated value 100 MΩ 250 MΩ 500 MΩ 2000 MΩ 4000 MΩ
Accuracy 1st effective measuring range MΩ ±2 % rdg. ±2 dgt.
0.200 - 10.00
±2 % rdg. ±2 dgt.
0.200 - 25.0
±2 % rdg. ±2 dgt.
0.200 - 50.0
±2 % rdg. ±2 dgt.
0.200 - 500
±2 % rdg. ±2 dgt.
0.200 - 1000
Lower limit resistance 0.05 MΩ 0.125 MΩ 0.25 MΩ 0.5 MΩ 1 MΩ
Overload protection 600 V AC (10s) 660 V AC (10s)
DC voltage measurement 4.2 V (0.001 V resolution) to 600 V (1 V resolution), 4 ranges,
Accuracy: ±1.3 % rdg. ±4 dgt., Input resistance: 100 kΩ or higher
AC voltage measurement 420 V (0.1 V resolution) / 600 V (1 V resolution), 2 ranges, 50/60 Hz,
Accuracy: ±2.3% rdg. ±8 dgt., Input resistance: 100 kΩ or higher, Average rectifier
Low resistance measurement For checking the continuity of ground wiring, 10 Ω (0.01 Ω resolution) to 1000 Ω (1 Ω resolution), 3 ranges, Basic accuracy: ±3 % rdg. ±2 dgt., testing current 200 mA or more (at 6 Ω or less)
Display Semi-transmissive FSTN LCD with back lighting, bar-graph indicator
Response time Approx. 0.8 second for PASS/FAIL decision (based on in-house testing)
Other functions Live circuit indicator, Automatic electric discharge, Automatic DC/AC detection, Comparator, Drop proof, Auto power save
Power supply LR6 (AA) alkaline batteries ×4, Continuous use: 20 hours (Comparator off, backlight off, 500 V range, no load)
Number of measurements: 1000 times (at 5 s ON, 25 s OFF cycle, insulation measurement of lower limit resistance value to maintain nominal output voltage)
Dimensions and mass 159 mm (6.26 in) W × 177 mm (6.97 in) H× 53 mm (2.09 in) D, 600 g (21.2 oz) (including batteries, excluding test leads)
Accessories [IR4056-20] Test lead L9787 ×1, Neck strap ×1, Instruction manual ×1, LR6 (AA) alkaline batteries ×4
[IR4056-21] Test lead set with remote switch L9788-11 ×1, Neck strap ×1, Instruction manual ×1, LR6 (AA) alkaline batteries ×4

Insulation Tester Hioki IR4056-21
