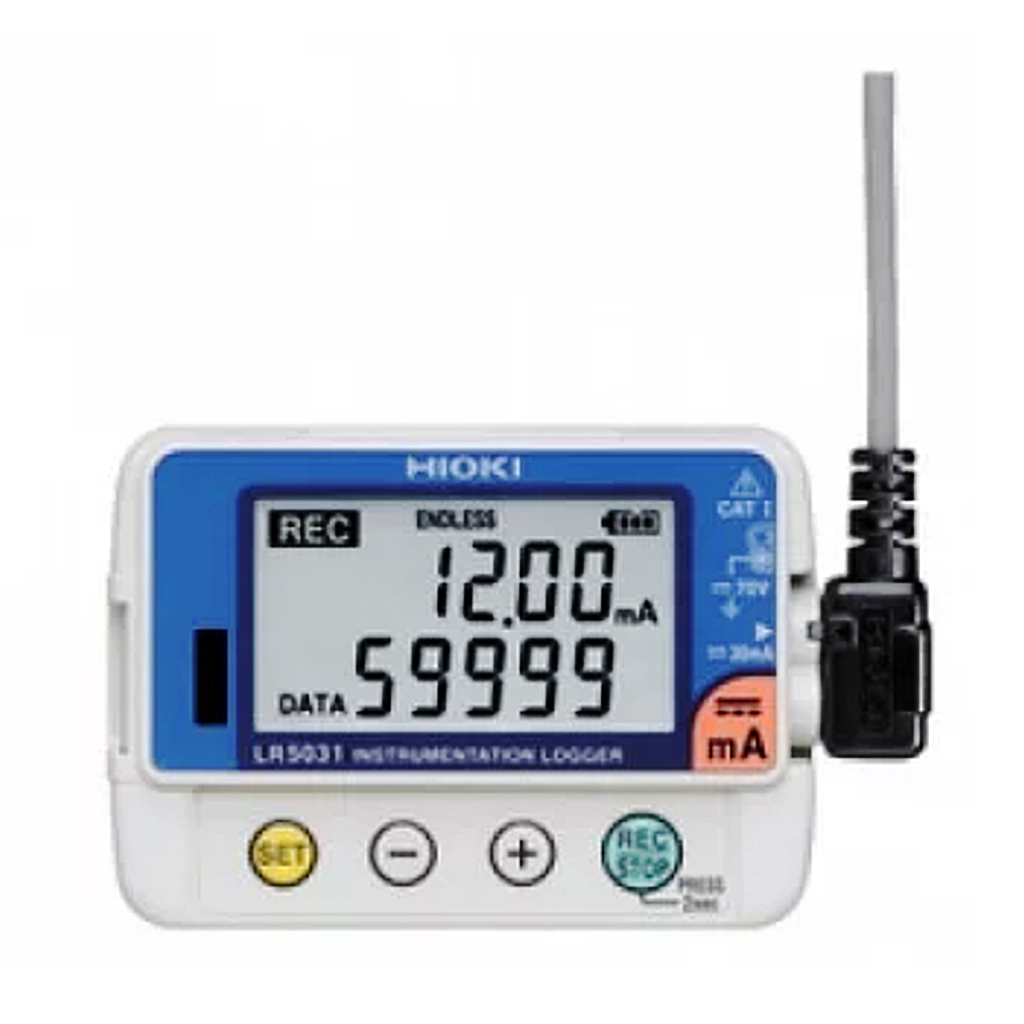

Instrumentation Data Logger Hioki LR5031

Deskripsi Produk : Instrumentation Data Logger Hioki LR5031

Instrumentation Data Logger Hioki LR5031

Spesifikasi :
Measurement items
For Instrumentation / 0 to 20mA DC, 1ch

Measurement range
-30.00 to 30.00 mA

Accuracy
0.5 %rdg. 5 dgt.

Storage capacity
Instantaneous value mode: 60,000 data, Statistical value mode: 15,000 data

Recording interval
1 to 30 sec., 1 to 60 min., 15 selections

Recording modes
Instantaneous recording: at every recording interval
Statistical value recording: Measure at one second intervals, and record the instantaneous, maximum, minimum, and average values within every recording interval

Recording methods
One-time recording: Stop recording when the memory capacity is full
Endless recording: Continue recording even when the memory capacity is full (old data is overwritten)
Start: Logger button operation or scheduled time
Stop: Logger button operation or scheduled time, or auto-stop when the memory capacity is full (at one-time recording)

Other functions
Always backs up last recorded data; backs up recorded data and setting conditions when battery power is low; guarantees approx. 30 sec. of recording operation and clock while battery is replaced

Waterproof and dust-proof
IP54 (EN60529) (with connection cable connected, but not including cable tip)

Interfaces
Infrared optical communications with LR5091, LR5092-20

Power supply
LR6 (AA) Alkaline battery 1, Battery life: Approx. 2 years (Instantaneous recording, with 1-minute interval and auto power saving, at 20 C), Approx. 2 months (Instantaneous recording, with 1-second interval at 20 C)

Accessories
LR6 (AA) Alkaline battery (built-in internal) 1, Connection Cable LR9801 1, Instruction manual 1, Operation guide 1, Kickstand 1

Instrumentation Data Logger Hioki LR5031
