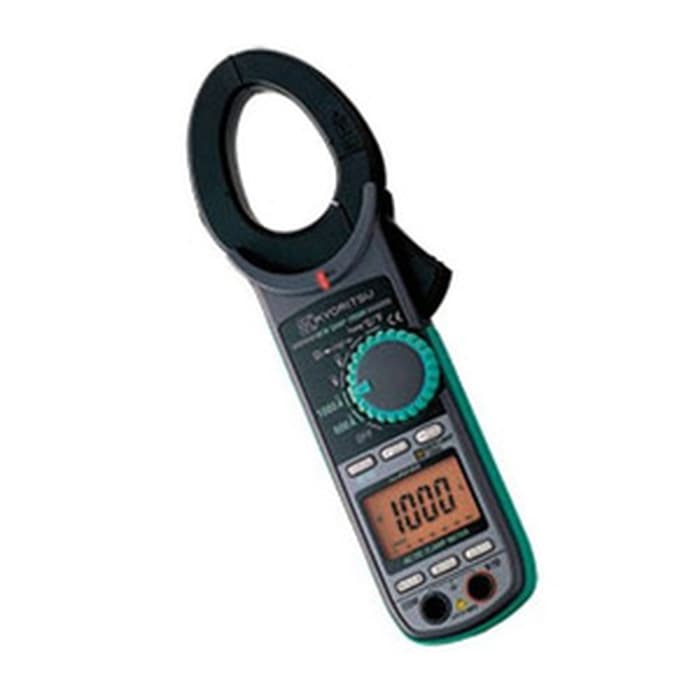

Digital Tang Ampere Clamp Meter AC/ DC 1000 A Kyoritsu 2056R

Deskripsi Produk Digital Tang Ampere Clamp Meter AC/ DC 1000 A Kyoritsu 2056R

Digital Tang Ampere Clamp Meter AC/ DC 1000 A Kyoritsu 2056R

Fitur :

• Designed to meet international safety standard IEC 61010-1 CAT.IV 600V.
• CAT.IV Clamp Meters can measure the Voltage and Current in both very low and high power circuits.
• Thus, very useful for power distribution companies, power utilities and maintenance fields.
• True RMS enables an accurate measurement.

Spesifikasi :

• AC A 0~ 600.0/ 1000A
• | 2.0% rdg 5dgt ( 50/ 60Hz)
• | 3.5% rdg 5dgt ( 40~ 500Hz)
• DC A 0~ 600.0/ 1000A
• | 1.5% rdg 5dgt
• AC V 6/ 60/ 600V
• Auto Ranging
• | 1.5% rdg 4dgt ( 50/ 60Hz)
• | 3.5% rdg 5dgt ( 40~ 400Hz)
• DC V 600m/ 6/ 60/ 600V
• Auto Ranging
• | 1.0% rdg 3dgt
• 600/ 6k/ 60k/ 600k/ 6M/ 60M ( Auto Ranging)
• | 1% rdg 5dgt ( 600~ 6M) / 5% rdg 8dgt ( 60M)
• Continuity buzzer Buzzer Sounds at 100
• Frequency/ DUTY 10/ 100/ 1k/ 10kHz ( Auto Ranging) / 0.1~ 99.9%
• Temperature -50 C ~ + 300 C ( With the use of Temperature probe 8216)
• Conductor Size 40mm
• Withstand Voltage 6880V AC for 5 seconds
• Safety Standard IEC 61010-1 CAT.IV 600V,
• IEC 61010-031,
• IEC 61010-2-032,
• IEC 61326
• Power Source R03 ( 1.5V) ( AAA) 2
• Dimensions 254( L) 82( W) 36( D) mm
• Accessories 7066A ( Test leads)
• 9094 ( Carrying case)
• Instruction Manual
• Optional 8008 ( Multi-Tran)
• 8216 ( Temperature probe)

Digital Tang Ampere Clamp Meter AC/ DC 1000 A Kyoritsu 2056R
