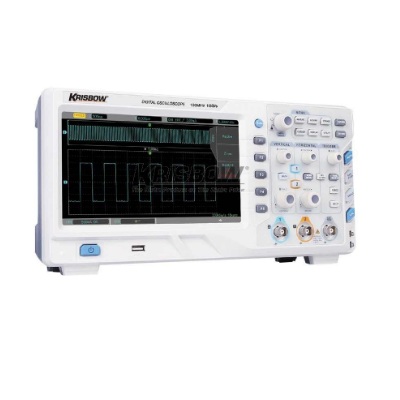

Digital Storage Oscilloscope Krisbow 10162915

Ada Stock

Spesifikasi Produk Digital Storage Oscilloscope Krisbow 10162915

SKU : 10162915

Digital Storage Oscilloscope Krisbow 10162915

Dapatkan Produk Krisbow dengan harga terbaik hanya di alatproyek.com / hubungi 021-29986622 s/d 24, 081808090252

Rp 12.900.000,00

Deskripsi Produk Digital Storage Oscilloscope Krisbow 10162915

Digital Storage Oscilloscope Krisbow 10162915

Fitur :

  • Sampling rate : 1G/s (500MS/s for dual channel)
  • Bandwidth: 100MHz
  • Memory depth : 25kpts
  • Waveform capture rate : 20000/s
  • 6 types of triggering mode
  • 8 inch TFT color LCD (800 x 480)
  • Independent and adjustable channel time base

Spesifikasi :

  • Channels: 2
  • Bandwidth: 100MHz
  • Sample rate: 1GS/s (single channel), 500MS/s (dual channel)
  • Rise time: <=3.5ns
  • Memory depth: 25kpts
  • Waveform acquisition rate: 7000 to 8999 Hz, adjustable
  • Vertical sensitivity: 1mV/div to 20V/div (1MOhm)
  • Time base range: 2ns/div to 50s/div
  • Storage: Setup, Waveform, Bitmap
  • Trigger mode: Edge, Pulse Width, Runt, Over amplitude, Video, Slope
  • Trigger frequency: 6 bits
  • Trigger type: Auto, normal, single
  • Pulse Width range: 100ns to 10s
  • Signal mode and Line/Field: Supports standard NTSC and PAL signal mode, line range is 1 to 525 (NTSC) and 1 to 625 (PAL)
  • Auto measurement: Max, Min, Peak Peak, Amplitude, Top, Bottom, Cycle Average, Average, Crms, RMS, Area, Cycle area, Overshoot, Preshoot, RPRE, FPRE, Rise Time, Fall Time, Frequency, Period, Pulse Width, +Width, -Width, Burst Width, +Duty, -Duty, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, 34 measuring parameters in total
  • Storage waveform: 20 internal settings/waveform, 200 settings/ waveform in U disc, deep storage CSV in U disc
  • Interface: USB OTG, Pass/Fail
  • Product color: White and gray
  • Display: 8 inch TFT LCD, 800×RGB×480
  • Power Supply: 100 to 240 VAC, 50/60Hz
  • Standard accessory: Power cord, USB cable, 2 sets of passive probes (100MHz), PC software CD (with manual and application software inside)

Digital Storage Oscilloscope Krisbow 10162915
