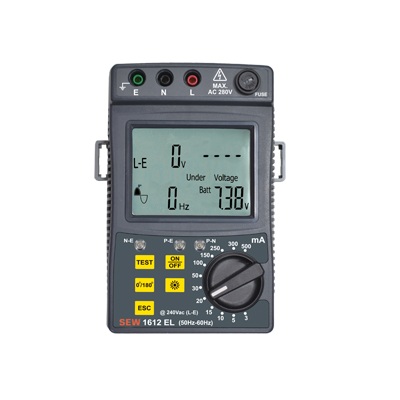

Digital RCD Tester SEW 1612EL

Ada Stock

Spesifikasi Produk Digital RCD Tester SEW 1612EL

SKU : 1612EL

Size : 163 × 122 × 67 mm

Digital RCD Tester SEW 1612EL

Dapatkan Produk SEW dengan harga terbaik hanya di alatproyek.com / hubungi 021-29986622 s/d 24, 081808090252

Rp 3.028.000,00

Deskripsi Produk Digital RCD Tester SEW 1612EL

Digital RCD Tester SEW 1612EL

Fitur :

  • Microprocessor-controlled
  • Extra large LCD (78 × 67mm)
  • Very low power consumption
  • 50Hz and 60Hz operation
  • Accurate digital readout of disconnection time
  • Over temperature protection
  • Over voltage protection
  • Fuse protection
  • Zero crossing circuitry permits testing at 0° or 180°
  • Auto power off
  • Backlight function
  • Wiring polarity indicator
  • Measures voltage between Line and Earth before testing
  • Frequency measurement indication
Spesifikasi :
Operating voltage (L-E)
 (50Hz or 60 Hz)
 Version A : 240 Vac
 Version B : 230 Vac
 Version C : 220 Vac
 Version D : 110 Vac
 Current settings  3mA, 5mA, 10mA, 15mA, 20mA, 30mA, 50mA,  100mA,  150mA, 250mA, 300mA,  500mA.
 Current selection  Rotary switch selector
 Phase angle setting  0° and 180° selectable
Wiring correctness indication  Yes (LEDs)
 Trip indicator  Yes (LCD)
 Over-temperature protection  Yes
 Voltmeter (L-E)  10Vac ~ 280Vac
 (50Hz or 60Hz)
 Timer resolution  1ms (Max. Time=2.999s)
 Timer accuracy  ±2ms
 Current accuracy  ±5% ±1mA
 Voltmeter resolution  1Vac
 Voltmeter accuracy   ±2%±1Vac
 Operating temperature  -0°C ~ 40°C
 Storage temperature  -10°C ~ 50°C
 Dimensions  163(L) × 122(W) × 67(D)mm
 Weight
 (battery included)
 Approx. 612g
 Power source  1.5V (AA) × 6
 (Alkaline battery)
 Safety standard  EN 61010-1 CAT III 300V
 EN 61326-1
