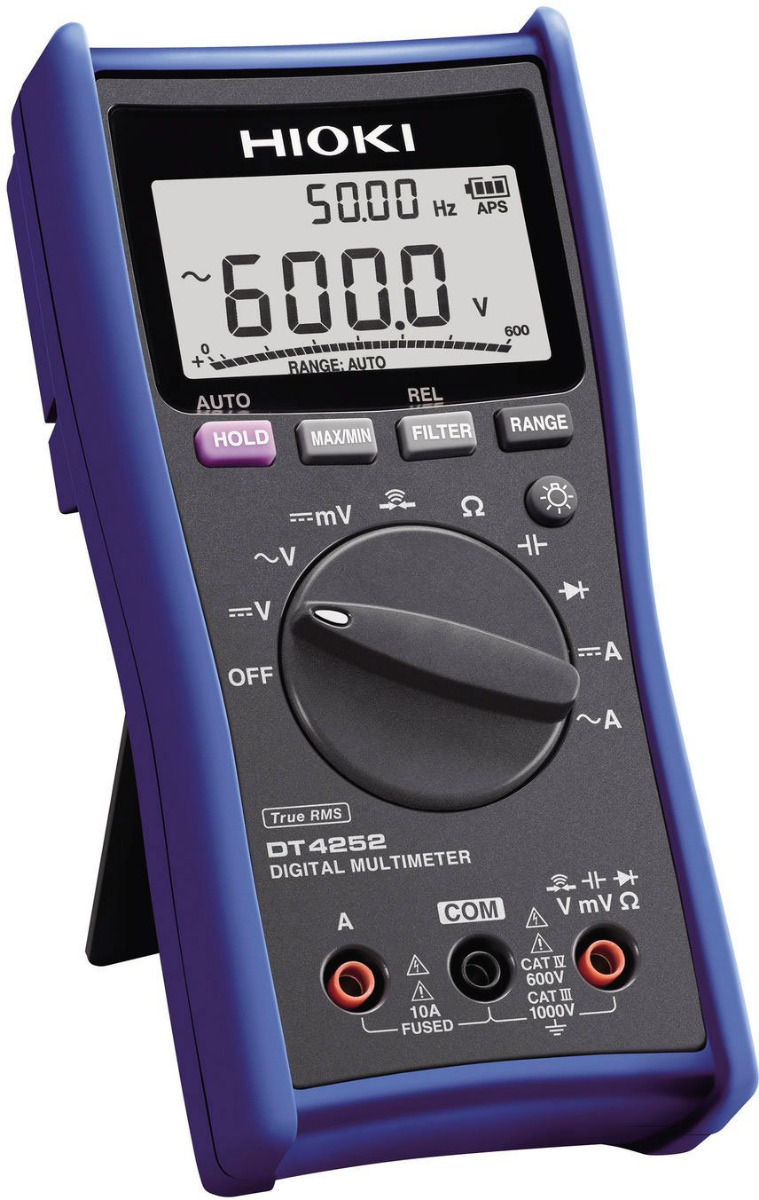

Digital Multimeter Hioki DT4252

Rp 2.590.000,00
In stock
SKU
DT4252

Spesifikasi Produk Digital Multimeter Hioki DT4252

SKU : DT4252

Digital Multimeter Hioki DT4252

Dapatkan Produk Hioki dengan harga terbaik hanya di alatproyek.com / hubungi 021-29986622 s/d 24, 081808090252

Deskripsi Produk Digital Multimeter Hioki DT4252

Digital Multimeter Hioki DT4252

Fitur :

  • Mencapai tingkat keselamatan yang tinggi dalam compact body dan desain yang ringan
  • Akurasi dasar ± 0,5% DC V , lebar 40 Hz sampai 1 kHz karakteristik frekuensi AC V
  • Low-pass filter (100 Hz / 500 Hz) memotong ketinggian harmonik
  • Fungsi komunikasi USB mendukung pengukuran PC (opsional)
  • Luas -10 (14 ° F) hingga 50 ° C (122 ° F) rentang suhu operasi

Spesifikasi :

  • DC voltage 600.0 mV to 1000 V, 5 ranges
  • Basic accuracy: ±0.3 % rdg. ±5 dgt.
  • AC voltage 6.000 V to 1000 V, 4 ranges, Frequency characteristics: 40 Hz - 1 kHz
  • Basic accuracy 40 - 500 Hz : ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3)
  • C (capacitance) 1.000 μF to 10.00 mF, 5 ranges, Basic accuracy: ±1.9 % rdg. ±5 dgt.
  • Continuity check Continuity threshold [ON]: 25 Ω or less (Indicate buzzer sound, red LED), [OFF]: 245 Ω or more
  • Response time: 0.5 ms or more
  • Diode test Open terminal voltage: 5.0 V or less, Testing current 0.5 mA or less,
  • Threshold of forward voltage: 0.15 V to 1.5 V
  • Display refresh rates 5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 time/s, Temperature: 1 time/s )
  • Power supply LR03 alkaline batteries ×4, Continuous use: 130 hours (back light OFF)
  • Dimensions and mass 84 mm (3.31 in)W × 174 mm (6.85 in)H× 52 mm (2.05 in)D,
  • Accessories Test lead L9207-10 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×4
