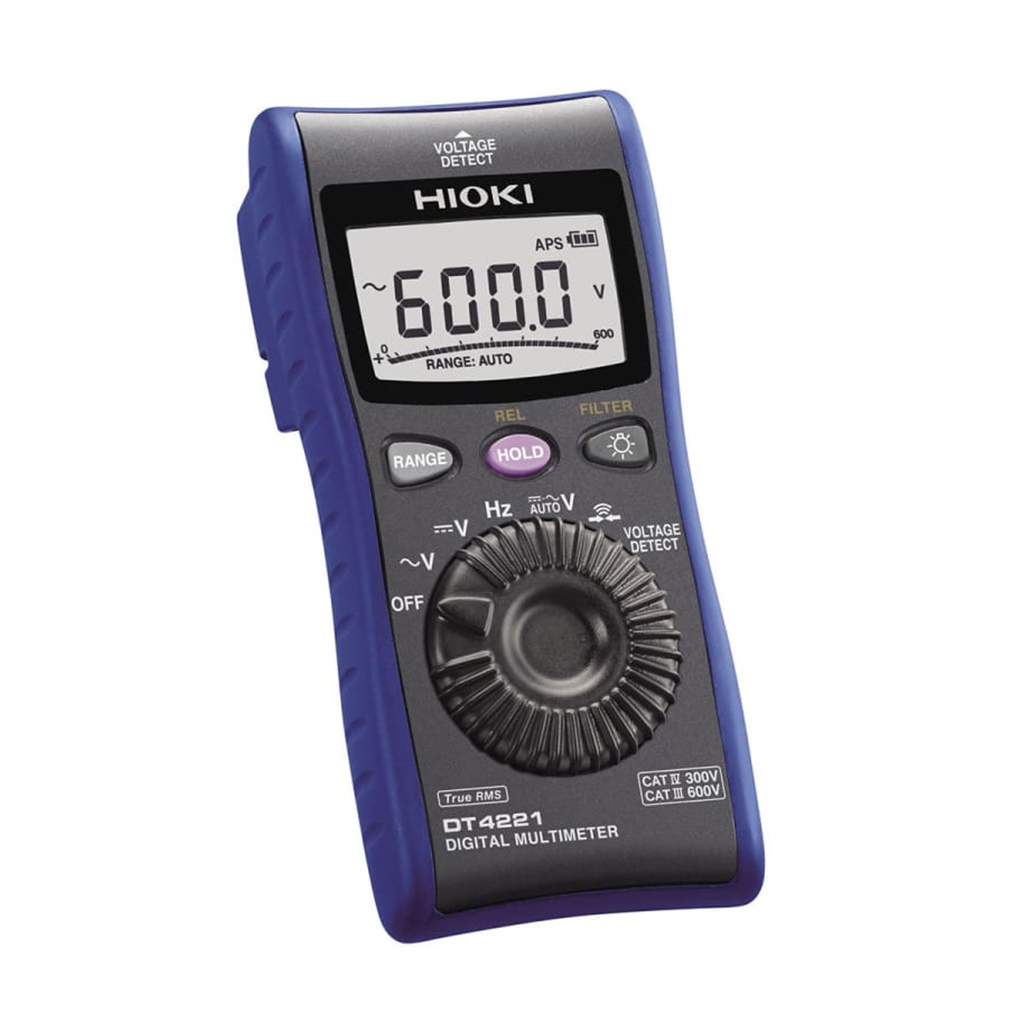

Digital Multimeter Hioki DT4221

Rp 1.760.000,00
In stock
SKU
DT4221

Spesifikasi Produk : Digital Multimeter Hioki DT4221

SKU : DT4221

Size : 5.87H x 2.83L x 1.5W IN

Digital Multimeter Hioki DT4221

Dapatkan Produk Hioki dengan harga terbaik hanya di Alatproyek.com / hubungi 021-29986622 s/d 24, 081808090252

Deskripsi Produk : Digital Multimeter Hioki DT4221

Digital Multimeter Hioki DT4221

Spesifikasi :
Digital Multimeter DT4200 Series terdiri dari barisan lengkap 9 model mulai dari profesional untuk industri untuk meter saku, memberikan tingkat respon super cepat dan keselamatan fitur yang mengambil tes listrik ke tingkat yang lebih tinggi. DT4221 adalah multimeter digital berukuran saku dirancang khusus untuk pekerjaan listrik yang membutuhkan keamanan yang optimal, dengan 0,5% DC V akurasi dan lebar 40Hz untuk bandwidth 1kHz AC V.

Spesifikasi :

Mencapai tingkat keselamatan yang tinggi dalam compact body dan desain yang ringan
Akurasi dasar 0,5% DC V , lebar 40 Hz sampai 1 kHz karakteristik frekuensi AC V
Low-pass filter (100 Hz / 500 Hz) memotong ketinggian harmonik
Fungsi pengukuran saat ini dihilangkan untuk meningkatkan keselamatan
Luas -10 (14 F) hingga 50 C (122 F) rentang suhu operasi

DC voltage 600.0 mV to 600.0 V, 4 ranges, Basic accuracy: 0.5 % rdg. 5 dgt.
AC voltage 6.000 V to 600.0 V, 3 ranges, Frequency characteristics: 40 Hz - 1 kHz
Basic accuracy 40 - 500 Hz : 1.0 % rdg. 3 dgt. (True RMS, crest factor 3)
Resistance N/A
C (capacitance) 1.000 nF to 100.0 mF, 9 ranges, Basic accuracy: 1.0 % rdg. 5 dgt.
Frequency AC V measurement: 99.99 Hz (5 Hz or more) to 9.999 kHz, 3 ranges
Basic accuracy: 0.1 % rdg. 2 dgt.
Continuity check Continuity threshold [ON]: 25 or less (buzzer sound), [OFF]: 245 or more
Response time: 0.5 ms or more
Diode test Open terminal voltage: 2.5 V or less, Testing current 0.5 mA or less,
Threshold of forward voltage: 0.15 V to 1.5 V
Voltage detection 80 V to 600 V AC
Other functions Filter function, Display value hold, Relative display, Auto-power save
Display Main and sub displays: 4-digits LCD, max. 6000 digits, bar graph
Display refresh rates 5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 time/s )
Power supply LR03 alkaline batteries 1, Continuous use: 40 hours (back light OFF)
Dimensions and mass 72 mm (2.83 in) W 149 mm (5.87 in) H 38 mm (1.50 in) D,190 g (6.7 oz) (with batteries and holster)
Accessories Test Lead DT4911 1, Holster 1, Instruction manual 1, LR03 alkaline battery 1

Digital Multimeter Hioki DT4221
