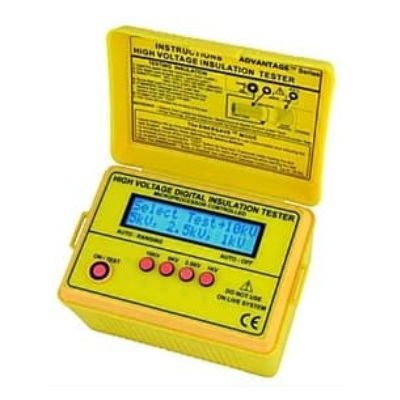

Digital Insulation Tester SEW 2804IN

Deskripsi Produk Digital Insulation Tester SEW 2804IN

Digital Insulation Tester SEW 2804IN

Fitur :

• Microprocessor-controlled.
• Four insulation test voltages.
• Insulation resistance; auto ranging on all ranges.
• Bargraph indicates test voltage; rise and decay can be observed
• during tests.
• Visual and audible warning if external voltage is present.
• EnerSave feature to extend battery life.
• 2 Lines 16 characters large LCD.
• Low battery consumption.
• Low battery indicator.
• Overload protection.
• Auto-off.
• Show test time duration (up to 99.9s) for easy comparison.
• EEPROM calibration.
• Built-in carry case and test leads in separate pouch.

Spesifikasi :

• Test voltage (DC V) 1kV / 2.5kV / 5kV / 10kV
• Measuring ranges
• (Auto-Ranges) 0-50G / 0-125G / 0-250G / 0-500G
• Accuracy 0-50G : 3% rdg
• 50-500G : 5% rdg
• Dimensions 170(L) 120(W) 95(D)mm
• Power source 1.5V(AA) 8 Alkaline batteries
• Safety standard EN 61010-1
• EN 61326-1

Digital Insulation Tester SEW 2804IN
