DIG INDICATORBACKLIGHT1IN/.01MM 543-552E MITUTOYO MT0000465

Rp 8.093.000,00
In stock
SKU
MT0000465

Spesifikasi Produk DIG INDICATORBACKLIGHT1IN/.01MM 543-552E MITUTOYO MT0000465 -Include PPN- :

SKU : MT0000465

Size : 350 x 155 x 75 mm

DIG INDICATORBACKLIGHT1IN/.01MM 543-552E MITUTOYO MT0000465 -Include PPN-

Dapatkan Produk Mitutoyo dengan harga terbaik hanya di alatproyek.com / hubungi 021-29986622 s/d 24, 081808090252

Deskripsi Produk DIG INDICATORBACKLIGHT1IN/.01MM 543-552E MITUTOYO MT0000465 -Include PPN- :

DIG INDICATORBACKLIGHT1IN/.01MM 543-552E MITUTOYO MT0000465 -Include PPN-

Spesifikasi :

description

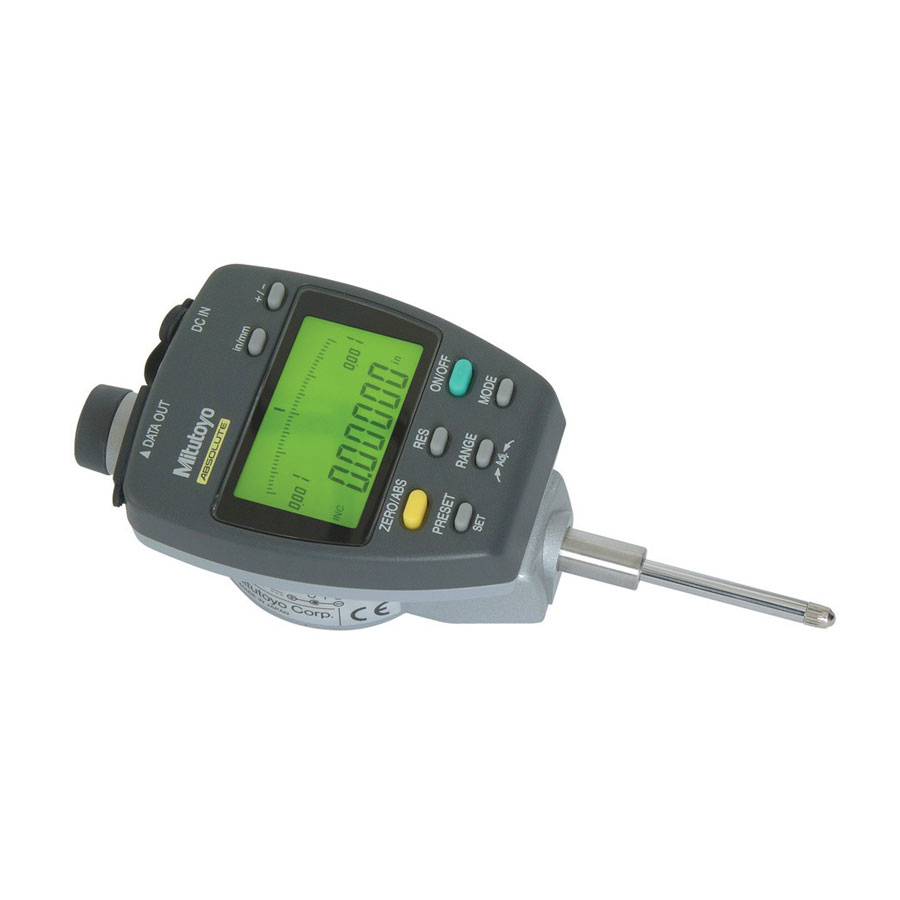

DIGIMATIC INDICATOR 25.4/0.01MM 543-552E adalah alat ukur dengan pengukuran yang sangat kecil seperti pengukuran kerata an bidang datar, kertaan permukaan dan kebulatan poros, atau kerataan pe rmukaan dinding cylinder. Alat ini menggunakan alat bantu magnetic bas e untuk memegang digital indicator. Kelebihan lain alat ini adalah mengg unakan layar lcd sehingga kesalahan pembacaan dapat diminimalisir. D igimatic indicator ini mempunyai besar pengukuran 0-1 INC. Digima tic indicator sering digunakan di industri, pabrik, atau bengkel.< /p>

features
  • With the ABSOLUTE linear encoder technology, once the measurement reference point has been set it will not be lost when the power is turned off.
  • GO/+/-NG judgement is performed by setting upper and lower limits. if a judgemen t result shows an out of tolerance condition, the display backlighting changes from green to red, so tolerance judgement can be made at a glance.
  • The maximum, minimum,or runout valu e can be displayed during measurement.
  • An an alog bar indicator is integrated so that visualizing the fall of measure ments within limits is as easy as with a dial indicator.
  • The display range ofthe analogbar can be set to suit the application.
spesification
  • Type: Multi Function
  • Back Type: Flat Back
  • Type: Plunger
  • Range: 25 MM / 1 INC
  • Resolution: 0.001 MM / 0.0002 INC
  • Accurac y: +/-0.003 MM / 0.00012 INC
  • Data Output: Y es
  • Display: LCD character height 8.5 MM
  • Contact Point: Carbide point No 4-48 UNF
  • Stem diameter: 9.52 MM (3/8 INC)
  • Max. response speed: Unlimited
  • MeasuringForce: 1.8 N or less
  • Scale type: Absolute electrostatic linear encoder
  • Power Supply: 9V DC
  • Functions Preset,Zeroset,GO/+/-NG judgeme nt, Max/Min value hold, Runout, Resolution switching,Counting direction switching, Power ON/OFF, Data output,INC/MM readout. Alarm: Counting v alue composition error, Overflow error, Tolerance limit setting error.

DIG INDICATORBACKLIGHT1IN/.01MM 543-552E MITUTOYO MT0000465 -Include PPN-
