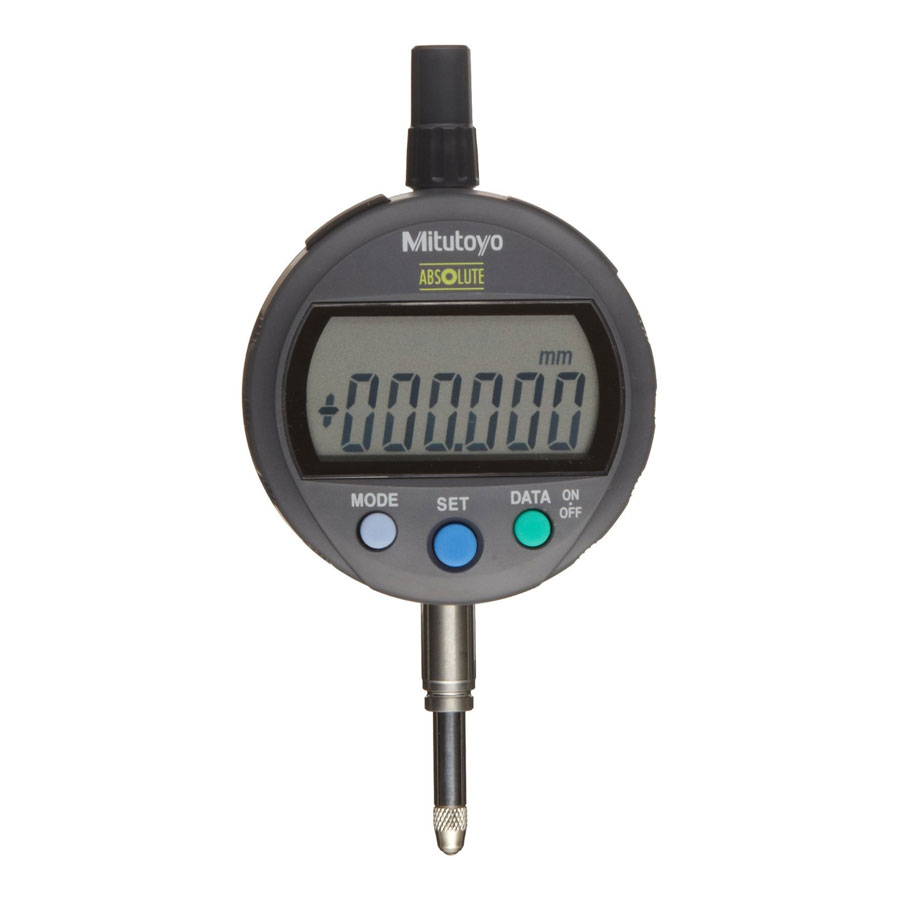

DIG INDICATOR 12.7/0.001MM 543-390 Mitutoyo MT0000463

Be the first to review this product

Rp 4.800.000,00

In stock

SKU

MT0000463

Spesifikasi Produk DIG INDICATOR 12.7/0.001MM 543-390 Mitutoyo MT0000463 -Include PPn-

SKU : MT0000463

Size : 189 x 72 x 106 mm

DIG INDICATOR 12.7/0.001MM 543-390 Mitutoyo MT0000463 -Include PPn-

Dapatkan Produk Mitutoyo dengan harga terbaik hanya di alatproyek.com / hubungi 021-29986622 s/d 24, 081808090252

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Deskripsi Produk DIG INDICATOR 12.7/0.001MM 543-390 Mitutoyo MT0000463 -Include PPn-

DIG INDICATOR 12.7/0.001MM 543-390 Mitutoyo MT0000463 -Include PPn-

DIG INDICATOR 12.7/0.001MM 543-390 adalah alat ukur dengan pengukuran yang sangat kecil seperti pengukuran kerataan bidang datar, kerataan permukaan dan kebulatan poros, atau kerataan permukaan dinding cylinder. Alat ini menggunakan alat bantu magnetic base untuk memegang digital indicator. Kelebihan lain alat ini adalah menggunakan layar lcd sehingga kesalahan pembacaan dapat diminimalisir. Digital indicator ini mempunyai besar pengukuran 0-12.7 MM. Digital indicator sering digunakan di industri, pabrik, atau bengkel.

Benefit :

Cost-effective oriented design
ID-SX indicators use abutton-typebattery (SR44) and come with the minimum of functionality for ease ofuse.
There is a choice of models in the lineup allowing selection of 0.01 MM, 0.001 MM or INC-based measurement resolutions.
IP53dust/water protection leve l The models listed below also provideIP53dust/water protectionlevelspecifications: 543-794/94B/95/95B/96/96B
ABS (absolute)sensorThese Digimatic indicators em ploy Mitutoyo proprietary ABS(absolute)sensor, which makes it possible to restore the origin pointeven if thepower is turned off.
This eliminates the need to performoriginrestorat ion each time the power is turned on.
Furthe rmore, thissensorensures that overspeed errors do not occur, whichimprovesreliability.
Long battery life One button battery(SR44)provides approximately 20,000 hours of continuous use for.0005 in/0.01MMresolution models.

Fitur :

As compact as standard series 2 dial indicators; Large, easy-to-read led, stem diameter 8MM, M2.5 x 0.45 Thread
Go/+/-NG Judgment can be performed by setting upper and lower tolerance limits;the judgment result (go/+/-ng) can be displayed in full-size characters
The positive/negative count resulting from the spindle's up/down movement can be toggled. alarm for low voltage, counting value composition erro r, over-flow error, tolerance limit setting error,internal calculations using the simple formula of [F(x) = Ax)] are available
Internal calculations using the simple formula o f [f(x) = ax)] are available. employing the absolute linear encoder, the id-calways displays the spindle INC absolute position INC from the origin at power-on. also unlimited response speed eliminates over -speed errors
The ID-C Indicator face can be rotated 330 degree to an appropriate angle for easy reading. with spc da ta output

Spesifikasi :

Type: Standard
Back Type: Lug back
Brand Name: Mitutoyo
Part Number: 543-390
Style Name: Lug Back
Maximum Measurement: 0-12.7 MM
System of Measurement: Metric
Material Type: Stainless Steel
Additional Features: -
EAN: 4946368586465
Manufacturer Seri es Number: Absolute Digimatic Indicator ID-C
Measurement Accuracy: +/-0.003 MM
Number of Items: 1
Output Type: SPC
Power Source Type: SR 44 (1pc)
Range: 0-12.7 MM
Resolution: 0.001 MM
Shape: Lug Back
Size: 0-12.7 MM Range, 0.001 MM Graduation, +/-0.003 MM Accuracy
Stem Ou tside Diameter: 8 MM
Thread Style: M 2.5 X 0.45
UNSPSC Code: 39121534

DIG INDICATOR 12.7/0.001MM 543-390 Mitutoyo MT0000463 -Include PPn-
