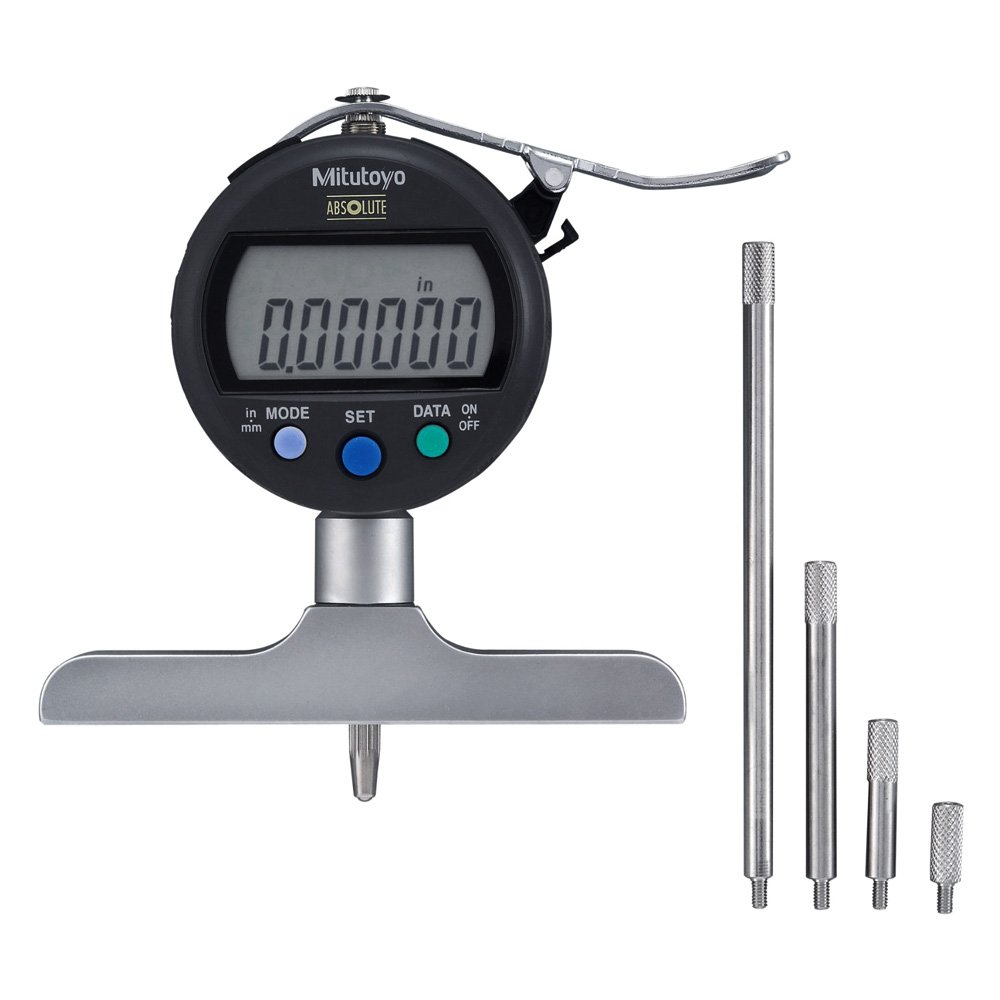

DIG DEPTH GAGE 0-8 INC/0.01MM 547-218S MITUTOYO 10055759

DIG DEPTH GAGE 0-8 INC/0.01MM 547-218S adalah sa tu alat ukur yang dapat mengukur kedalaman lubang dengan presisi. Mik rometer kedalaman Mitutoyo memungkinkan kita untuk memeriksa kedalam an dari lubang benda kerja yang telah dibor atau proses permesinan lai n. Mikrometer kedalaman Mitutoyo tipe Digimatic Depth Gauge mempu nyai range pengukuran 0-8 INC dan akurasi +/- 0.0003 INC. Pembacaan skal a Mikrometer kedalaman Mitutoyo sama dengan pembacaan pada skala ukur mikrometer luar, hanya arah pemutaran bidalnya berlawanan. Mic rometer kedalaman sering digunakan di industri, bengkel, laboratoriu m, atau konstruksi

• Calibrated depth gauge measures 0 to 8.0 INC (0 to 200mm) with 0.00005 INC (0.001mm) resolution and + or - 0.0003 INC accuracy, for measuring the depth of holes and other depressions
• LCD screen of the indicator (Mitutoyo 543-392B) displays measurements in inches and metric units and unit has a flat back for stem/plate mounting
• Comes with a carbide-tipped contact point and four extension rods (0.5 INC, 1 INC, 2 INC, and 4 INC) for flexibility in measuring range
• Base is 4 x 0.63 inches (W x D) for stability, and is hardened, groun d, and lapped for accuracy
• Includes a Mitutoyo Certificate of Calibration that the tool has been calibrated, and meets the International Organization for Standardization/International Electrotechnical Commission (ISO/IEC) 17025 International Standard for testing and calibration laboratories

• Range 0 to 8.0 INC (0 to 200mm)
• Resolution 0.00005 INC (0.001mm)
• Accuracy + or - 0.0003 INC
• Base flatness 0.00008 INC
• Stroke 0.5 INC
• Measuring force 1.5N or less
• Stem 4 -48 UNF contact point thread mount with 3/8 INC diameter stem
• Fac e LCD displays in both inches and metric units
• Extension rods Four (0.5 INC, 1 INC, 2 INC, and 4 INC)
• Data output Yes
• Dimensio ns 105 x 59mm (H x W)
• Weight 340g
• Power source SR-44 battery (included)
