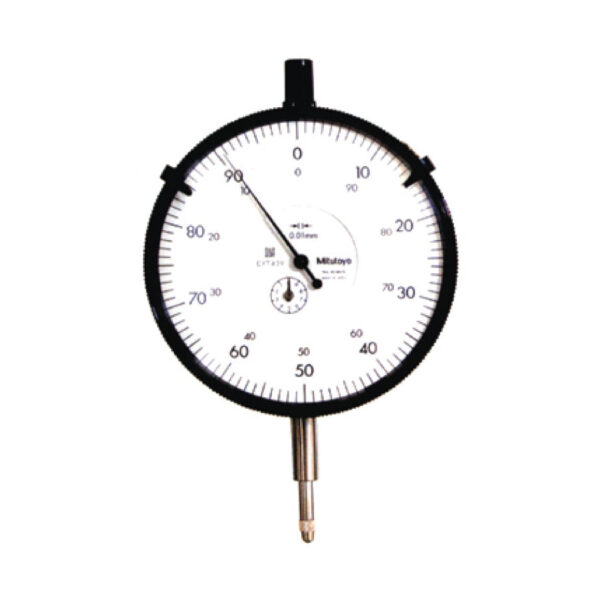

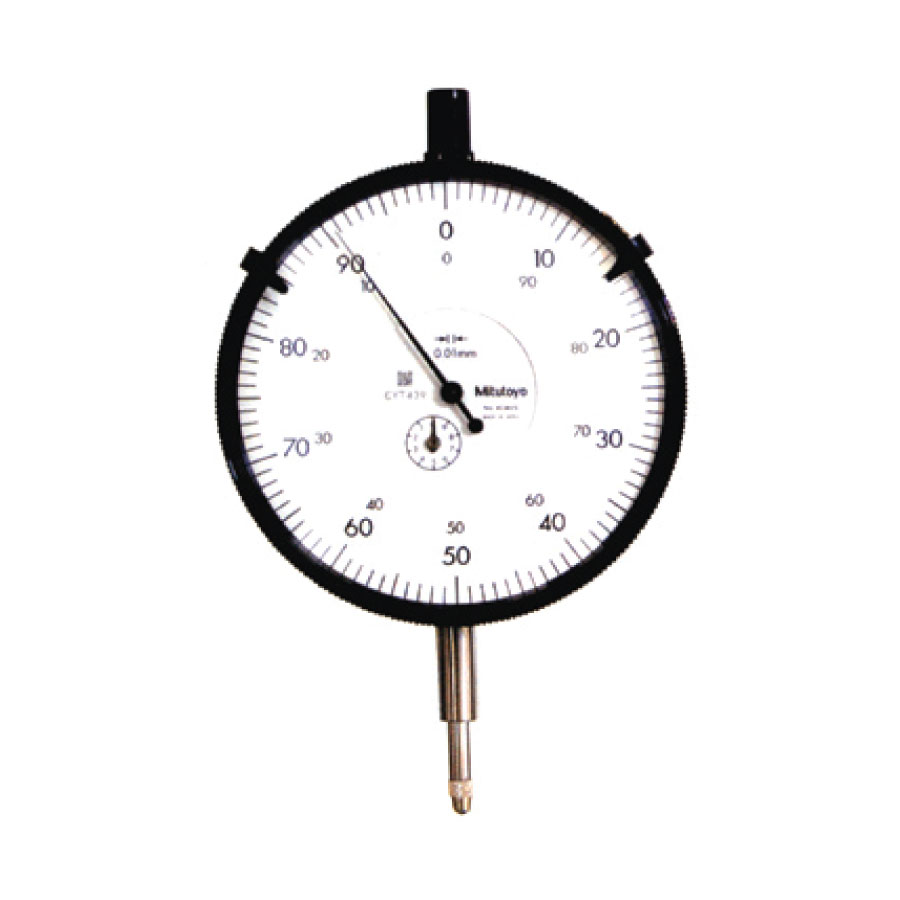

DIAL INDICATOR 50/0.01MM 3058S-19 MITUTOYO MT0000412

Deskripsi Produk DIAL INDICATOR 50/0.01MM 3058S-19 MITUTOYO MT0000412 -- :

DIAL INDICATOR 50/0.01MM 3058S-19 MITUTOYO MT0000412 --

DIAL INDICATOR 50/0.01MM 3058S-19 adalah satu al at ukur yang dapat mengukur kerataan benda kerja. Dial indicator Mitu toyomemungkinkan kita untuk memeriksa kerataan dari permukaan benda, memeriksa penyimpangan yang kecil pada bidang , memeriksa penyimpanga n eksentris, memeriksa kesejajaran permukaan benda, menyetel kesentrisan benda pada pencekam mesin bubut, dan memeriksa penyimpangan bantalan pa da poros engkol . Dial indicator Mitutoyo tipe Long Stroke dengan pembacaan 0-100 dan range pengukuran 0-50 MM sering digunakan di indu stri, bengkel, laboratorium, atau konstruksi.

Benefit :
* Long stroke dial indicators with a Dia.57MM outer frame. All the models are equipped with limit markers and a bezel clamp as standard.
* An O-ring is employed to ensure air-tightness bet ween the outer frame and the crystal case to prevent water or oil penetration.
* Both the stem and the spindle are made of high-strength quench-hardened stainless steel suitable for h eavy-duty use.
* A carbide contact point is employed.
* The grand gear is made of stainless steel with high resistance to wear and deformation.
* Application of a hard coating on the surf ace of the crystal makes the gauge highly scratch- and chemical-resi stant.
* The bezel clamp and lifting lever* (optional) can be attac hed to either the right or left side. These parts can be easily install ed and removed without any tools.

Features :
* Stem diameter 8MM, M2.5-0.45 thread size
* Measuring force: 3.0 N or less
* Shockproof, jeweled bearing, with coaxial revolution counter
* Provided with inspection certificate
* All types com e with limit pins and an outer frame clamp as standard

Spesifikasi :

* Material : Stainless Steel
* Measuring_force : 3.0 N Or Less
* Overall_accuracy : +/- 0.035 MM
* Range : 0-50 MM
* Additional Features : Shockproof, Jeweled Bearing, Revolution Counter
* Color : White
* Display : 0-100
* EAN : 4946368524719
* Maximum Measurement : 0-50MM
* Measurement Accuracy : +/-0.035MM
* Number of Items : 1
* Outside Diameter : 78 MM
* Part Number : 3058S-19
* Range : 0-50MM
* Resolution : 0.01MM
* Shape : Lug Back
* Size : 0-50 MM Range
* Style Name : 0-100
* Type : Long Stroke
* Dimension_unit : 255 X 64 X 104 MM
