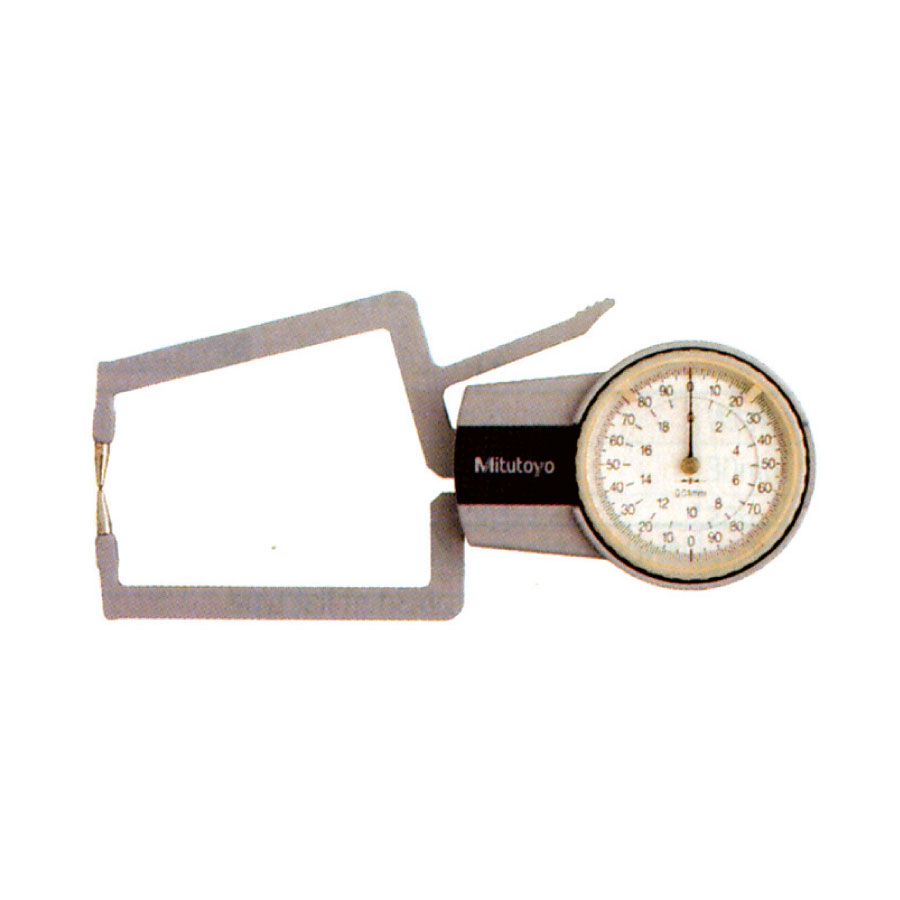

DIAL CALIPER GAGE 20/.01MM 209-404 MITUTOYO MT0002374
Spesifikasi Produk DIAL CALIPER GAGE 20/.01MM 209-404 MITUTOYO MT0002374 Include PPN
SKU : MT0002374
Dimensi : 310 X 171 X 51 MM
DIAL CALIPER GAGE 20/.01MM 209-404 MITUTOYO MT0002374 Include PPN
Dapatkan produk Mitutoyo dengan harga terbaik hanya di alatproyek.com / hubungi 021-29986622 s/d 24, 081808090252
Deskripsi Produk DIAL CALIPER GAGE 20/.01MM 209-404 MITUTOYO MT0002374 Include PPN
DIAL CALIPER GAGE 20/.01MM 209-404 MITUTOYO MT0002374 Include PPN
DIAL CALIPER EXTERNAL 20/0.01MM 209-404 adalah jangka sorong merk MITUTOYO yang terbuat dari bahan stainless steel terbaik sehingga awet. Jangka sorong ini dapat digunakan untuk melakukan pengukuran dengan range 0-20 MM dan memiliki tingkat akurasi yang sangat baik. Sangat mudah digunakan. Jangka sorong MITUT OYO ini cocok untuk siapa saja yang ingin melakukan pengukuran benda kerja yang memiliki tingkat presisi tinggi.
Benefit :
* The caliper may come with ball contact points suitable for measuring external wall thickness of tubes, chisel contact points suitable for measuring flat surfaces, or an interchangeable set of contact points
* The calipers jaws are spring loaded, which provide the point contacts with constant measuring pressure
Features :
* One fixed and one moving arm with adjustable carbide spherical contact points
* The deflection of the moving contact point is transmitted to the clear dial indicator, the results can be read directly
* For quick measuring of external grooves, wall thicknesses, plates, pipe wall thickness, foils etc.
Deskripsi :
* Range : 0-20 MM
* Display : MM
* Measuring Span: 20 MM
* Measuring Range: 0 - 20 MM
* Range of indicatio: 0 - 20.5 MM
* Scale interval: 0.01 MM
* Max. permissible errors: 0.03 MM
* Repeatability limit: 0.01 MM
* Measuring force: 1.1 N
* Measuring force Max.: 1.6 N
* Type of measuring contact movable Dia.: 1.5 MM
* Measuring contact movable: 24.7 MM
* Type of measuring contact fixed Dia.: 1.5 MM
* Measuring contact fixed: 24.6 MM
* Measuring contact thickness max. Dia.: 4 MM
* Measuring depth max.: 85 MM
* Reference temperature 20 Deg. C
* Operating temperature: 10 - 30 Deg. C
* Storage temperature: -10 - 50 Deg. C
* Protection class IP65
* Type : Dial Caliper
* Dimension_unit : 310 X 171 X 51 MM
DIAL CALIPER GAGE 20/.01MM 209-404 MITUTOYO MT0002374 Include PPN
